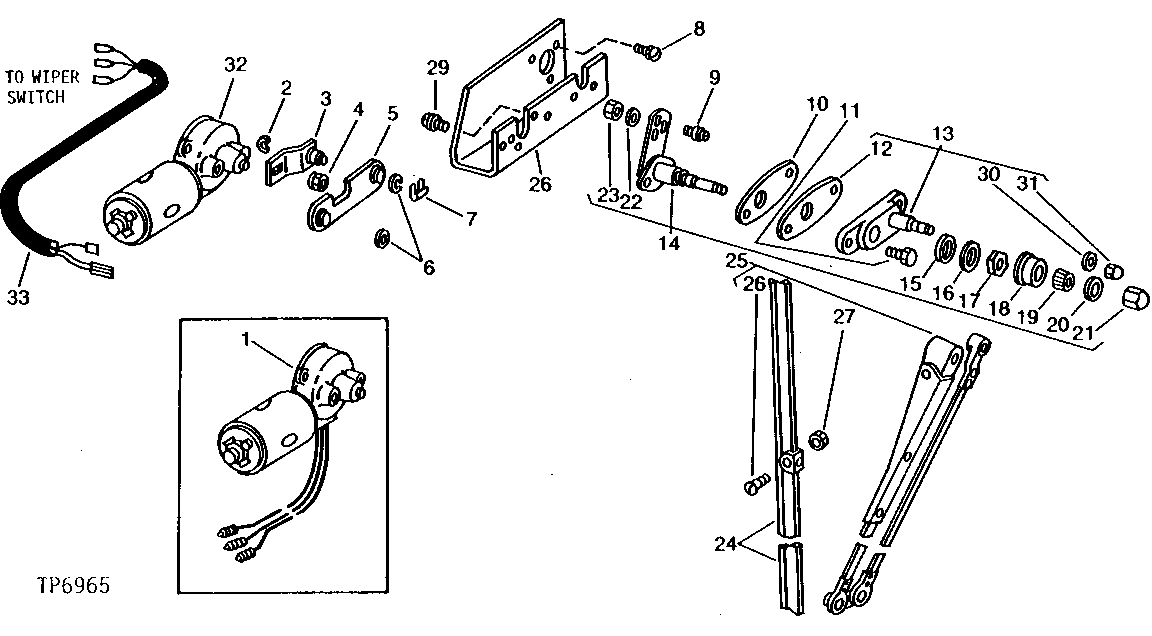

FRONT WINDSHIELD WIPER (SERIAL NO. 006016- ) [02F03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE13281	1	GEAR	(SUB FOR AR75606) (USE WITH AT38992)
1	-	1	Part 1	(A) (WITH WIRE) ( AT38992 AND AT115599 NO LONGER AVAILABLE) (SUB AT115600, AT135811 AND AT141987)
2	U46508	1	WASHER	(A)
3	AT165574	1	ARM	(SUB FOR AU43856) SLOTTED FOR USE WITH WIPER MOTOR WITH SLOTTED SHAFT (ILLUSTRATED)
3	AT141987	1	Arm	SPLINED - FOR USE WITH AT115600 WIPER MOTOR WHICH HAS SPLINED SHAFT (NOT ILLUSTRATED)
4	AU43857	1	LOCK NUT	(A)
5	AU43853	1	Link	(A)
6	T32255	2	Shim	(A)
7	U46506	1	Clip	(A)
8	AU43854	3	SCREW WITH WASHER	(A)
9	U46507	1	PIN	(A)
10	T114940	1	SPACER	(SUB FOR T43175)
11	19H3292	1	Cap Screw	1/4" X 1-5/8"
12	-	1	Part 14	( U46517 NO LONGER AVAILABLE)
13	RE36215	1	Plate	(SUB FOR AR78596) WIPER ADAPTER
14	AT58147	1	SHAFT	(A)
15	R63666	1	Washer	(A) LEATHER
16	R63667	1	Washer	(A)
17	R63668	1	Nut	(A)
18	R63669	1	Cap	(A) RAINSHIELD
19	R63670	1	Weld Nut	(A)
20	12H310	1	Lock Washer	(A) 3/8"
21	R63671	1	Nut	(A)
22	12H297	1	Lock Washer	(A) 1/4"
23	14H649	1	Nut	(A) 1/4"
24	AU42026	1	WIPER BLADE	-
25	AU42025	1	WIPER ARM	WIPER
26	T35441	1	Screw	-
27	T35440	1	Lock Nut	-
28	AT103999	1	BRACKET	(A) (SUB FOR U46515)
29	21H1127	2	SCREW	(A) 0.190" X 7/16", (SUB FOR AU43855) (ALSO ORDER 12H295)
29	12H295	2	Lock Washer	0.190"
30	-	1	Part 33	(SUB RE36215)
31	-	1	Part 34	(SUB RE36215)
32	AT115600	1	Wiper Motor	(WITHOUT WIRE) (SUB FOR AT67132 AND AT115599) (ALSO ORDER AT135811)
33	AT135811	1	Wiring Harness	(USE WITH AT115600 OR AT115599)
..	AT58146	1	MOTOR	-

FRONT WINDSHIELD WIPER (SERIAL NO. 006016- ) [02F03]
