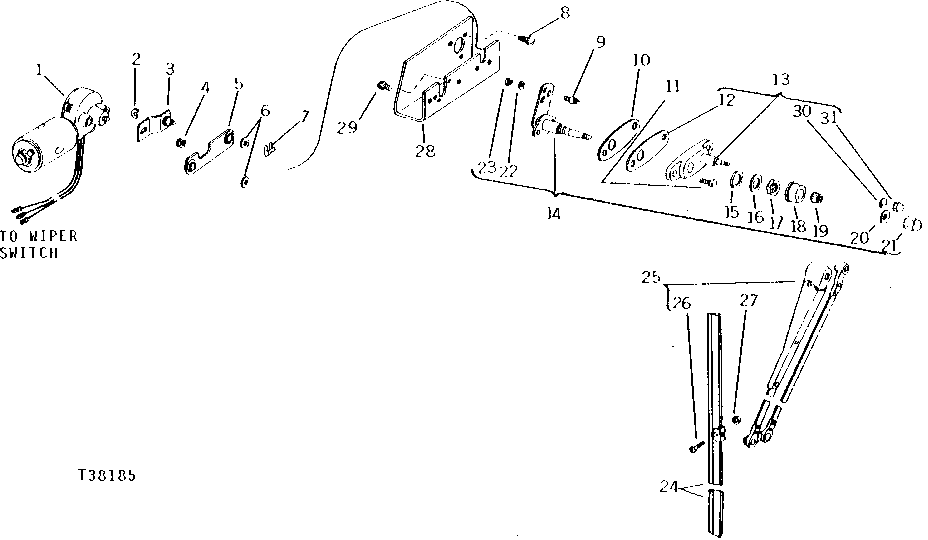

FRONT WINDSHIELD WIPER (SERIAL NO. -006015) [02F01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE13281	1	GEAR	(SUB FOR AR75606)
1	-	1	Part 1	(A) ( AT38992 AND AT115599 NO LONGER AVAILABLE) (SUB AT115600, AT135811 AND AT141987)
2	U46508	1	WASHER	(A)
3	AT165574	1	ARM	(SUB FOR AU43856) SLOTTED FOR USE WITH WIPER MOTOR WITH SLOTTED SHAFT (ILLUSTRATED)
3	AT141987	1	Arm	SPLINED - FOR USE WITH AT115600 WIPER MOTOR WHICH HAS SPLINED SHAFT (NOT ILLUSTRATED)
4	AU43857	1	LOCK NUT	(A)
5	AU43853	1	Link	(A)
6	T32255	2	Shim	(A)
7	U46506	1	Clip	(A)
8	AU43854	3	SCREW WITH WASHER	(A)
9	U46507	1	PIN	(A)
10	T114940	1	SPACER	(SUB FOR T43175)
11	19H3292	1	Cap Screw	1/4" X 1-5/8"
12	-	1	Part 14	( U46517 NO LONGER AVAILABLE)
13	RE36215	1	Plate	WIPER ADAPTER, (SUB FOR AU42023)
14	-	1	Part 16	(A) ( AT29857 NO LONGER AVAILABLE) (SUB AT58147)
15	-	1	Part 17	(A) LEATHER ( U46509 NO LONGER AVAILABLE)
16	24H1362	1	Washer	(A) 41/64" X 1" X 0.075", (SUB FOR U46510)
17	-	1	Part 19	(A) ( U46511 NO LONGER AVAILABLE)
18	-	1	Part 20	(A) RAINSHIELD ( U46512 NO LONGER AVAILABLE)
19	-	1	Part 21	(A) ( U46513 NO LONGER AVAILABLE)
20	12H291	1	Lock Washer	(A) 5/16"
21	-	1	Part 23	(A) ( U46514 NO LONGER AVAILABLE)
22	12H297	1	Lock Washer	(A) 1/4"
23	14H649	1	Nut	(A) 1/4"
24	AU42026	1	WIPER BLADE	-
25	AU42025	1	WIPER ARM	WIPER
26	T35441	1	Screw	-
27	T35440	1	Lock Nut	-
28	AT103999	1	BRACKET	(A) (SUB FOR U46515)
29	21H1127	2	SCREW	(A) 0.190" X 7/16", (SUB FOR AU43855) (ALSO ORDER 12H295)
29	12H295	2	Lock Washer	0.190"
30	-	1	Part 33	(SUB RE36215)
31	-	1	Part 34	(SUB RE36215)
..	AT41562	1	MOTOR	(SUB AT58146 AND RE36215)

FRONT WINDSHIELD WIPER (SERIAL NO. -006015) [02F01]
