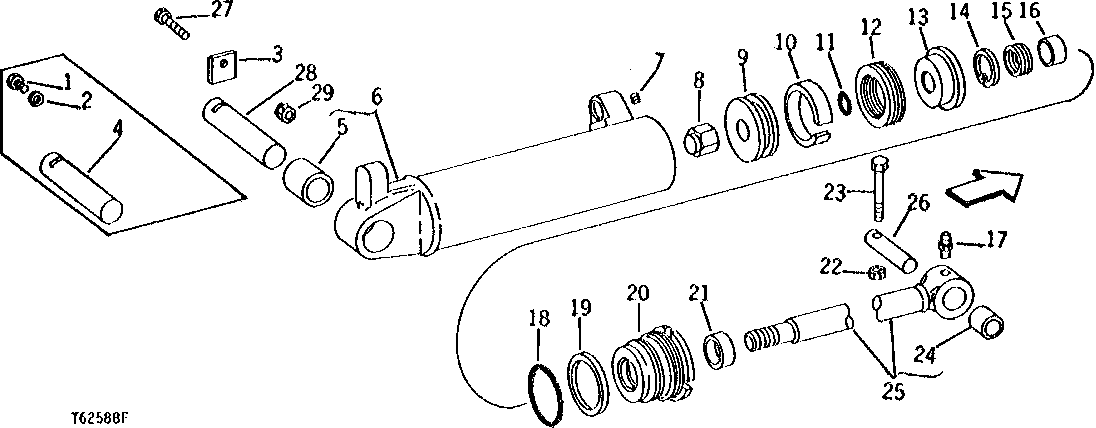

FRONT-MOUNTED EQUIPMENT CYLINDER [03B19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2284	1	Cap Screw	3/8" X 7/8"
2	12H304	1	Lock Washer	3/8"
3	T42088	1	STRAP	-
4	T42085	1	PIN FASTENER	-
5	U14111	2	BUSHING	(B)
6	AT41059	1	HYDRAULIC CYLINDER BARREL	(B)
7	22H842	1	SET SCREW	(B) 1/4" X 5/16"
8	L2235CU	1	LOCK NUT	(B)
9	T42083	1	PISTON	(B)
10	U44508	1	WEAR RING	(A) (B)
11	R29463	1	O-Ring	(A) (B)
12	T37380	1	PACKING	(A) (B) (SUB RE11910, R91490 AND (2) R78389, THIS APPLICATION)
13	-	1	Part 13	(B) ( T42084 NO LONGER AVAILABLE, SUB RE11910, R91490 AND R78389)
14	N10193	1	SNAP RING	(B)
15	R76801	1	PACKING	(A) (B) (SUB FOR T35850)
16	U41578	1	WEAR RING	(A) (B)
17	JD7759	1	Lubrication Fitting	(B) STRAIGHT, 1/8"
18	T38489	1	O-RING	(A) (B)
19	R79177	1	BACK-UP RING	(A) (B) (SUB FOR T38490, THIS APPLICATION)
20	R80949	1	HYDR. CYLINDER ROD GUIDE	(B) (SUB FOR T42082)
21	U42734	1	SEAL	(A) (B)
22	T11234	1	Lock Nut	-
23	19H2700	1	Cap Screw	3/8" X 4-1/2"
24	T42080	1	BUSHING	(B)
25	AT41061	1	PISTON	(B)
26	T42086	1	PIN FASTENER	-
27	19H2007	1	Cap Screw	3/8" X 4-1/2"
28	T48347	1	PIN	-
29	T11234	1	Lock Nut	-
..	RE18743	1	HYDRAULIC CYLINDER KIT	(SUB FOR AT52708, AR96525 AND AR105385) (SUB RE30817, RE15905 AND R91490, THIS APPLICATION)
..	AT41058	1	CYLINDER	( AT41058 NO LONGER AVAILABLE, SUB RE30869)
