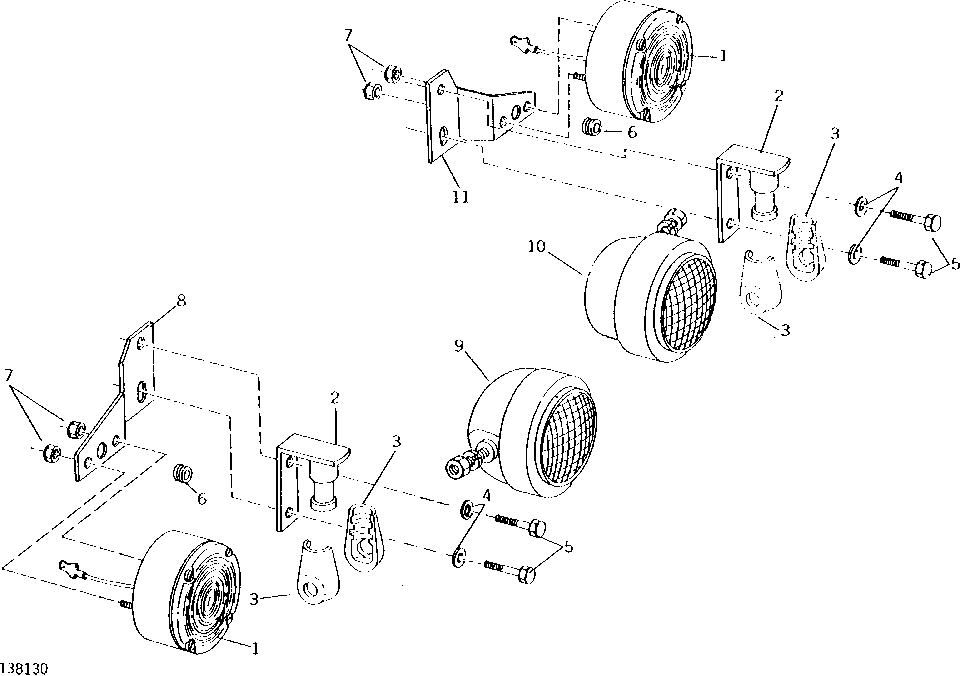

DRIVE AND FRONT TURN SIGNAL LIGHTS (WITH CAB) [02C13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT42027	2	TURN SIGNAL LAMP	TURN SIGNAL
2	AT42031	2	BRACKET	DRIVE LAMP
3	R27460	4	ELEC. CONNECTOR ACCESSORY	-
4	12H304	4	Lock Washer	3/8"
5	19H2676	4	Cap Screw	3/8" X 1"
6	B30667	2	Grommet	-
7	14H786	4	Nut	1/4"
8	T43075	1	BRACKET	R.H. TURN SIGNAL
9	AT172964	1	HEADLIGHT	(SUB FOR AT42029) DRIVE, R.H. (WITH TURN SIGNAL LIGHTS) INCLUDES CONNECTOR KIT
9	AT172965	1	HEADLIGHT	(SUB FOR AT42030) DRIVE, R.H. (WITHOUT TURN SIGNAL LIGHTS) INCLUDES CONNECTOR KIT
10	AT172965	1	HEADLIGHT	(SUB FOR AT42030) DRIVE, L.H. (FOR PARTS SEE PAGE 1673-2) (WITH TURN SIGNAL LIGHTS) INCLUDES CONNECTOR KIT
10	AT172964	1	HEADLIGHT	(SUB FOR AT42029) DRIVE, L.H. (WITHOUT TURN SIGNAL LIGHTS) INCLUDES CONNECTOR KIT
11	T43074	1	BRACKET	L.H. TURN SIGNAL

DRIVE AND FRONT TURN SIGNAL LIGHTS (WITH CAB) [02C13]

Нет текстового описания
