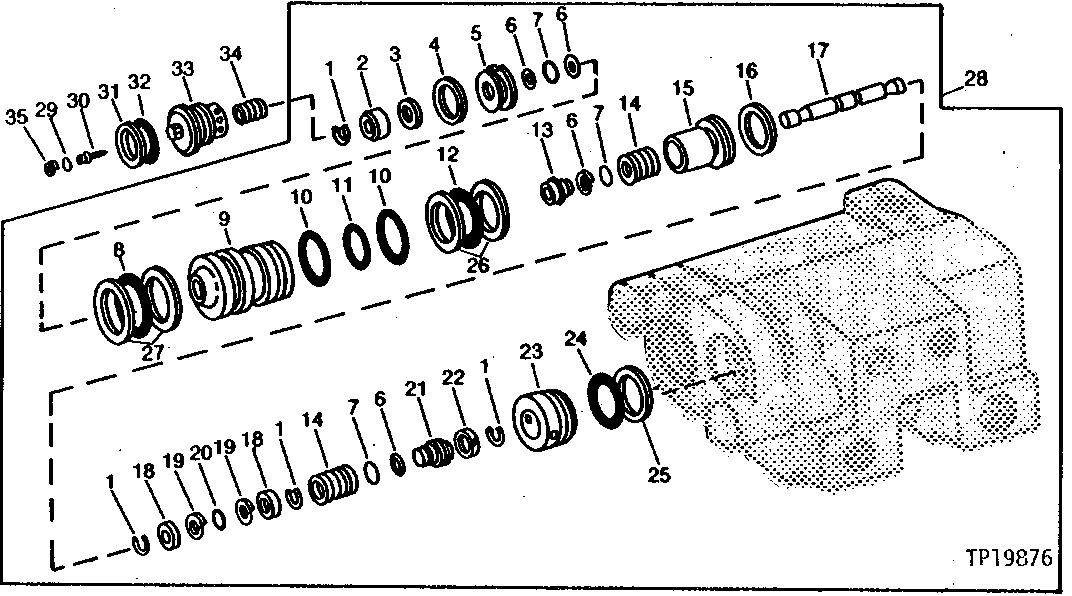

DELUXE POPPET ASSEMBLY (FRONT-MOUNTED EQUIPMENT, RIPPER AND FLOAT VALVE) [03B24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T56343	4	SNAP RING	(A)
1	T48322	4	SNAP RING	(A) (SUB T56343)
2	T42411	1	RETAINER	-
3	T42422	1	SHIM	(A) 0.51 MM (.020")
4	T42420	1	RING	-
5	T42409	1	POPPET	-
6	R26551	4	BACK-UP RING	(A)
7	R394R	3	O-Ring	(A)
8	R61015	1	O-Ring	(A) (SUB FOR T42418 AND T59922) (SUB FOR R31378, THIS APPLICATION) (ALSO ORDER (2) R78392)
9	T52755	1	CYLINDER LINER	(SUB FOR T42428)
10	R35473	2	Back-Up Ring	(A)
11	R29463	1	O-Ring	(A)
12	R81906	1	O-Ring	(A) (SUB FOR T42416) (SUB FOR T11220, THIS APPLICATION) (ALSO ORDER (2) R81189)
13	T48596	1	POPPET	-
14	T48598	2	SPRING	-
15	T42430	1	SLEEVE	-
16	T52754	1	RING	(SUB FOR T42429)
17	T42408	1	SHAFT	-
18	T42417	2	RETAINER	-
19	-	2	Part 20	(A) ( T42406 NO LONGER AVAILABLE) (SUB RE30357)
20	-	1	Part 21	(A) ( T42407 NO LONGER AVAILABLE) (SUB RE30357)
21	T48597	1	POPPET	-
22	T59720	1	RING	(SUB FOR T42415)
23	R73261	1	SEAT	(SUB FOR T56309)
24	R30319	1	O-Ring	(K) (SUB FOR T42414) (ALSO ORDER R81188)
25	R81188	1	BACK-UP RING	(K) (SUB FOR T60654, THIS APPLICATION) (USED WITH R30319)
26	R81189	2	BACK-UP RING	(K) (SUB FOR U41971, THIS APPLICATION) (USED WITH R81906 AND R61015)
27	R78392	2	BACK-UP RING	(K)
28	AT54094	1	VALVE	(SUB FOR AT41439) DELUXE WITH ANTI-CAVITATION
29	T42426	2	O-Ring	(K)
30	T42425	2	SCREW	-
31	R75790	1	BACK-UP RING	(K) (USED WITH B3690R)
32	B3690R	2	O-Ring	(K) (SUB FOR T42421, THIS APPLICATION) (ALSO ORDER R75790)
33	R72873	2	FITTING	(SUB FOR AT41438 AND AR91676)
34	T42410	2	Spring	-
35	T42427	2	BACK-UP RING	(K)
..	-	1	Part 37	( AT47942 NO LONGER AVAILABLE)

DELUXE POPPET ASSEMBLY (FRONT-MOUNTED EQUIPMENT, RIPPER AND FLOAT VALVE) [03B24]

Нет текстового описания
