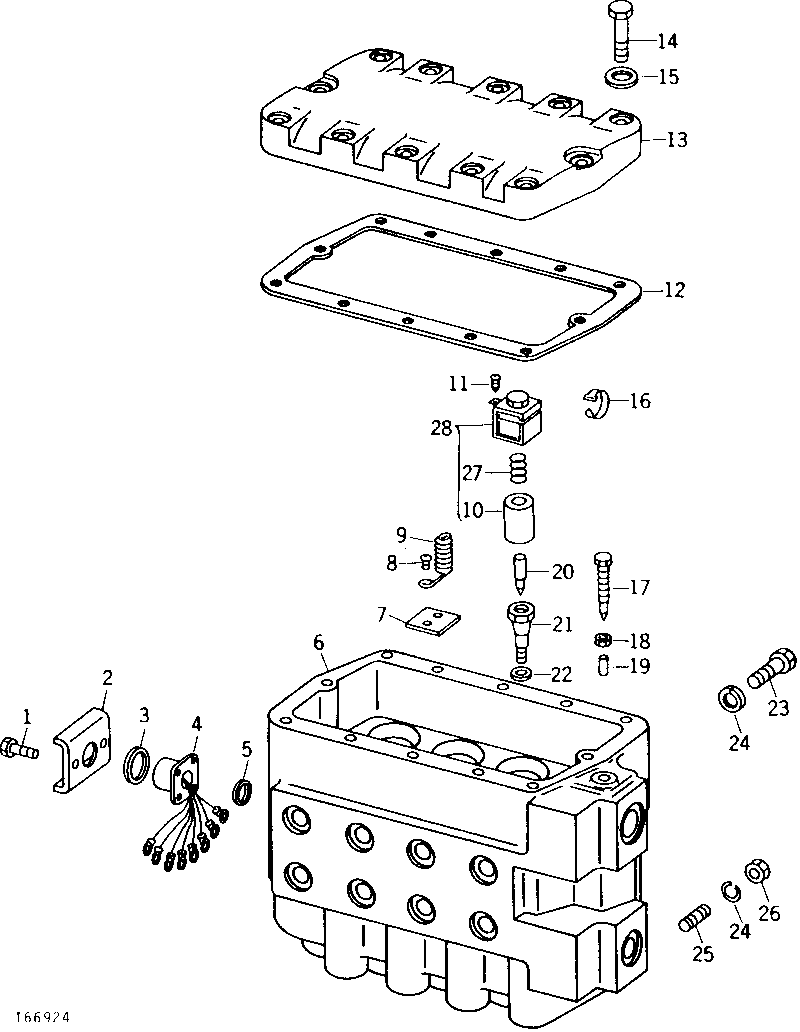

BLADE CONTROL VALVE HOUSING AND COVER [02J13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1648	2	Cap Screw	3/8" X 3/4"
2	-	1	Part 2	( T42398 NO LONGER AVAILABLE)
3	24H1226	1	Washer	1/2" X 1-1/4" X 0.083", (SUB FOR 24H1474)
4	AT51694	1	WIRING HARNESS	(SUB FOR AT41440)
5	T42399	1	BACK-UP RING	-
6	T56478	1	HOUSING	SOLENOID VALVE, (SUB FOR T54173)
7	T42401	4	PAD	NYLON
8	T42402	8	SCREW	NYLON
9	T42400	8	SPRING	-
10	-	1	Part 10	( R69560 NO LONGER AVAILABLE)
11	37M7033	4	Screw	(SUB FOR T42403 OR M45349)
12	T42447	1	GASKET	-
13	R66847	1	COVER	VALVE, (SUB FOR T42448)
14	19H1990	12	Cap Screw	1/2" X 2-1/4"
15	T20168	12	Washer	-
16	AT41441	4	TIE BAND	-
17	T48451	1	BOLT	-
18	T48450	1	NUT	-
19	R42883	1	NEEDLE ROLLER	(SUB FOR M1817T)
20	T42397	8	PIN FASTENER	SOLENOID VALVE
21	R73431	8	VALVE SEAT INSERT	SOLENOID VALVE, (SUB FOR T42396)
22	R30903	8	O-Ring	(K)
23	19H2472	2	Cap Screw	1/2" X 1"
24	T20168	3	Washer	-
25	R32101	1	STUD	-
26	14H1040	1	Nut	1/2"
27	-	1	Part 27	( R69561 NO LONGER AVAILABLE)
28	AR89611	8	SOLENOID	(SUB FOR AT41435)

BLADE CONTROL VALVE HOUSING AND COVER [02J13]
