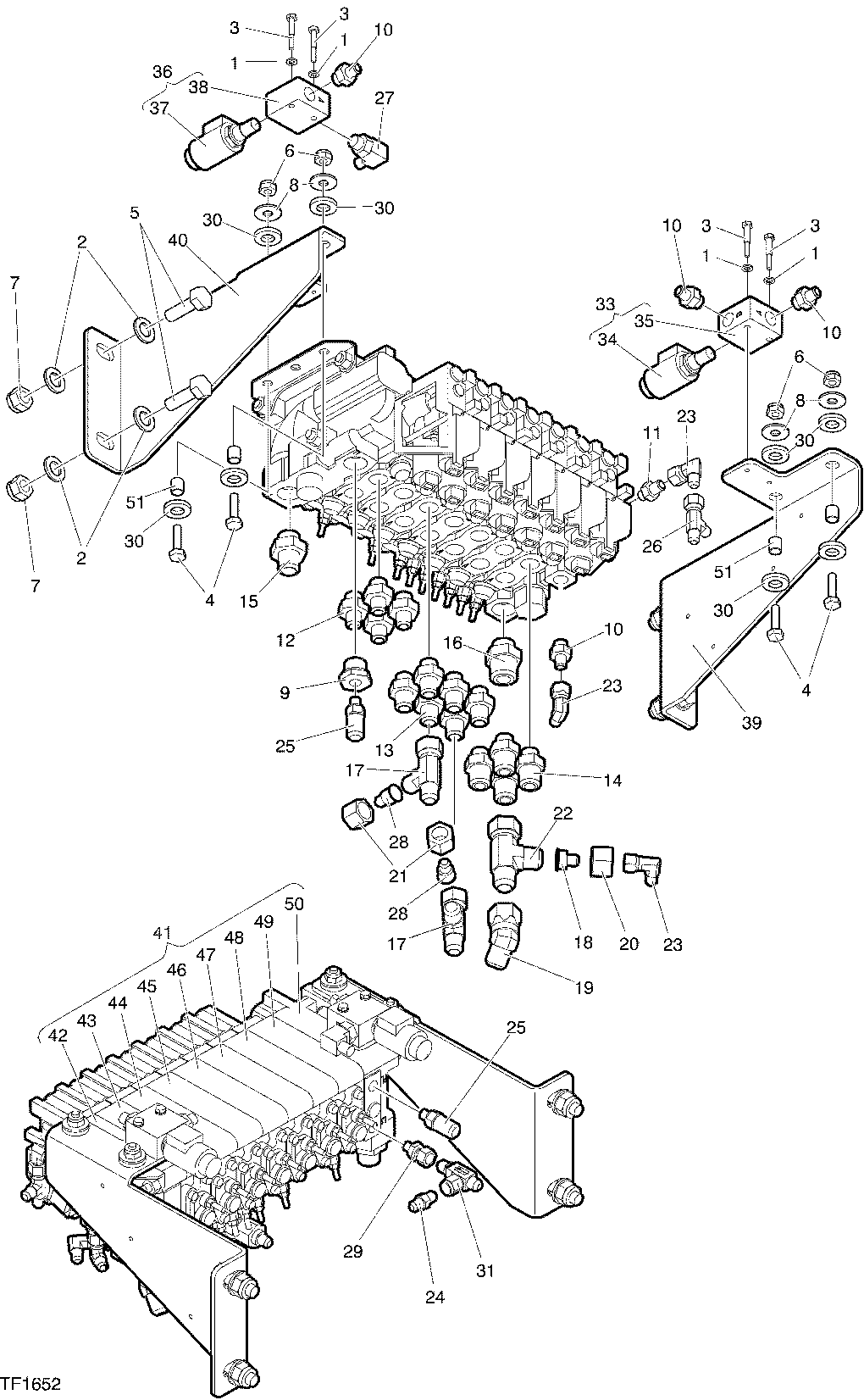

HYDRAULIC SYSTEM LOADER CONTROL VALVE F056686 2410 2 TF1652 [TF1652]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F003337	4	WASHER	-
2	F003341	8	WASHER	-
3	F003469	4	SCREW	-
4	F003536	4	SCREW	-
5	F003554	4	SCREW	-
6	F003588	4	LOCK NUT	-
7	F003591	4	LOCK NUT	-
8	F003723	4	WASHER	-
9	F004278	1	NIPPLE	-
10	F005055	4	NIPPLE	-
11	F005057	1	Fitting	-
12	F005059	6	Fitting	-
13	F005061	6	Fitting	-
14	F005062	4	Fitting	-
15	F005063	1	NIPPLE	-
16	F005065	1	NIPPLE	-
17	F005074	2	Tee Fitting	-
18	F005078	1	Reducer	-
19	F005089	1	ELBOW NIPPLE	-
20	F005092	1	Sleeve Fitting	-
21	F010099	2	Nut	-
22	F012532	1	Tee Fitting	-
23	F022417	3	Elbow Fitting	-
24	F023014	1	Fitting	-
25	F023426	2	Fitting	-
26	F023535	1	Tee Fitting	-
27	F024402	1	Elbow Fitting	-
28	F024605	2	Fitting	-
29	F024875	1	CONNECTION	-
30	F044704	8	WASHER	-
31	F048279	1	REVERSING VALVE	-
33	F058723	1	CONTROL VALVE	-
34	F017786	1	VALVE	-
35	F058725	1	HOUSING	-
36	F058724	1	CONTROL VALVE	-
37	F015362	1	VALVE	-
38	F058725	1	HOUSING	-
39	F613233	1	BRACKET	-
40	F613232	1	BRACKET	-
41	F058319	1	VALVE	-
42	F061495	1	VALVE BLOCK	-
43	F061494	1	VALVE BLOCK	-
44	F061493	1	VALVE BLOCK	-
45	F061492	1	VALVE BLOCK	-
46	F061491	1	VALVE BLOCK	-
47	F061490	1	VALVE BLOCK	-
48	F061489	1	VALVE BLOCK	-
49	F061488	1	VALVE BLOCK	-
50	F061487	1	VALVE BLOCK	-
51	F052102	4	SLEEVE	-

HYDRAULIC SYSTEM LOADER CONTROL VALVE F056686 2410 2 TF1652 [TF1652]
