Integrated Grade Control Hydraulic Control Valve Installation

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T217747	1	Plate	-
2	24M7239	4	Washer	10.700 X 21 X 2.500 mm
3	19M7938	3	Cap Screw	M10 X 20
4	AT387786	1	Control Valve	Components Listed On Separate Pages, SUB FOR AT338268
4	AT394946	1	Pump/Valve Controller	Lift, SUB FOR AT387787,AT359191
4	AT394950	1	Pump/Valve Controller	Tilt, SUB FOR AT387789,AT359193
4	AT394949	1	Pump/Valve Controller	Steering, SUB FOR AT387788,AT359194
4	AT392829	1	Valve Spool	-
5	38H1164	2	Adapter Fitting	-
6	T76938	2	O-Ring	-
7	R29936	1	O-Ring	-
8	38H1160	1	Adapter Fitting	-
9	T77613	1	O-Ring	-
10	R26448	1	O-Ring	-
11	38H1004	1	Elbow Fitting	-
12	R26448	1	O-Ring	-
13	T77613	1	O-Ring	-
14	38H1162	3	Adapter Fitting	-
15	T77932	3	O-Ring	-
16	R26906	3	O-Ring	-
17	38H1172	5	Adapter Fitting	-
18	T77613	5	O-Ring	-
19	R26906	5	O-Ring	-
20	38H1098	2	Elbow Fitting	-
21	T76938	2	O-Ring	-
22	38H1030	3	Tee Fitting	-
23	T77613	6	O-Ring	-
24	38H1032	2	Tee Fitting	-
25	T77932	4	O-Ring	-
26	24M7238	6	Washer	8.700 X 17 X 2 mm
27	38H1096	2	Elbow Fitting	-
28	T77932	2	O-Ring	-
29	38H1174	1	Adapter Fitting	-
30	T77857	1	O-Ring	-
31	R26906	1	O-Ring	-
32	38H1031	1	Tee Fitting	-
33	T77857	2	O-Ring	-
34	19H2664	6	Cap Screw	5/16" X 3/4"
35	19M7402	1	Cap Screw	M10 X 25
36	38H1167	1	Adapter Fitting	-
37	T77814	1	O-Ring	-
38	R26286	1	O-Ring	-

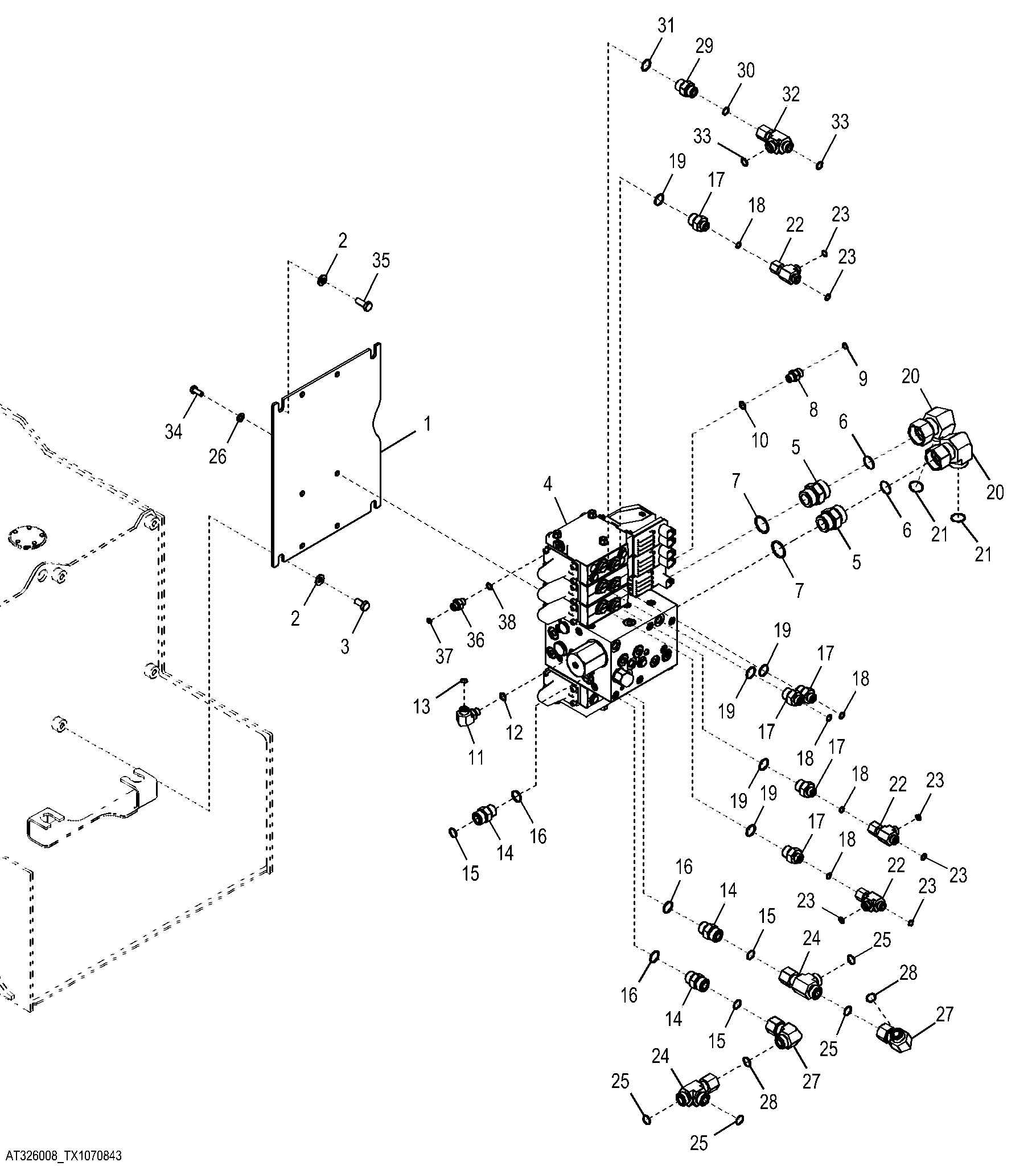

Integrated Grade Control Hydraulic Control Valve Installation
