Integrated Grade Control Hydraulic Control Valve Components

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T256275	1	Cover	-
2	-	1	Part 2	-
3	T289215	1	Valve Spool	Steering
4	AT368169	1	Actuator	-
5	AT324969	2	Pressure Relief Valve	-
8	AT368176	1	Flow Control Hyd. Valve	Center Section Components Listed On Separate Pages
9	AT341281	2	Housing	-
10	AT368170	3	Actuator	-
11	AT342187	1	Housing	-
11	AT329127	1	Check Valve	-
11	T77932	1	O-Ring	-
11	AT341137	1	Pressure Relief Valve	-
11	RE72618	1	Fitting Plug	-
11	T74550	1	O-Ring	-
12	T256276	1	Cover	-
13	AT368168	1	Bolt Kit	-
14	AT324975	3	Elec. Connector Cavity Plug	-
15	AT355118	4	Seal Kit	-
16	AT324966	4	Seal Kit	-
17	AT394949	1	Pump/Valve Controller	Steering
18	AT368172	1	Pump/Valve Controller	Angle
19	AT394950	1	Pump/Valve Controller	Tilt
20	AT394946	1	Pump/Valve Controller	Lift
21	KV23074	2	Pressure Relief Valve	-
22	AT341144	1	Valve Spool	Angle
22	AT335932	1	Spring Assembly	-
23	AT341145	1	Valve Spool	Tilt
23	AT335932	1	Spring Assembly	-
24	AT341146	1	Valve Spool	Lift
24	AT341143	1	Spring Assembly	-
25	AT392829	1	Valve Spool	Priority Valve
25	AT335932	1	Spring Assembly	-
26	AT368167	1	Bolt Kit	-
27	AT368168	1	Bolt Kit	-

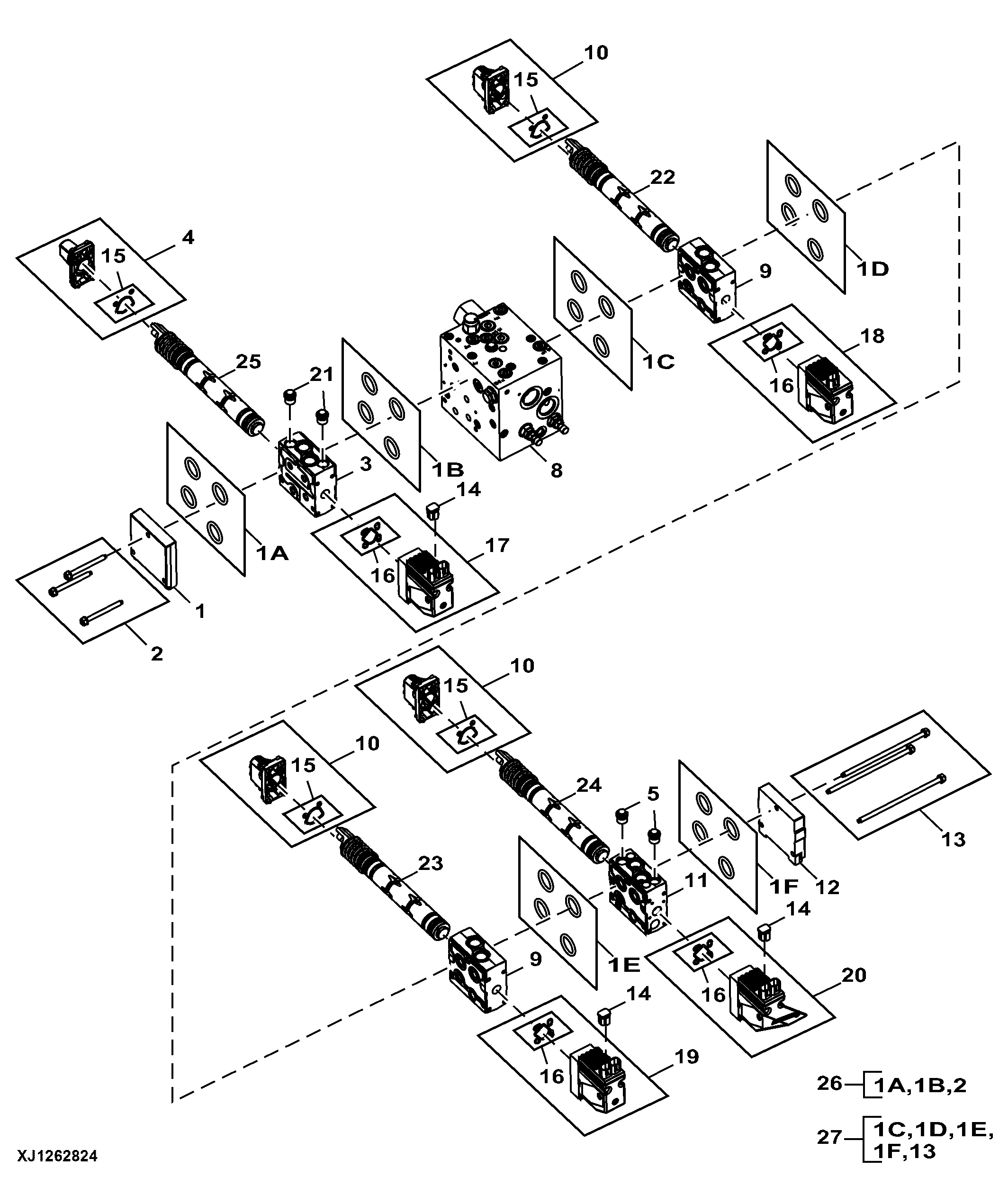

Integrated Grade Control Hydraulic Control Valve Components
