Hydrostatic / Transmission Control and Hydrostatic Filter Hoses (Front)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H1294	1	Tee Fitting	-
2	T76938	3	O-Ring	-
3	24H1520	4	Washer	1-15/32" X 2" X 0.105"
4	T78715	2	Nut	-
5	H122182	8	Flange Fitting	-
6	24M7240	16	Washer	13 X 25 X 3 mm
7	19H2563	16	Cap Screw	7/16" X 1-3/4"
8	T78313	4	O-Ring	-
9	AT131685	4	Flange Fitting	SUB FOR T72217
10	24M7240	8	Washer	13 X 25 X 3 mm
11	19H2735	8	Cap Screw	1/2" X 2"
12	T78393	2	O-Ring	-
13	AT371541	1	Hydraulic Hose	-
14	T230487	4	Elbow Fitting	-
15	T76938	4	O-Ring	-
16	T263327	2	Block Clamp	-
17	T258589	2	Bracket	-
18	AT370124	1	Hydraulic Hose	-
19	AT370124	1	Hydraulic Hose	-
20	38H1464	1	Tee Fitting	-
21	T76938	3	O-Ring	-
22	AT371763	1	Hydraulic Hose	-
23	AT372180	1	Hydraulic Hose	-
24	AT372178	1	Hydraulic Hose	-
25	19M7864	4	Screw	M8 X 12
26	H224073	2	Tie Band	-
27	38H1622	5	Adapter Fitting	-
28	T76938	5	O-Ring	-
29	AT384182	1	Hydraulic Hose	-
30	AT384183	1	Hydraulic Hose	-
31	AT381905	1	Hydraulic Hose	SUB FOR AT377170
32	AT381903	1	Hydraulic Hose	SUB FOR AT377169
33	AT381906	1	Oil Tube	ALSO ORDER 38H1622 AND T76938; SUB FOR AT371433
34	AT381904	1	Oil Tube	ALSO ORDER 38H1622 AND T76938; SUB FOR AT371434
35	AT397397	1	Oil Tube	ALSO ORDER 38H1622 AND T76938; SUB FOR AT381902
36	T208353	3	Pad	-
37	AT398138	1	Oil Tube	ALSO ORDER 38H1622 AND T76938; SUB FOR AT381907
38	AN209168	8	Swivel	-
39	H224073	16	Tie Band	-

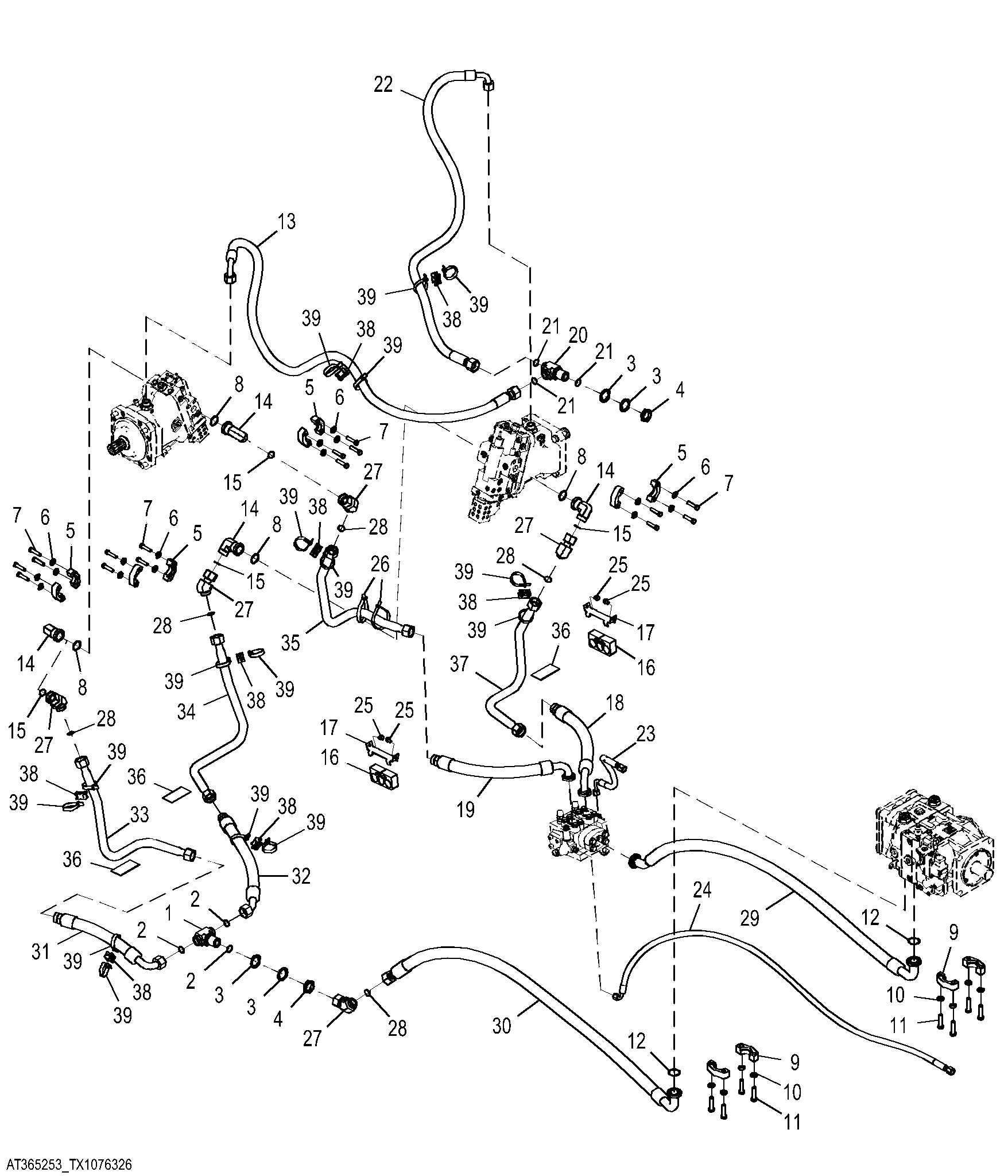

Hydrostatic / Transmission Control and Hydrostatic Filter Hoses (Front)
