Hydrostatic Integrated Control Valve (Right And Rear)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7789	3	Screw	M12 X 30
2	-	3	Part 2	(24M7145 NA)
4	R26375	4	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
5	T77857	5	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
6	38H1006	2	Elbow Fitting	-
7	R26906	2	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
8	T77932	2	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
9	38H1020	1	Tee Fitting	-
10	R29936	4	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
11	T76938	4	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
13	38H1095	2	Elbow Fitting	-
14	38H1098	1	Elbow Fitting	-
16	38H1164	1	Adapter Fitting	-
17	38H1213	2	Adapter Fitting	-
18	38H1309	1	Adapter Fitting	-
19	R28782	1	O-Ring	8.915 X 1.829 mm (0.351" X 0.072")
20	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
21	AT430039	2	Pressure Sensor	SUB FOR AT355360
21	R28782	1	O-Ring	8.915 X 1.829 mm (0.351" X 0.072")
24	AT305595	1	Pressure Switch	-
25	12H295	1	Lock Washer	0.190"
26	14H778	2	Nut	0.190"
27	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
28	AT307211	1	Pressure Relief Valve	-
28	AT327149	1	Seal Kit	-
31	AT307212	1	Pressure Relief Valve	-
31	AT327149	1	Seal Kit	-
31	T187815	1	O-Ring	-
48	AT317089	1	Valve	-
48	AT327148	1	Seal Kit	-
54	AT318160	1	Oil Filter	-
58	AT323730	1	Valve	-
58	AT327153	1	Seal Kit	-
61	AT326989	1	Manifold	-
65	AT63271	1	Fitting	-
66	R77175	1	Cover	-
68	38H1071	1	Adapter Fitting	-
69	RE60701	1	Diagnostic Coupling	-
70	T105368	16	Fitting Plug	-
80	AT366888	1	Valve	-

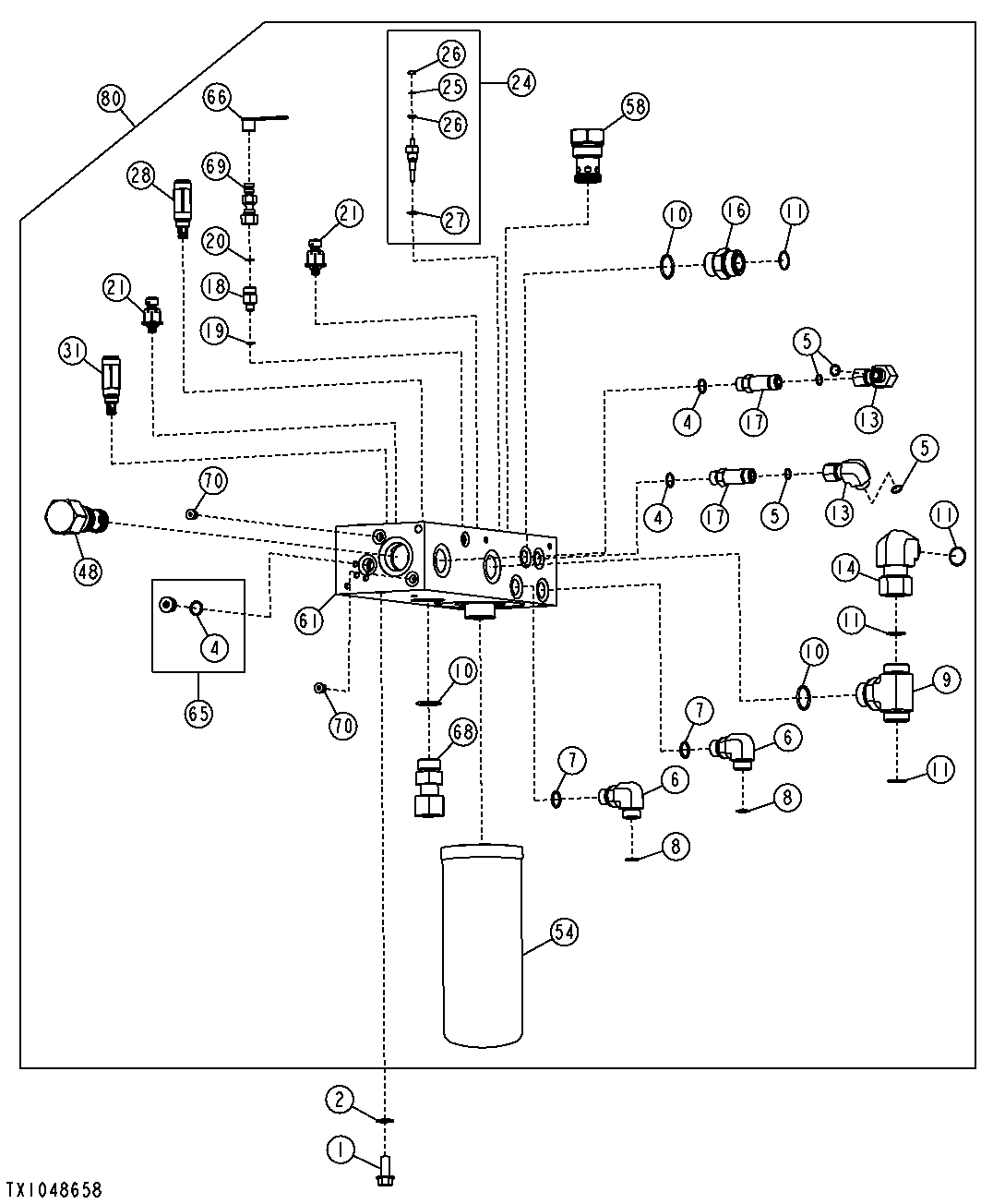

Hydrostatic Integrated Control Valve (Right And Rear)

Нет текстового описания
