Hydrostatic Integrated Control Valve (Front And Left)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT366888	1	Valve	-
2	AT326989	1	Manifold	-
3	AT486606	1	Valve	Neutral Charge Relief Valve
3	AT323597	1	Valve	Neutral Charge Relief Valve, ORDER AT486606
4	-	1	Part 5	Park Brake Switch, (ORDER AT308123, AT423342 AND T225292)
5	AT308123	1	Solenoid Valve	-
6	AT423342	1	Solenoid Valve Coil	SUB FOR AT333813
7	T225292	1	Nut	-
8	-	1	Part 9	Park Brake Switch, (ORDER AT308122, AT423342 AND T225293)
9	AT308122	1	Solenoid Valve	-
10	AT423342	1	Solenoid Valve Coil	SUB FOR AT333813
11	T225293	1	Nut	-
12	AT317092	1	Valve	Hydraulic Oil Reservoir Bypass Valve
13	AT474166	1	Pump	Hand Pump, SUB FOR AT365803
13	AT327146	1	Seal Kit	-
14	AT310789	1	Valve	-
15	AT310790	1	Valve	-
16	AT307214	1	Valve	Ball Shuttle Valve
17	51M7041	1	O-Ring	11.300 X 2.200 mm
18	RE65836	1	Coolant Temperature Sensor	-
19	T58477	2	Fitting	-
20	T105368	5	Fitting Plug	-
21	AT317088	1	Valve	Charge Oil Filter Bypass Valve
22	AT313500	1	Valve	-
23	AT423339	1	Solenoid Valve Coil	SUB FOR AT333809
24	T225293	1	Nut	-
25	AT303799	1	Valve	Oil Cooler Bypass Solenoid
26	T204128	2	Screw	-
27	AT49216	1	Fitting Plug	-
29	T70177	1	O-Ring	-
30	38H1037	1	Elbow Fitting	-
31	R29936	1	O-Ring	-
32	T76938	1	O-Ring	-
33	38H1005	1	Elbow Fitting	-
34	R26375	1	O-Ring	-
35	T77857	1	O-Ring	-
36	38H1585	1	Elbow Fitting	-
36	38H1162	1	Adapter Fitting	Straight Fitting
37	T77932	1	O-Ring	-
38	R26906	1	O-Ring	-
39	38H1098	1	Elbow Fitting	-
40	T76938	1	O-Ring	-

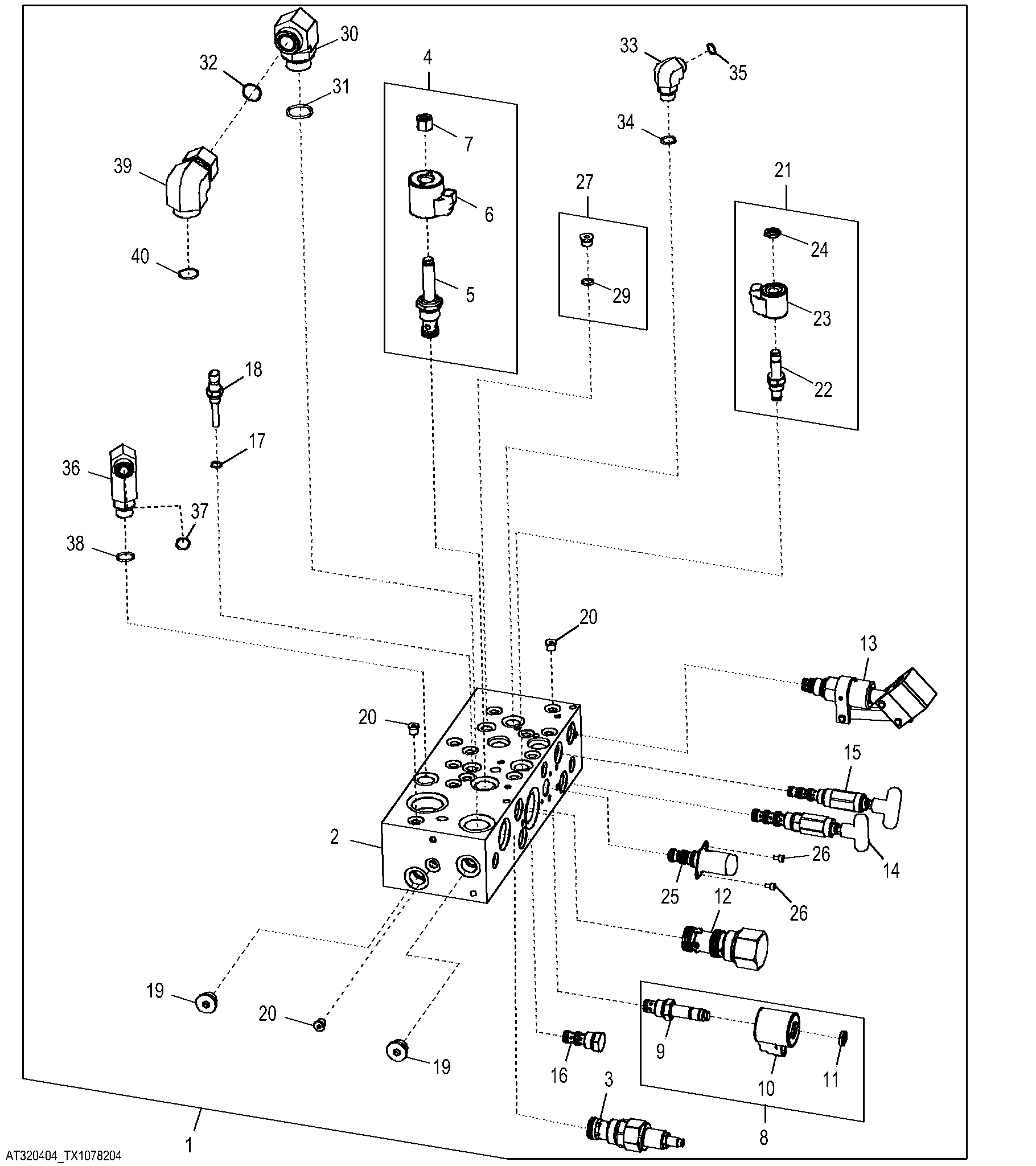

Hydrostatic Integrated Control Valve (Front And Left)

Нет текстового описания
