Открытый узел

Wiring Harness, SCV Shifter, Armrest Controller Unit, PQT / AQT

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE296580	1	Cab Wiring Harness	-
1	RE237507	1	Cab Wiring Harness	-
2	57M7713	1	Electrical Connector Assy	Hand Throttle
2	57M7718	1	Electrical Connector Assy	-
3	57M7255	1	Elec. Connector Housing	Up/Down Shift Switch
3	57M7317	1	Elec. Connector Accessory	-
4	57M7708	1	Electrical Connector Assy	Rear Hitch
5	57M7712	2	Electrical Connector Assy	Rear PTO Switch
5	57M7718	2	Electrical Connector Assy	-
6	57M7256	1	Elec. Connector Housing	Park Switch
6	57M7289	1	Elec.Connect Locking Device	-
7	57M8416	1	Elec. Connector Housing	Up/Down Auto Resume Lever
7	57M7469	1	Electrical Connector Assy	-
8	57M7255	1	Elec. Connector Housing	Cab Interconnect Front PTO
8	57M7317	1	Elec. Connector Accessory	-
9	57M7713	1	Electrical Connector Assy	IMS Sequence Switch
9	57M7718	1	Electrical Connector Assy	-
10	57M7712	1	Electrical Connector Assy	Front PTO Switch
10	57M7718	1	Electrical Connector Assy	-
11	57M8070	1	Elec. Connector Housing	Cab Interconnect
11	57M8076	1	Elec. Connector Terminal	-
11	57M8943	1	Elec.Connect Locking Device	-

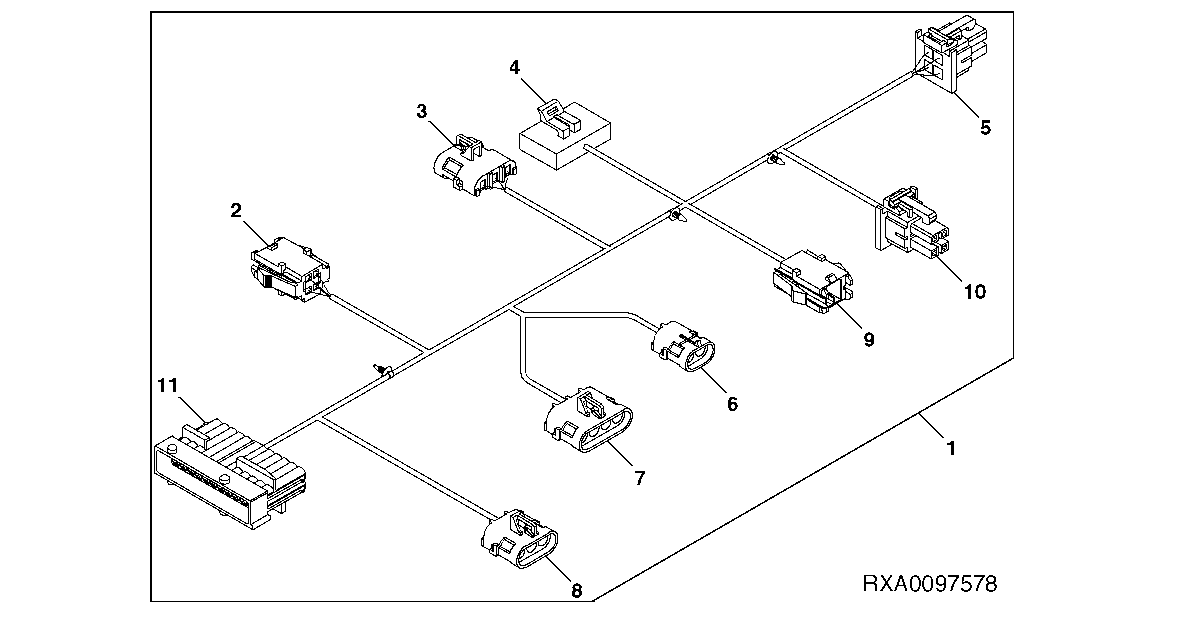

Wiring Harness, SCV Shifter, Armrest Controller Unit, PQT / AQT

Нет текстового описания
