Открытый узел

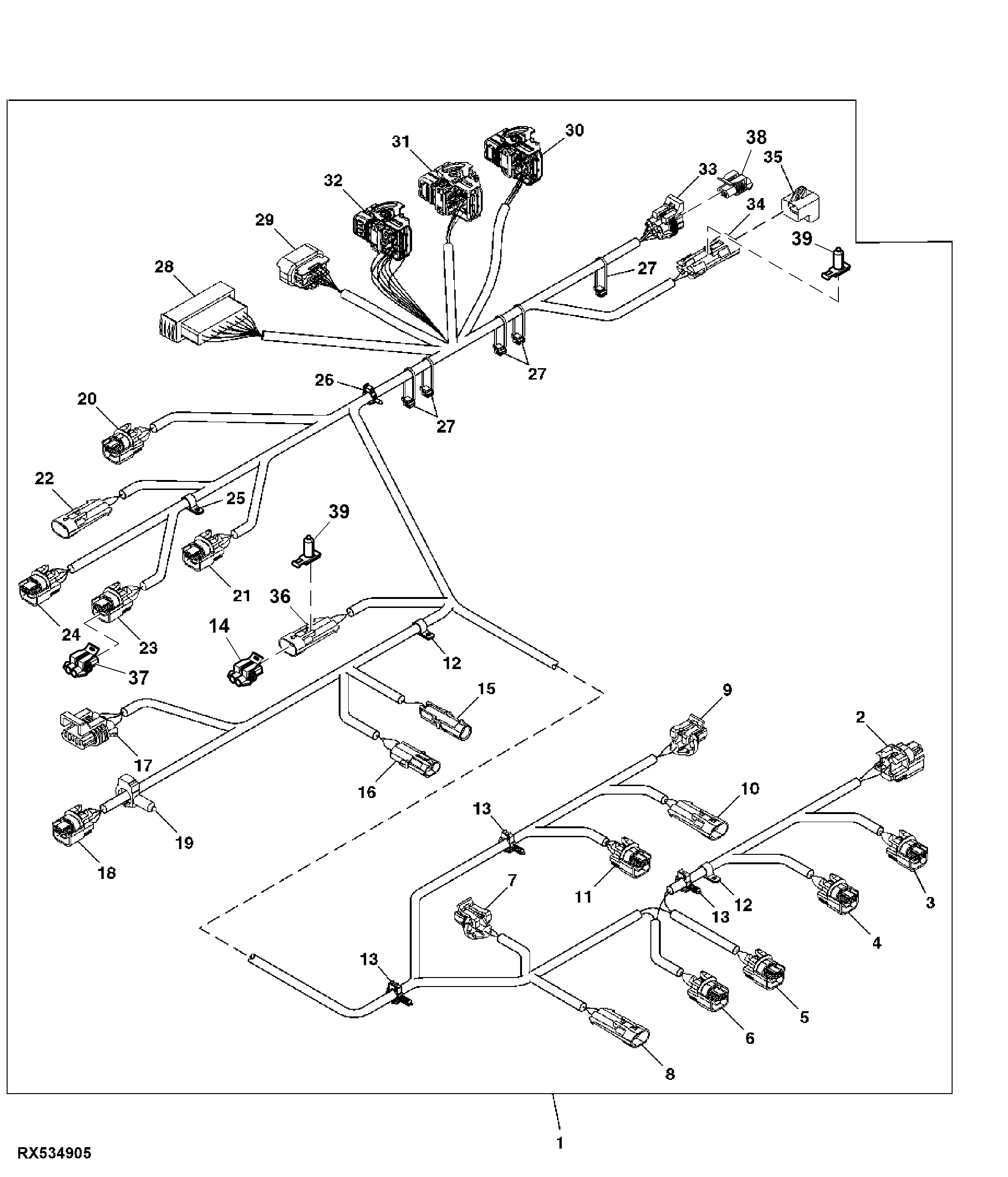

TRANSMISSION WIRING HARNESS (PQT)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE259364	1	Wiring Harness	-
2	57M8924	1	Elec. Connector Housing	Reverse Solenoid Y672
2	57M8566	2	Elec. Connector Seal	Cavity A, B
2	57M8633	1	Elec. Connector Accessory	-
2	57M8560	2	Elec. Connector Terminal	Cavity A, B
3	57M8924	1	Elec. Connector Housing	Forward Solenoid Y671
3	57M8633	1	Elec. Connector Accessory	-
3	57M8560	2	Elec. Connector Terminal	Cavity A, B
3	57M8566	2	Elec. Connector Seal	Cavity A, B
4	57M8924	1	Elec. Connector Housing	Enable Solenoid Y670
4	57M8633	1	Elec. Connector Accessory	-
4	57M8560	2	Elec. Connector Terminal	Cavity A, B
4	57M8566	2	Elec. Connector Seal	Cavity A, B
5	57M8924	1	Elec. Connector Housing	K2 Solenoid Y674
5	57M8633	1	Elec. Connector Accessory	-
5	57M8560	2	Elec. Connector Terminal	Cavity A, B
5	57M8566	2	Elec. Connector Seal	Cavity A, B
6	57M8560	2	Elec. Connector Terminal	Cavity A, B
6	57M8566	2	Elec. Connector Seal	Cavity A, B
6	57M8633	1	Elec. Connector Accessory	-
6	57M8924	1	Elec. Connector Housing	K1 Solenoid Y673
7	57M7256	1	Elec. Connector Housing	Trans Filter Rest Switch S510
7	57M7289	1	Elec.Connect Locking Device	-
7	R104919	2	Elec. Connector Terminal	Cavity A, B
7	57M9215	2	Elec. Connector Seal	Cavity A, B
8	57M8625	1	Elec. Connector Housing	Transmission Oil Pressure B510
8	57M8624	1	Elec.Connect Locking Device	-
8	57M8560	2	Elec. Connector Terminal	Cavity 1, 2, 3
8	57M8566	2	Elec. Connector Seal	Cavity 1, 2, 3
9	57M8625	1	Elec. Connector Housing	Enable Pressure B671
9	57M8624	1	Elec.Connect Locking Device	-
9	57M8560	3	Elec. Connector Terminal	Cavity 1, 2, 3
9	57M8566	3	Elec. Connector Seal	Cavity 1, 2, 3
10	57M7256	1	Elec. Connector Housing	Hydraulic Pump Filter Rest S710
10	57M9215	2	Elec. Connector Seal	Cavity A, B
10	57M7289	1	Elec.Connect Locking Device	-
10	R104919	2	Elec. Connector Terminal	Cavity A, B
11	57M8924	1	Elec. Connector Housing	Hydraulic Oil Temp B700
11	57M8633	1	Elec. Connector Accessory	-
11	57M8560	2	Elec. Connector Terminal	Cavity A, B
11	57M8566	2	Elec. Connector Seal	Cavity A, B
12	57M9432	2	Clamp	-
13	57M8902	3	Clip	-
14	57M7254	1	Elec. Connector Housing	Air Brake Y515
14	57M7289	1	Elec.Connect Locking Device	-
14	57M7494	2	Elec. Connector Terminal	Cavity A, B
14	57M9215	2	Elec. Connector Seal	Cavity A, B
15	57M9219	1	Elec. Connector Seal	Cavity A
15	57M7251	1	Elec. Connector Terminal	Cavity A
15	R78052	1	Electrical Connector Assy	Wheel Speed B500
16	R78053	1	Electrical Connector Assy	Wheel Speed
16	57M7251	2	Elec. Connector Terminal	Cavity A, B
16	57M9219	2	Elec. Connector Seal	Cavity A, B
17	57M7255	1	Elec. Connector Housing	Top Shaft Speed B576
17	57M7290	1	Elec. Connector Accessory	-
17	57M7494	3	Elec. Connector Terminal	Cavity A, B, C
17	57M9215	3	Elec. Connector Seal	Cavity A, B, C
18	57M8924	1	Elec. Connector Housing	MFWD Solenoid Y501
18	57M8633	1	Elec. Connector Accessory	-
18	57M8560	2	Elec. Connector Terminal	Cavity A, B
18	57M8566	2	Elec. Connector Seal	Cavity A, B
19	57M8903	2	Clip	-
20	57M8566	2	Elec. Connector Seal	Cavity A, B
20	57M8560	2	Elec. Connector Terminal	Cavity A, B
20	57M8924	1	Elec. Connector Housing	Rear PTO Oil Temp B573
20	57M8633	1	Elec. Connector Accessory	-
21	57M8633	1	Elec. Connector Accessory	-
21	57M8560	2	Elec. Connector Terminal	Cavity A, B
21	57M8566	2	Elec. Connector Seal	Cavity A, B
21	57M8924	1	Elec. Connector Housing	Rear Difflock Solenoid Y502
22	57M8924	1	Elec. Connector Housing	Rear PTO Solenoid Y500
22	57M8633	1	Elec. Connector Accessory	-
22	57M8560	2	Elec. Connector Terminal	Cavity A, B
22	57M8566	2	Elec. Connector Seal	Cavity A, B
23	57M7985	1	Electrical Connector Assy	Rear PTO Shaft Select Switch S570
23	57M7289	1	Elec.Connect Locking Device	-
23	R104919	2	Elec. Connector Terminal	Cavity A, B
23	57M9215	2	Elec. Connector Seal	Cavity A, B
24	57M8560	2	Elec. Connector Terminal	Cavity A, B
24	57M8566	2	Elec. Connector Seal	Cavity A, B
24	57M8633	1	Elec. Connector Accessory	-
24	57M8924	1	Elec. Connector Housing	Rear PTO Speed B501
25	57M9435	1	Clamp	-
26	57M9206	1	Clip	-
27	57M9229	5	Clip	-
28	57M8944	1	Elec. Connector Housing	Engine Harness X502
28	57M8943	1	Elec.Connect Locking Device	-
28	57M8621	13	Elec. Connector Terminal	Cavity 1, 3, 5, 6, 7, 8, 9, 10, 12, 13, 14, 18, 19
28	57M8515	13	Elec. Connector Seal	Cavity 1, 3, 5, 6, 7, 8, 9, 10, 12, 13, 14, 18, 19
28	57M8942	5	Elec. Connector Terminal	Cavity 2, 4, 11, 15, 17
28	57M7399	5	Elec. Connector Seal	Cavity 2, 4, 11, 15, 17
29	57M8321	5	Elec. Connector Terminal	Cavity C, D, E, H, J
29	57M8300	5	Elec. Connector Terminal	Cavity C, D, E, H, J
29	57M9223	3	Elec. Connector Seal	Cavity B, K, L
29	57M8299	3	Elec. Connector Terminal	Cavity B, K, L
29	57M8304	2	Elec. Connector Terminal	Cavity G, M
29	57M8323	2	Elec. Connector Terminal	Cavity A, F
29	57M8303	2	Elec. Connector Terminal	Cavity A, F
29	57M8917	1	Elec. Connector Housing	Engine Harness X501
29	57M8324	2	Elec. Connector Terminal	Cavity G, M
30	57M8522	1	Elec. Connector Housing	FVC Controller J1 A570X1
30	57M8528	1	Electrical Connector Cap	-
30	57M10330	16	Elec. Connector Terminal	Cavity A1, A3, B1, B2, B3, B4, C1, C2, C3, C4, D1, D3, E1, E3, E4, F4
30	57M10331	2	Elec. Connector Terminal	Cavity G2, H2
31	57M10615	1	Elec. Connector Housing	FVC Controller J2 A570X2
31	57M8529	1	Electrical Connector Cap	-
31	57M10330	20	Elec. Connector Terminal	Cavity A1, B1, B4, C1, C4, D2, E1, E4, F4, G3, G4, H1, H2, H4, J1, J2, J4, K1, K2, K4
31	57M10331	3	Elec. Connector Terminal	Cavity L2, L3, M1
31	57M10617	2	Elec. Connector Housing	Cavity L4, M4
32	57M10331	5	Elec. Connector Terminal	Cavity G1, G4, H1, H2, H3
32	57M10330	2	Elec. Connector Terminal	Cavity B4, F1
32	57M10606	1	Elec. Connector Housing	FVC Controller J3 A570X3
32	57M8528	1	Electrical Connector Cap	-
33	57M7256	1	Elec. Connector Housing	Back - Up Alarm X505
33	57M7289	1	Elec.Connect Locking Device	-
33	R104919	2	Elec. Connector Terminal	Cavity A, B
33	57M9215	2	Elec. Connector Seal	Cavity A, B
34	57M7258	4	Elec. Connector Seal	Cavity B, D, E, F
34	57M7494	4	Elec. Connector Terminal	Cavity B, D, E, F
34	57M7291	1	Electrical Connector Assy	-
34	57M7260	1	Elec. Connector Housing	CAN Terminator or Extension X912A
35	RE207311	1	Electronic Control Unit	-
36	57M7256	1	Elec. Connector Housing	Dust Cap
36	57M7289	1	Elec.Connect Locking Device	-
37	57M7328	1	Elec. Connector Housing	Dust Cap
37	57M7289	1	Elec.Connect Locking Device	-
38	57M7254	1	Elec. Connector Housing	Dust Cap
38	57M7289	1	Elec.Connect Locking Device	-
39	57M8910	2	Clip	-

TRANSMISSION WIRING HARNESS (PQT)
