Rear Axle (100 mm), W/ Heavy Duty Planetary Gears, LH

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R225947	1	Housing	-
2	R225107	1	Ring Gear	-
3	JD8248	1	Bearing Cup	-
4	RE50957	1	Tapered Roller Bearing	-
5	R153611	1	Planet Pinion Carrier	-
6	R93173	1	Spacer	-
7	JD7378	3	Bearing Cone	-
8	JD7292	6	Bearing Cup	-
9	R94897	3	Planet Pinion	Z = 32, USE WITH R199447
9	R225113	3	Planet Pinion	Z = 32, USE WITH R225109
10	JD7378	3	Bearing Cone	-
11	R122193	3	Washer	-
12	R113494	3	Cap Screw	-
13	R538301	1	Bushing	SUB FOR R112071
14	RE168641	1	Seal	-
15	R554952	1	Rear Axle	(Short Rear Axle) SUB FOR R181873 OR R305694
15	R305695	1	Rear Axle	(Long Rear Axle) SUB FOR R181874
15	R554955	1	Rear Axle	(Extra Long Rear Axle) SUB FOR R305696 OR R181875
16	JD8951	1	Bearing Cone	-
17	R71712	1	Shim	-
18	R94714	1	Cap Screw	-
19	R62498	1	Plate	-
20	R162308	1	Cap	-
21	R225109	1	Sun Gear	USE WITH R225113
21	R199447	1	Shaft	USE WITH R94897
22	R189917	12	Wheel Bolt	-
23	R59843	1	Snap Ring	-
24	AL171450	2	Reflector	SUB FOR AL77442
25	R226506	1	Plate	(For North America) USE WITH R232687
25	R325671	1	Plate	(For Europe) USE WITH R325673
26	RE324245	1	Brake Disk	(For North America) SUB FOR RE292441 OR RE226503; USE WITH R232687
26	RE334882	1	Brake	(For Europe) USE WITH R325673
27	R232883	3	Compression Spring	-
28	R54380	2	Dowel Pin	-
29	R59440	1	Shim	TK = 0.5 mm
29	R79989	1	Shim	TK = 0.178 mm
29	R59439	1	Shim	TK = 0.127 mm
29	R61461	1	Shim	TK = 0.076 mm
30	F2380R	2	Washer	-
..	TY16021	1	Sealant	-

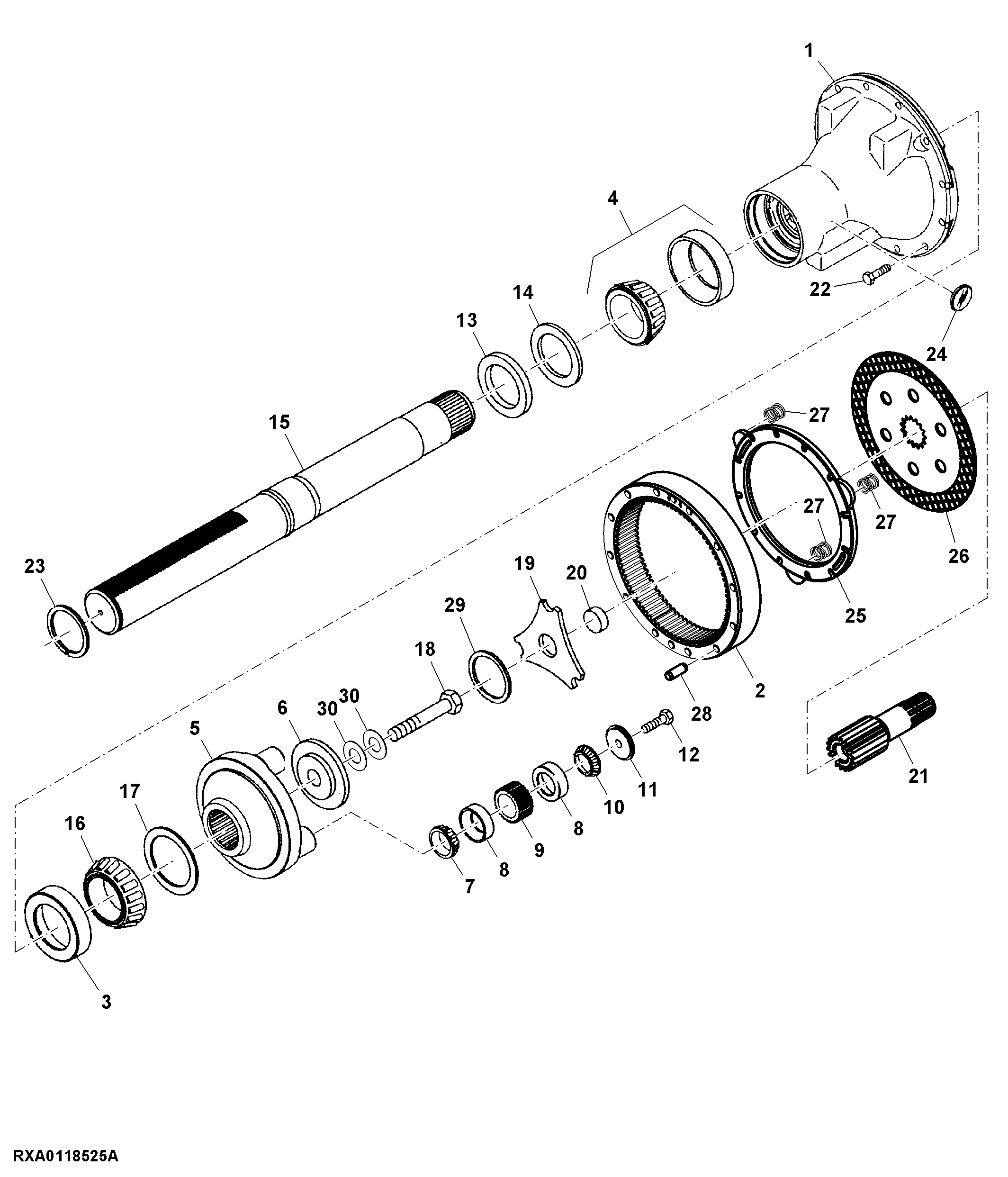

Rear Axle (100 mm), W/ Heavy Duty Planetary Gears, LH

Нет текстового описания
