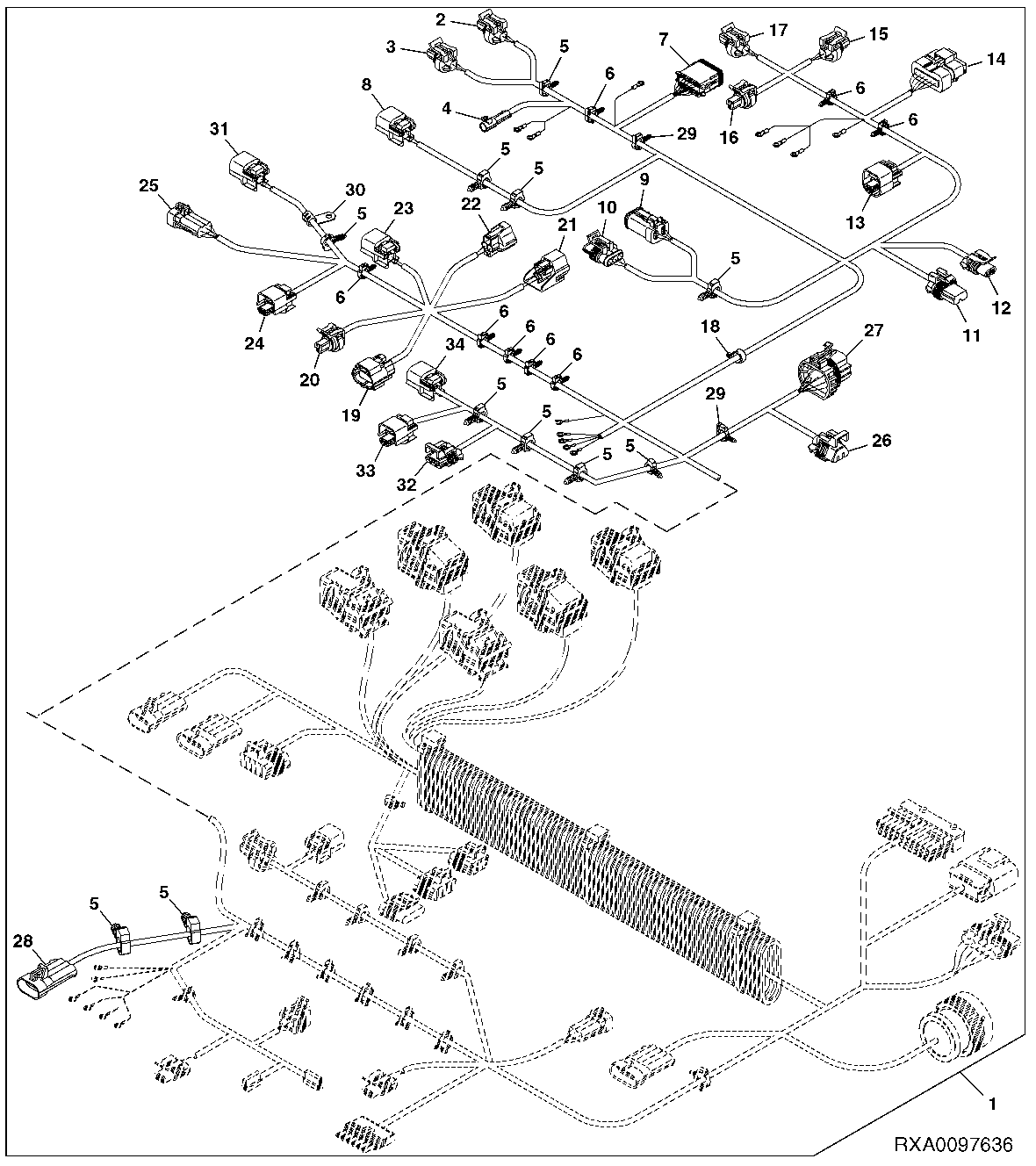

Chassis Wiring Harness Connectors, W/ TLS™, Electro Hydraulic SCV (1/2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE259367	1	Chassis Wiring Harness	-
2	57M8625	1	Elec. Connector Housing	AIR FLOW RESTRICTION
2	57M8624	1	Elec.Connect Locking Device	-
3	57M8625	1	Elec. Connector Housing	EXHAUST PRESS SENSOR
3	57M8624	1	Elec.Connect Locking Device	-
4	57M7293	1	Elec. Connector Housing	A/C CLUTCH
4	57M7295	1	Elec.Connect Locking Device	-
5	57M8903	6	Clip	-
6	57M8902	8	Clip	-
7	57M8963	1	Elec. Connector Housing	FUEL INJECTOR CONNNECTION
7	57M8009	1	Elec.Connect Locking Device	-
8	57M8924	1	Elec. Connector Housing	COMPRESSOR INLET TEMP
8	57M8633	1	Elec. Connector Accessory	-
9	57M8635	1	Elec. Connector Housing	BORG WARNER VGT ACTUATOR
9	57M8016	1	Elec.Connect Locking Device	-
10	57M8542	1	Elec. Connector Housing	BORG WARNER VGT SPEED SENSOR
11	57M8161	1	Elec. Connector Housing	FUEL LIFT PUMP
11	57M8162	1	Electrical Connector Assy	-
12	57M7254	1	Elec. Connector Housing	WATER IN FUEL SENSOR
12	57M7289	1	Elec.Connect Locking Device	-
13	57M8612	1	Elec. Connector Housing	EGR EXHAUST
13	57M8633	1	Elec. Connector Accessory	-
14	57M8552	1	Elec. Connector Housing	DELPHI TORQUE SENSOR
14	57M9597	1	Elec.Connect Locking Device	-
15	57M8924	1	Elec. Connector Housing	EGR MIXED AIR
15	57M8633	1	Elec. Connector Accessory	-
16	57M8625	1	Elec. Connector Housing	MAP SENSOR
16	57M8624	1	Elec.Connect Locking Device	-
17	57M8633	1	Elec. Connector Accessory	-
17	57M8924	1	Elec. Connector Housing	EGR FRESH AIR
18	57M9412	1	Clamp	-
19	57M13604	1	Elec. Connector Housing	RAIL PRESSURE
19	57M8417	1	Elec.Connect Locking Device	-
20	57M8625	1	Elec. Connector Housing	OIL PRESSURE
20	57M8624	1	Elec.Connect Locking Device	-
21	57M8403	1	Elec. Connector Housing	PCV 1
22	57M8400	1	Electrical Connector Assy	FUEL TEMP
23	57M8924	1	Elec. Connector Housing	ENG CAM SENSOR
23	57M8633	1	Elec. Connector Accessory	-
24	57M8924	1	Elec. Connector Housing	ENG CRANK SENSOR
24	57M8633	1	Elec. Connector Accessory	-
25	57M7263	1	Elec. Connector Housing	VISTRONIC FAN
25	57M7291	1	Electrical Connector Assy	-
26	57M9194	1	Elec.Connect Locking Device	-
26	57M9204	1	Elec. Connector Housing	HOOD/FRONT HEADLIGHTS
27	57M7538	1	Elec. Connector Housing	HOOD CONNECTION
27	57M7540	1	Elec. Connector Terminal	-
28	57M7257	1	Elec. Connector Housing	RADAR
28	57M7290	1	Elec. Connector Accessory	-
29	57M8908	1	Clip	-
30	57M9435	1	Clamp	-
31	57M8924	1	Elec. Connector Housing	COOLANT TEMP
31	57M8633	1	Elec. Connector Accessory	-
32	57M7255	1	Elec. Connector Housing	TLS POSITION
32	57M7290	1	Elec. Connector Accessory	-
33	57M8924	1	Elec. Connector Housing	TLS FRONT RAISE/LOWER
33	57M8633	1	Elec. Connector Accessory	-
34	57M8924	1	Elec. Connector Housing	TLS FRONT RAISE
34	57M8633	1	Elec. Connector Accessory	-

Chassis Wiring Harness Connectors, W/ TLS™, Electro Hydraulic SCV (1/2)

Нет текстового описания
