Открытый узел

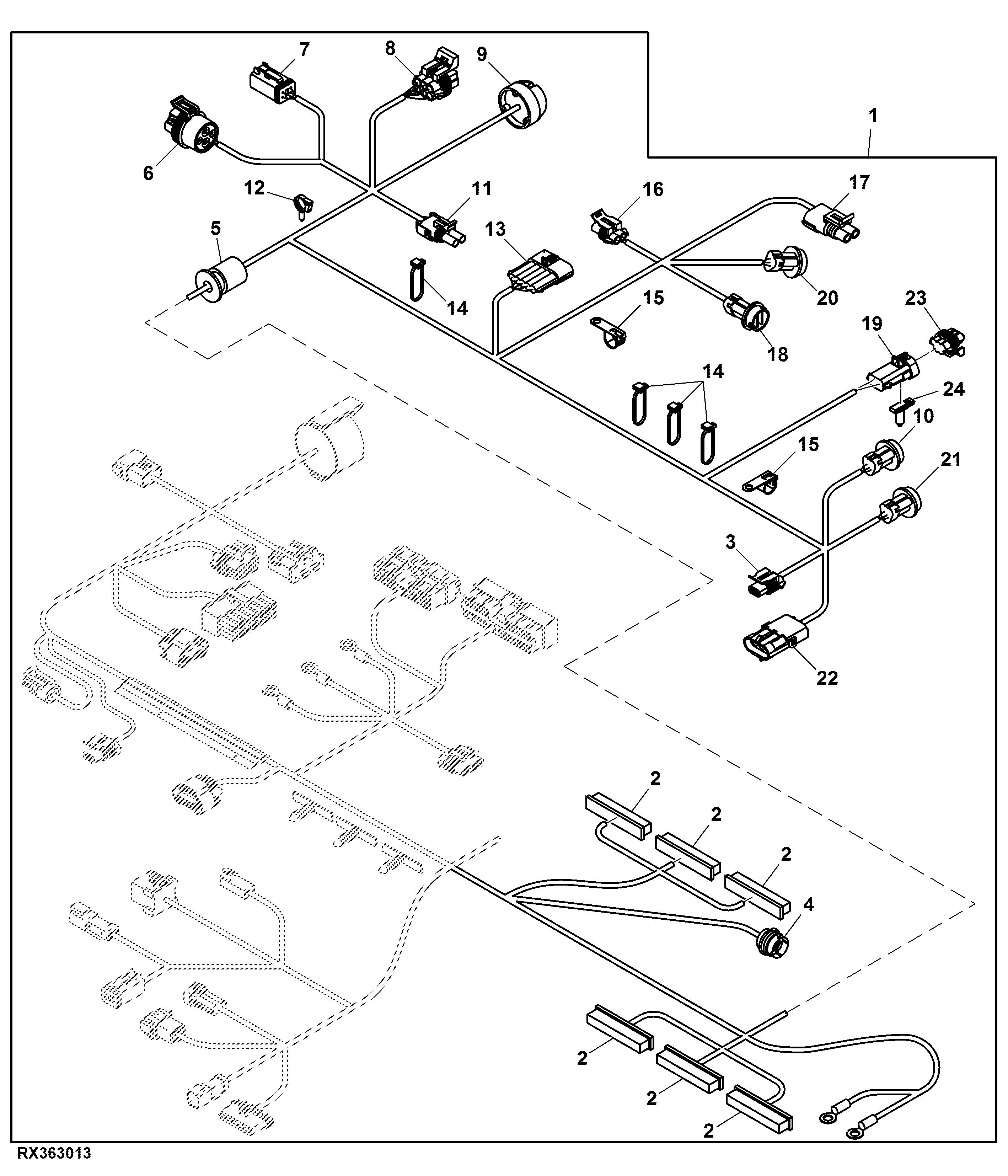

CAB WIRING HARNESS CONNECTORS (2/3) (NAV) (IVT) (40-50K)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE279670	1	Cab Wiring Harness	-
1	RE229095	1	Cab Wiring Harness	-
2	57M8848	6	Elec.Connect Locking Device	-
2	57M8847	6	Elec. Connector Housing	SPLICE PACK 1, 2, 3, 4, 5 & 6
3	57M7254	1	Elec. Connector Housing	LEFT REAR FENDER FLOOD
3	57M7289	1	Elec.Connect Locking Device	-
4	57M8616	1	Elec. Connector Housing	CHASSIS HARNESS
5	R112653	1	Grommet	-
6	RE210023	1	Electrical Connector Assy	IMPLEMENT CAN DATA CONNECTOR
7	57M8016	1	Elec.Connect Locking Device	-
7	57M8015	1	Electrical Connector Assy	IMPLEMENT CAN
8	57M7260	1	Elec. Connector Housing	LEFT HITCH UP/DOWN SWITCH
8	57M7291	1	Electrical Connector Assy	-
9	AR75695	1	Socket Outlet	(7 PIN DOME ELECT. CONN.) (SUB FOR L83677)
10	57M8864	1	Electrical Lamp Socket	LEFT TURN LAMP TOP
10	57M9211	1	Elec.Connect Locking Device	-
11	RE12363	1	Electrical Connector Assy	HITCH DOWN SWITCH
12	57M8908	1	Clip	-
13	57M8274	1	Elec. Connector Housing	CHASSIS HARNESS
13	57M7300	1	Elec. Connector Accessory	-
14	57M9229	4	Clip	-
15	57M8824	2	Elec. Connector Accessory	-
16	57M7254	1	Elec. Connector Housing	RIGHT REAR FENDER FLOOD
16	57M7289	1	Elec.Connect Locking Device	-
17	RE12363	1	Electrical Connector Assy	RIGHT EXTREMITY LIGHT
18	57M9211	1	Elec.Connect Locking Device	-
18	57M8060	1	Elec. Connector Accessory	Lamp Socket Seal
18	57M8864	1	Electrical Lamp Socket	RIGHT TAIL LAMP
19	57M8630	1	Elec. Connector Housing	FRONT PTO HARNESS
20	57M8864	1	Electrical Lamp Socket	LEFT TAIL LAMP (BOTTOM)
20	57M9211	1	Elec.Connect Locking Device	-
21	57M8864	1	Electrical Lamp Socket	LEFT TAIL LAMP (BOTTOM)
21	57M9211	1	Elec.Connect Locking Device	-
22	RE12363	1	Electrical Connector Assy	LEFT EXTREMITY LIGHT
23	57M9204	1	Elec. Connector Housing	-
24	57M8910	1	Clip	-

CAB WIRING HARNESS CONNECTORS (2/3) (NAV) (IVT) (40-50K)

Нет текстового описания
