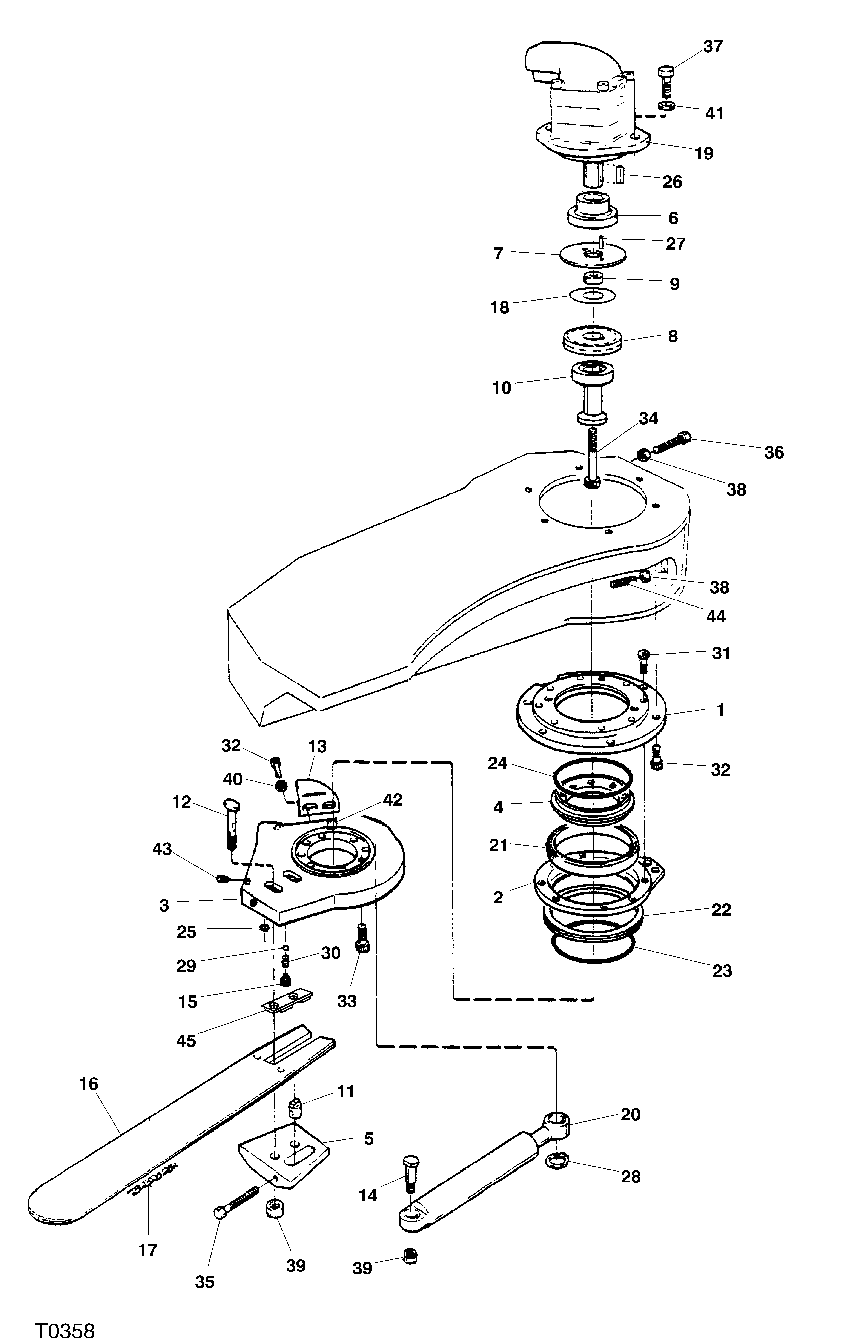

SAW TRANSMISSION,CUTTING BAR AND CYLINDER [A16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F048064	1	ENGINE BRACKET	-
2	F009841	1	BEARING RING	-
3	F009831	1	HOLDER	-
4	F009839	1	BEARING RING	-
5	F009835	1	HOLDER	-
6	F600657	1	CARRIER	-
7	F011208	1	WASHER	-
8	F020180	1	SPROCKET WHEEL	-
9	F011209	1	SLEEVE	-
10	F019801	1	CHAIN CATCHER	-
11	F011217	1	CHAIN TIGHTENER	-
12	F021404	2	SCREW	-
13	F009836	1	END PIECE	-
14	F014614	1	PIN	-
15	F009848	1	PLUG	-
16	F061761	1	SAW	82 CM, 15MM, 2MM
16	F061763	1	GUIDE BAR	82 CM, 15MM, 2MM, UREA
16	F033631	1	KNIFE	75 CM, 10MM, 2MM
17	F064023	1	SAW CHAIN	93 LINKS
17	F064019	1	SAW CHAIN	85 LINKS
17	F071856	1	Saw Chain	97 LINKS, 2MM
18	F020181	1	WASHER	-
19	-	1	Part 23	SEE PAGE 4460-2
20	F051120	1	HYDRAULIC CYLINDER	SEE PAGE 4465-6
20	F062198	1	HYDRAULIC CYLINDER	SEE PAGE 4465-8
21	F005571	1	BALL BEARING	-
22	F005506	1	SEAL	-
23	F004712	1	O-RING	-
24	F013914	1	O-RING	-
25	F013913	1	O-RING	-
26	-	1	Part 31	-
27	F600351	4	PIN	-
28	F003357	1	CIRCLIP	-
29	F013607	1	STEEL BALL	-
30	F013895	1	SPRING	-
31	F008572	8	SCREW	-
32	F003411	8	SCREW	-
33	F008646	8	SCREW	-
34	F005572	1	SCREW	-
35	F005572	1	SCREW	-
36	F012712	1	SCREW	-
37	F003542	2	SCREW	-
38	F003564	1	NUT	-
39	F011198	3	LOCK NUT	-
40	F003338	2	WASHER	-
41	F003170	2	WASHER	-
42	F010192	1	PLUG	-
43	F012758	3	STOP SCREW	-
44	F024428	1	STOP SCREW	-
45	F027648	1	WEDGE	-

SAW TRANSMISSION,CUTTING BAR AND CYLINDER [A16]
