Открытый узел

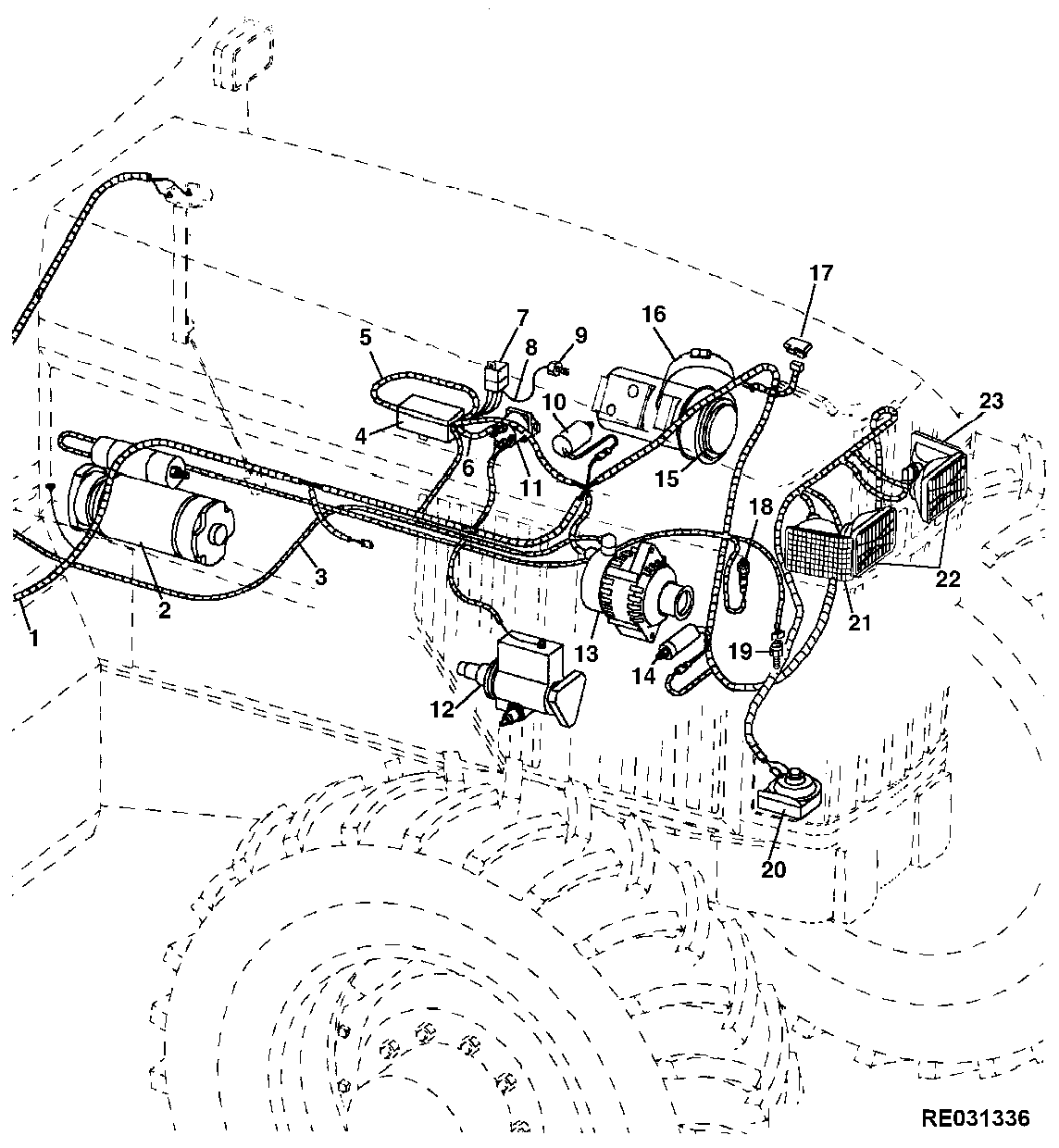

Wiring Harness, Engine and Chassis (7610)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE158761	1	Wiring Harness	SUB FOR RE71391; TSN
1	RE69573	1	Wiring Harness	TSN
1	RE187687	1	Wiring Harness	-
2	RE65191	1	Starter Motor	MARKED RE59596; SUB TY25968; NIPPONDENSO NO. 228000-4700
2	TY25968	1	Starter Motor	-
2	SE501422	1	Starter Motor Reman	REMAN FOR TY25968
2	RE42670	1	Starter Motor	-
2	SE501422	1	Starter Motor Reman	REMAN FOR RE42670
2	RE54909	1	Starter Motor	-
2	SE501422	1	Starter Motor Reman	REMAN FOR RE54909
2	RE70959	1	Starter Motor Kit	MARKED RE70473; NIPPONDENSO NO.228000-6540
3	RE69405	1	Battery Cable	Positive
4	RE48867	1	Junction Block	-
5	RE49736	1	Wiring Lead	-
6	RE49735	1	Wiring Lead	-
7	AL81719	1	Relay	-
8	AL63347	1	Wiring Lead	-
9	RE502079	1	Glow Plug	SUB FOR RE29658
10	RE12176	1	Air Restriction Sensor	ALSO ORDER R77673
11	RE164448	1	Starter Relay	-
12	RE59514	1	Fuel Pump	-
13	SE501381	1	Alternator	REMAN FOR TY6763 OR RE34888
13	SE501380	1	Alternator	REMAN FOR TY6762 OR RE46608
13	RE46608	1	Alternator	(W/ Cab) 140 AMP; NIPPONDENSO NO.100211-6420
13	TY6763	1	Alternator	(W/O Cab) 90 AMP
13	RE34888	1	Alternator	(W/O Cab) 90 AMP; NIPPONDENSO NO.101211-5030
13	TY6762	1	Alternator	(W/ Cab) 140 AMP
14	RE55145	1	Switch	(Engine Oil Pressure)
15	TY24304	1	Compressor	(Remanufactured)
15	SE501459	1	Compressor Reman	REMAN FOR TY24304
15	RE69716	1	Compressor	-
15	SE501459	1	Compressor Reman	REMAN FOR RE69716
16	RE52510	1	Stator	ALSO ORDER R44302; A.C
17	R131986	1	Hose Fitting	-
17	R205823	1	Bulk Hose	-
17	R132240	1	Hose	-
17	RE67915	1	Sensor	MAP, PST
18	RE65836	1	Coolant Temperature Sensor	ALSO ORDER 51M7041
19	RE508195	1	Sensor	(Engine Speed) SUB FOR RE43511 OR RE71121; SUB RE519144
20	R64700	1	High Note Horn	SUB RE159897, R153925, 14M7273 AND 24M7036
20	AL203265	1	Horn	SUB FOR AL114614 OR RE159897
21	RE151565	1	Side Light	RH; SUB FOR RE39346
22	RE56964	2	Lamp	(Traffic Direction) RH
22	RE56965	2	Lamp	(Traffic Direction) LH
23	RE151564	1	Side Light	LH; SUB FOR RE39347
..	RE170320	1	Starter Relay	-

Wiring Harness, Engine and Chassis (7610)

Нет текстового описания
