Открытый узел

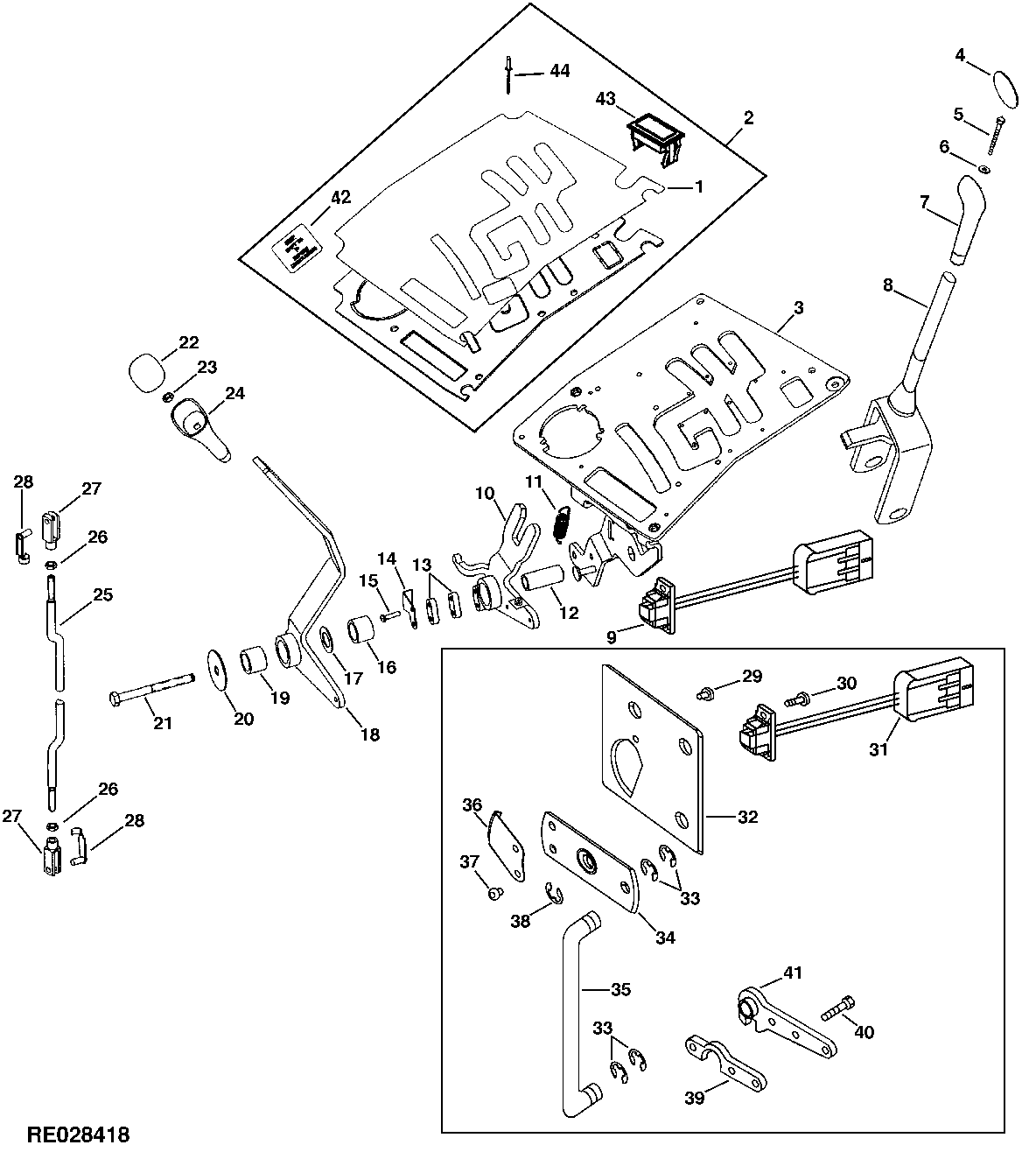

Shifter Unit with Left Hand Reverser

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R156906	1	Label	SUB FOR R134256
2	RE156909	1	Control Lever	(16 Speed) SUB FOR RE151977
2	RE156910	1	Control Lever	(20 Speed) SUB FOR RE151978
3	RE69252	1	Guide	-
3	RE150463	1	Guide	(For Italy and Spain)
4	L77964	1	Insert	-
5	19M7560	1	Cap Screw	M6 X 16
6	24M7088	1	Washer	6.600 X 12 X 1.600 mm
7	L77805	1	Knob	-
8	RE64005	1	Lever	-
9	RE66198	1	Switch	-
10	RE70972	1	Arm	SUB FOR RE69330
11	T25530	1	Spring	-
12	R128333	1	Shaft	-
13	R128776	2	Spacer	-
14	R128777	1	Vane	-
15	37M7067	2	Screw	-
16	JD9954	1	Cylindrical Roller Bearing	-
17	24H1274	1	Washer	49/64" X 1-1/4" X 0.048"
18	RE66154	1	Lever	-
19	JD9954	1	Cylindrical Roller Bearing	-
20	24H1313	1	Washer	13/32" X 1-3/4" X 0.065"
21	R128334	1	Cap Screw	-
22	L113019	1	Insert	SUB FOR L78980
23	M111717	1	Nut	-
24	L77747	1	Knob	-
25	R128342	1	Rod	-
26	14M7272	2	Nut	M6
27	L80052	2	Yoke	-
28	AL79051	2	Pin Fastener	-
29	21M7395	2	Screw	(Range Lockout Switch) (For Italy and Spain) M4 X 8
30	37M7067	2	Screw	(Range Lockout Switch) (For Italy and Spain)
31	RE66198	1	Switch	(Range Lockout Switch) (For Italy and Spain)
32	RE150570	1	Support	(Range Lockout Switch) (For Italy and Spain)
33	R72653	4	Snap Ring	(Range Lockout Switch) (For Italy and Spain)
34	RE150466	1	Arm	(Range Lockout Switch) (For Italy and Spain)
35	R150571	1	Link	(Range Lockout Switch) (For Italy and Spain)
36	R128777	1	Vane	(Range Lockout Switch) (For Italy and Spain)
37	21M7395	2	Screw	(Range Lockout Switch) (For Italy and Spain) M4 X 8
38	R72653	1	Snap Ring	(Range Lockout Switch) (For Italy and Spain)
39	R150549	1	Arm	(Range Lockout Switch)
40	19M8425	2	Cap Screw	(Range Lockout Switch) M6 X 16
41	RE150520	1	Arm	(Range Lockout Switch)
42	R114802	1	Label	-
43	M115279	1	Plug	-
44	R125955	19	Rivet	-
