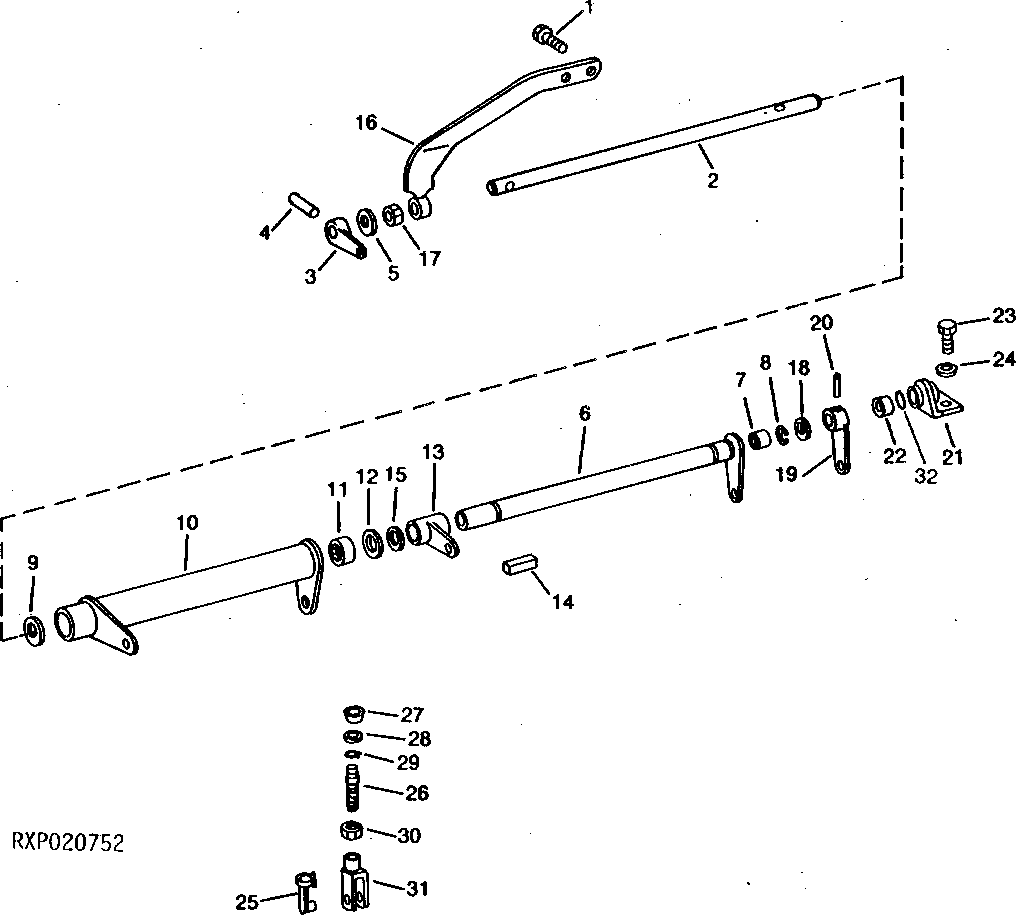

Selective Control Valve Control Linkage (W/ Cab) ( - 033918)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	37M7087	2	Screw	M10 X 25
2	R117286	1	Shaft	(3RD SCV)
3	R113379	1	Arm	(3RD SCV)
4	34M7040	1	Spring Pin	6 X 30 mm
5	R85226	1	Washer	-
6	RE54557	1	Shaft	(2ND SCV)
7	JD9960	2	Needle Bearing	-
8	C17964	1	Ring	-
9	F2674R	1	Washer	-
10	RE54556	1	Shaft	(1ST SCV)
11	RE49694	2	Needle Bearing	-
12	F2674R	1	Washer	-
13	R112603	1	Arm	(2ND SCV)
14	M114270	1	Shaft Key	-
15	R48429	1	Washer	-
16	RE52481	1	Support	-
17	JD9960	1	Needle Bearing	-
18	R85226	1	Washer	-
19	R112602	1	Arm	(3RD SCV)
20	34M7040	1	Spring Pin	6 X 30 mm
21	RE54561	1	Support	-
22	JD9960	1	Needle Bearing	-
23	19M7167	2	Cap Screw	M10 X 25
24	24M7136	2	Washer	10.500 X 27 X 2 mm
25	45M7080	2	Spring Locking Pin	(2ND SCV)
25	45M7080	3	Spring Locking Pin	(3RD SCV)
26	R113180	2	Rod	(2ND SCV)
26	R113180	3	Rod	(3RD SCV)
27	R112604	3	Round Retainer	(3RD SCV)
27	R112604	2	Round Retainer	(2ND SCV)
28	R40685	2	Shim	(2ND SCV)
28	R40685	3	Shim	(3RD SCV)
29	40M7040	2	Snap Ring	(2ND SCV)
29	40M7040	3	Snap Ring	(3RD SCV)
30	14M7272	2	Nut	M6, (2ND SCV)
30	14M7272	3	Nut	M6, (3RD SCV)
31	L80052	2	Yoke	(2ND SCV)
31	L80052	3	Yoke	(3RD SCV)
32	H63289	1	O-Ring	-

Selective Control Valve Control Linkage (W/ Cab) ( - 033918)
