Draft Links (North American Version) ( - 012337)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE221424	1	Link Body	(CATEGORY III) (CATEGORY IIIN/II) ALSO ORDER RE55264,
1	RE221428	1	Link Body	(CATEGORY III) (CATEGORY IIIN/II) ALSO ORDER RE55265,
1	RE55225	2	Link Body	(CATEGORY III) (CATEGORY IIIN/II) LH and RH; ORDER RE11578, RE221424 AND RE221428
2	R127161	2	Lock Plate	(CATEGORY III) (CATEGORY IIIN/II) LH and RH
3	R163286	2	Spring	SUB FOR R151027
4	RE55227	2	Draft Link End	(CATEGORY III) (CATEGORY IIIN/II) LH and RH; ORDER RE590354; INCLUDES R106409
4	RE55264	1	Draft Link End	(CATEGORY III) (CATEGORY IIIN/II) LH; ORDER RE590358; USE WITH RE221424; INCLUDES R106409
4	RE55265	1	Draft Link End	(CATEGORY III) (CATEGORY IIIN/II) RH; ORDER RE590355; USE WITH RE221428; INCLUDES R106409
4	RE590354	2	Draft Link End	-
4	RE590358	1	Draft Link End	-
4	RE590355	1	Draft Link End	-
5	R119832	4	Spring Pin	-
6	34M7199	2	Spring Pin	12 X 60 mm
7	R106297	2	Pin Fastener	-
8	11M7028	2	Cotter Pin	5 X 32 mm
9	R108112	2	Bushing	-
10	22M7154	2	Set Screw	(CATEGORY III) (CATEGORY IIIN/II) M16 X 16, LH and RH
11	A602R	2	Snap Ring	-
12	R26908	1	Spring	-
13	R69151	1	Retainer	-
14	R65239	2	Pin Fastener	-
15	19M6614	2	Cap Screw	M6 X 12
16	AR68071	1	Tie-Down Strap	-
17	R65240	2	Washer	-
18	RE11578	1	Lock	-
19	R106409	1	Ball Stud	-
..	PM38655	1	Sealant	SUB FOR T43514

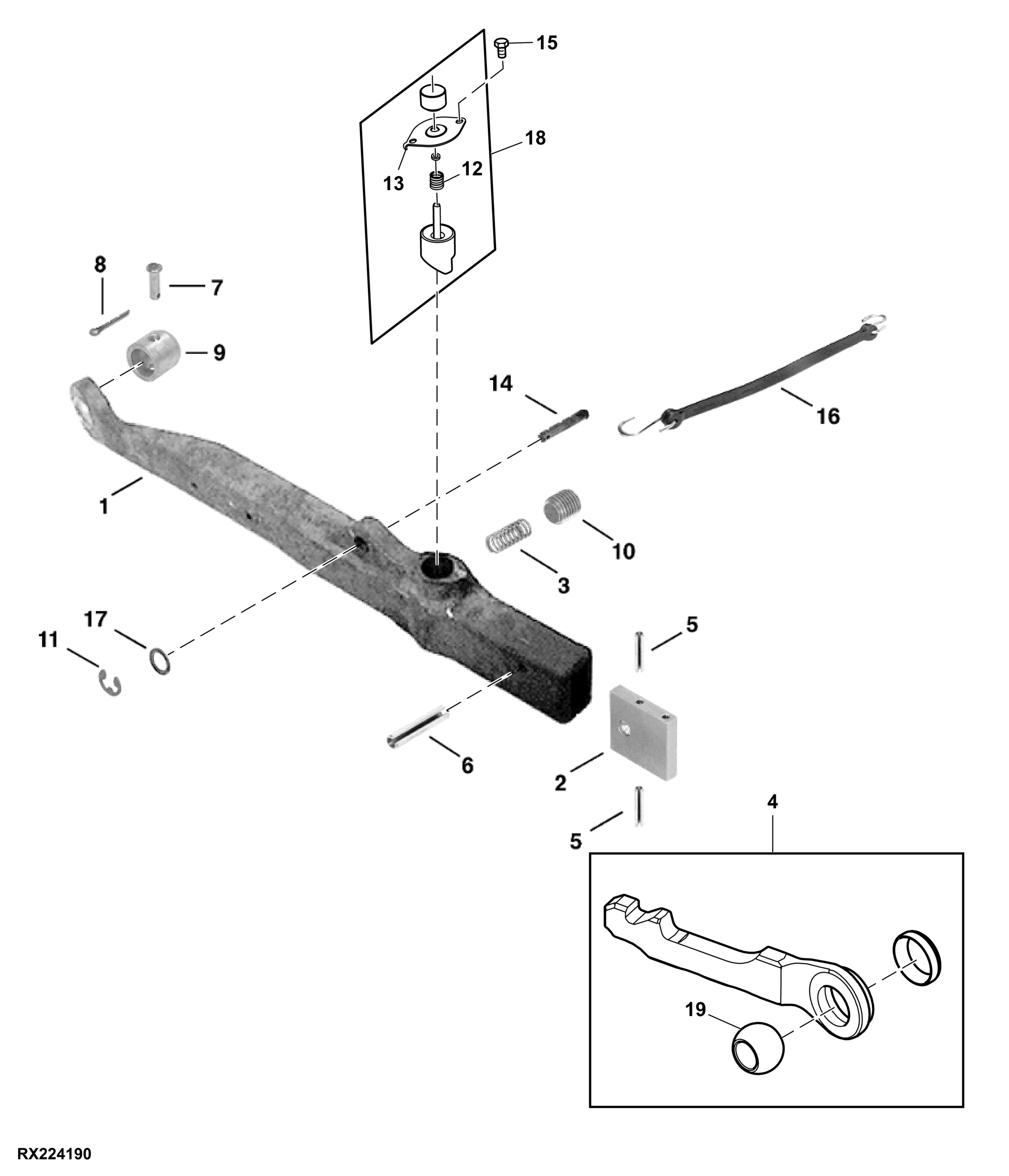

Draft Links (North American Version) ( - 012337)

Нет текстового описания
