Открытый узел

Single Lever Control Kit, For Added SCV

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

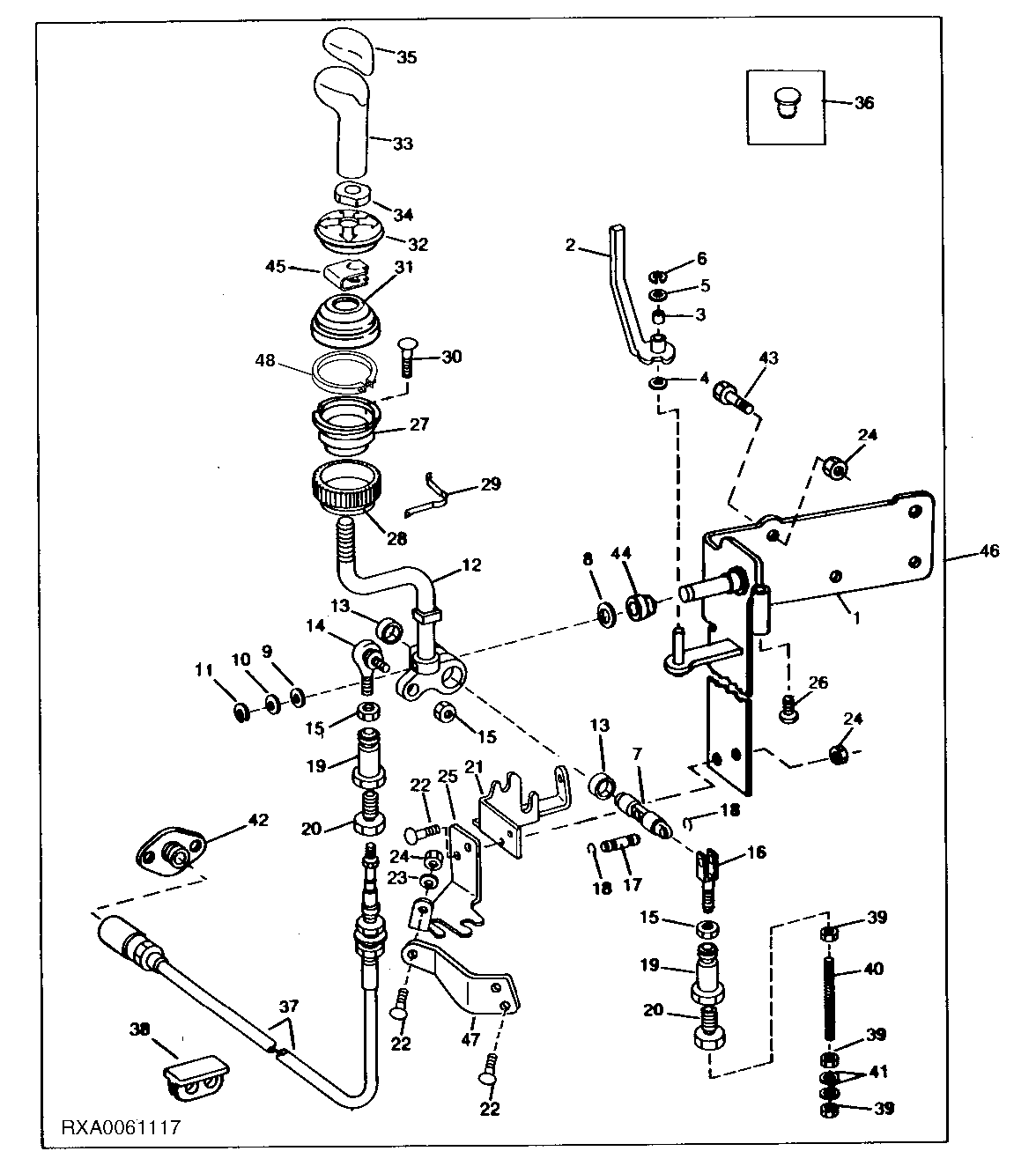

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE54083	1	Control Support	SUB FOR RE48228
2	RE49135	1	Cam	-
3	R110890	2	Washer	-
4	N153834	1	Shim	-
5	24M7088	1	Washer	6.600 X 12 X 1.600 mm
6	40M7032	1	Snap Ring	-
7	R110928	1	Pivot	-
8	R113352	1	Bushing	-
9	E65278	1	Thrust Washer	-
10	24H1302	1	Washer	13/32" X 11/16" X 0.035"
11	40M7189	1	Snap Ring	-
12	RE69479	1	Multi-Functional Controller	SUB FOR RE48241
13	R110918	2	Bearing	-
14	AT46597	1	Ball Joint	-
15	14H650	3	Nut	5/16"
16	R113234	1	Yoke	-
17	R114929	1	Pin Fastener	-
18	R72654	2	Snap Ring	-
19	R110929	2	Shift Collar	-
20	R111687	2	Sleeve	-
21	R117671	1	Bracket	PST
21	R117672	1	Brace	PowrQuad™
22	19M7407	3	Cap Screw	M8 X 25
22	19M7139	2	Cap Screw	M8 X 20
23	24M7036	5	Washer	9 X 16 X 1.600 mm
24	14M7273	8	Nut	M8
25	R110931	1	Bracket	SUB FOR R114921; ALSO ORDER R117672; PST
26	19M7874	1	Cap Screw	M6 X 30
27	R134556	1	Guide	SUB FOR R96302, R117093 OR R117439
28	R134457	1	Knob	SUB FOR R96301
29	R117501	1	Spring	SUB FOR R117405
30	37M7068	3	Screw	-
31	R117092	1	Boot	-
32	R114928	1	Cap	ALSO ORDER AL111743
32	L111831	1	Boot	-
33	R131476	1	Grip	SUB FOR R114627
34	R114922	1	Nut	-
35	R111697	1	Insert	-
36	RE52364	2	Plug	-
37	RE154026	1	Push Pull Cable	(For 1 Additional SCV) SUB FOR RE53979
37	RE154026	2	Push Pull Cable	(For 2 Additional SCV) SUB FOR RE53979
38	R117637	1	Grommet	SUB FOR R113308; ORDER R156902 AND 37M7089
39	14M7272	3	Nut	M6
40	R115979	1	Stud	-
41	24H1288	2	Washer	9/32" X 1" X 1/16"
42	AL118383	1	Flange	(For 1 Additional SCV) SUB FOR L79024 OR AL110322; INCLUDES L37733
42	AL118383	2	Flange	(For 2 Additional SCV) SUB FOR L79024 OR AL110322; INCLUDES L37733
43	19M7932	2	Cap Screw	M8 X 16
44	R117175	1	Spacer	-
45	R117702	2	Clip	-
46	RE71469	1	Selective Control Valve	(For 1 Additional SCV) Order Components SUB FOR RE51227; (FI)
46	RE71470	1	Kit	(For 2 Additional SCV) SUB FOR RE51228; (FI)
47	R135016	1	Bracket	-
48	AL111743	1	Clamp	-
48	37M7196	1	Screw	-

Single Lever Control Kit, For Added SCV

Нет текстового описания
