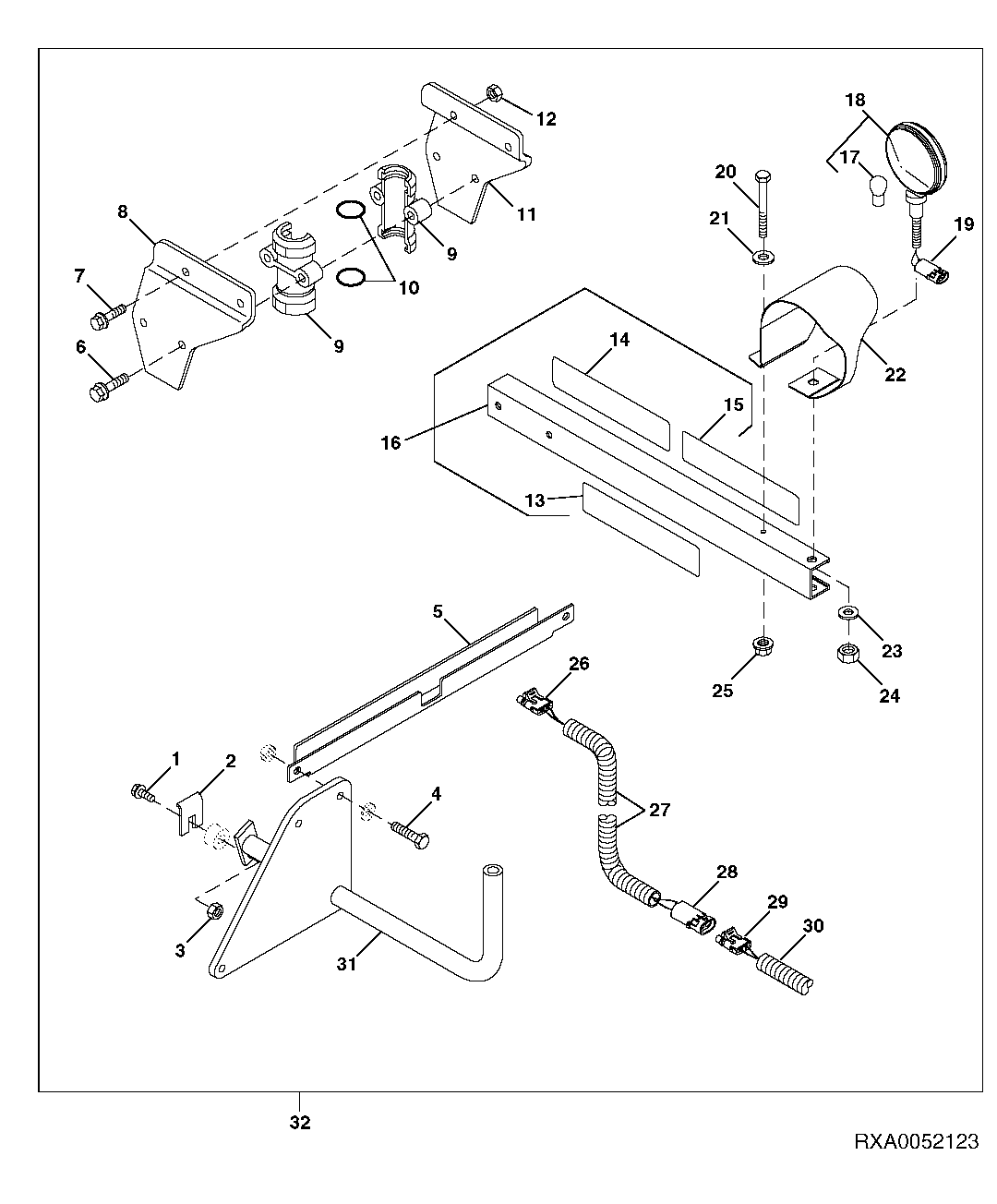

Extremity Warning Lamp Kit (Early Design)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7805	2	Screw	M10 X 45, (W/O BUSHING)
1	19M7783	2	Screw	M10 X 16, (W/BUSHING)
2	R126365	2	Retainer	-
3	14M7400	2	Lock Nut	M10
4	19M7874	2	Cap Screw	M6 X 30
5	R163803	2	Shield	-
6	19M9032	4	Screw	M10 X 70
7	19M9031	4	Screw	M10 X 60
8	R163774	2	Bracket	-
9	H161618	4	Housing	-
10	H136110	4	Isolator	-
11	R163775	2	Bracket	-
12	14M7546	8	Lock Nut	M10
13	JD5922	2	Reflector	(YELLOW)
14	JD5920	2	Reflector	(ORANGE)
15	JD5921	2	Reflector	(RED)
16	RE166045	2	Arm	-
17	57M8180	2	Bulb	-
18	RE170543	2	Lamp	-
19	57M7254	2	Elec. Connector Housing	(ALSO ORDER (2) R104846, (2) 57M7258 AND 57M7289)
20	19M9030	2	Cap Screw	M6 X 65
21	24M7100	2	Washer	6.600 X 22 X 2 mm
22	R161280	1	Shield	LH
22	R161279	1	Shield	RH
23	12H301	2	Lock Washer	1/2"
24	14H865	2	Nut	1/2"
25	14M7547	2	Lock Nut	M6
26	57M7256	2	Elec. Connector Housing	(ALSO ORDER (2) R104846, (2) 57M7258 AND 57M7289)
27	RE163804	2	Wiring Harness	-
28	R78053	2	Electrical Connector Assy	(ALSO ORDER (2) R78061 AND (2) R78063)
29	RE12363	1	Electrical Connector Assy	(ALSO ORDER (2) R78060 AND (2) R78063)
30	RE58689	2	Wiring Harness	-
31	RE163780	1	Support	LH
31	RE163783	1	Support	(FENDER EXTENSION) LH
31	RE163781	1	Support	RH
31	RE163782	1	Support	(FENDER EXTENSION) RH
32	RE176547	1	Kit	(SUB RE184187) (FI)
32	RE223697	1	Field Installation Kit	(FENDER EXTENSION) (SUB FOR RE184188 OR RE176548) (FI)
