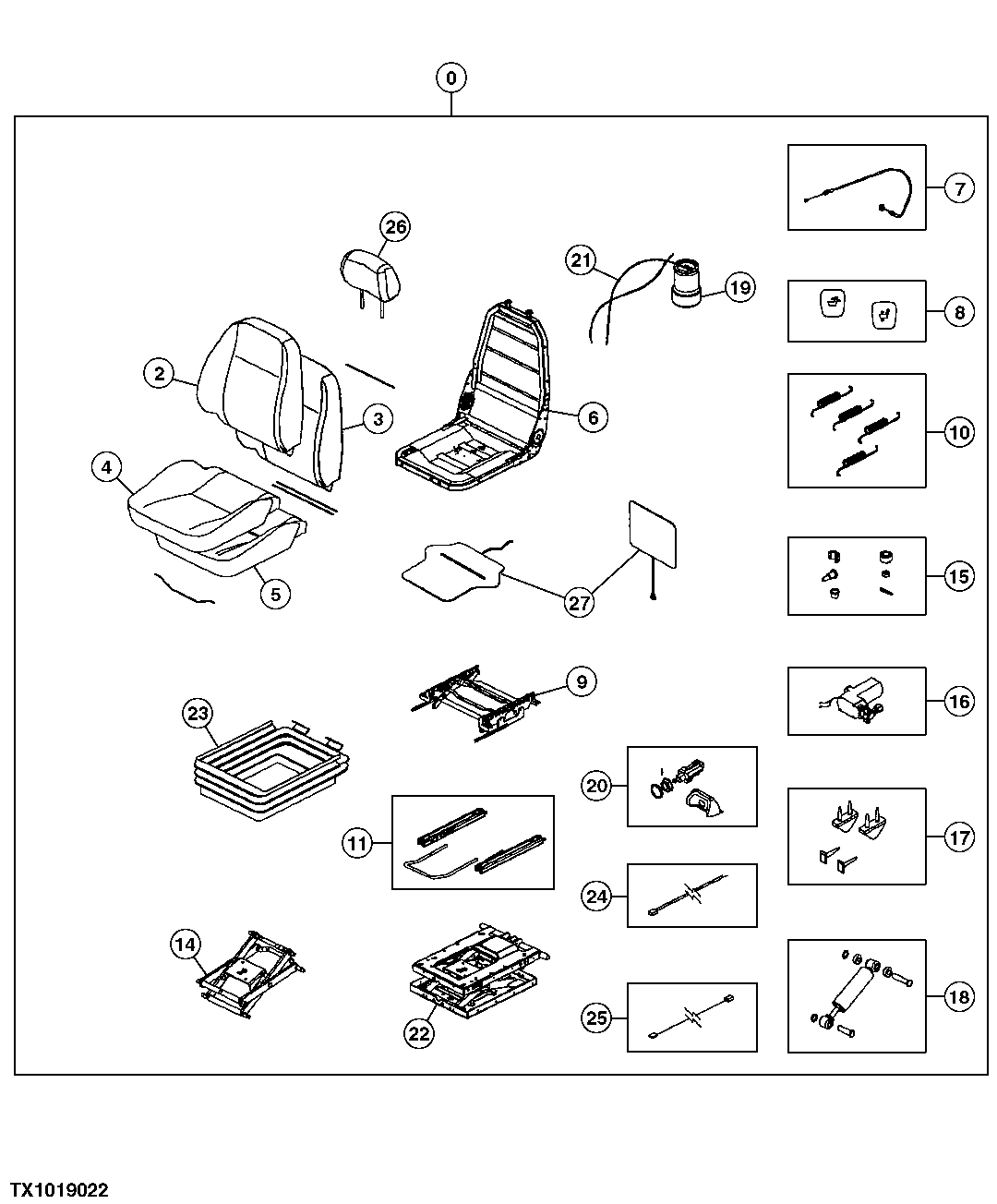

Seat and Seat Suspension Assembly (Air)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4658114R	1	Seat Assembly	-
2	4486190R	1	Cover	SUB FOR AT309263
3	4392796R	1	Pad	SUB FOR AT309264
4	AT403886	1	Cushion Cover	Fabric, SUB FOR AT195278 AND 4486191R
5	AT195279	1	Pad	-
6	-	1	Part 6	SUB FOR AT322187 4392799R NLA
7	AT417627	1	Seat Adjustment Cable Kit	SUB FOR FYA00008917, AT216522 NLA, 4392800R NA
8	AT329374	1	Handle	-
9	4392801R	1	Stand	-
10	4370199R	1	Spring	SUB FOR AT195287
11	4660734R	1	Adjuster	SUB FOR 4392807R OR 4660734
14	AT417642	1	Lever Kit	SUB FOR AT329367
15	AT329372	1	Bearing Kit	-
16	AT329369	1	Compressor	ALSO ORDER AT336932
16	AT336932	1	Wiring Lead	Air Compressor Not Illustrated, SUB FOR AT334782
17	4392805R	1	Stop	SUB FOR AT322189
18	4392803R	1	Torsional Damper	-
19	AT329373	1	Air Spring Seat Kit	-
20	4660732R	1	Valve	SUB FOR AT329371
21	AT329370	1	Pipe Kit	-
22	AT329379	1	Seat Suspension	-
23	AT329380	1	Seat Suspension Boot Kit	-
24	AT329377	1	Seat Adjustment Cable Kit	-
25	AT329381	1	Wiring Harness	Heater Wiring Harness
26	4486192R	1	Head Restraint	SUB FOR AT329368
27	AT329366	1	Heater	-

Seat and Seat Suspension Assembly (Air)

Нет текстового описания
