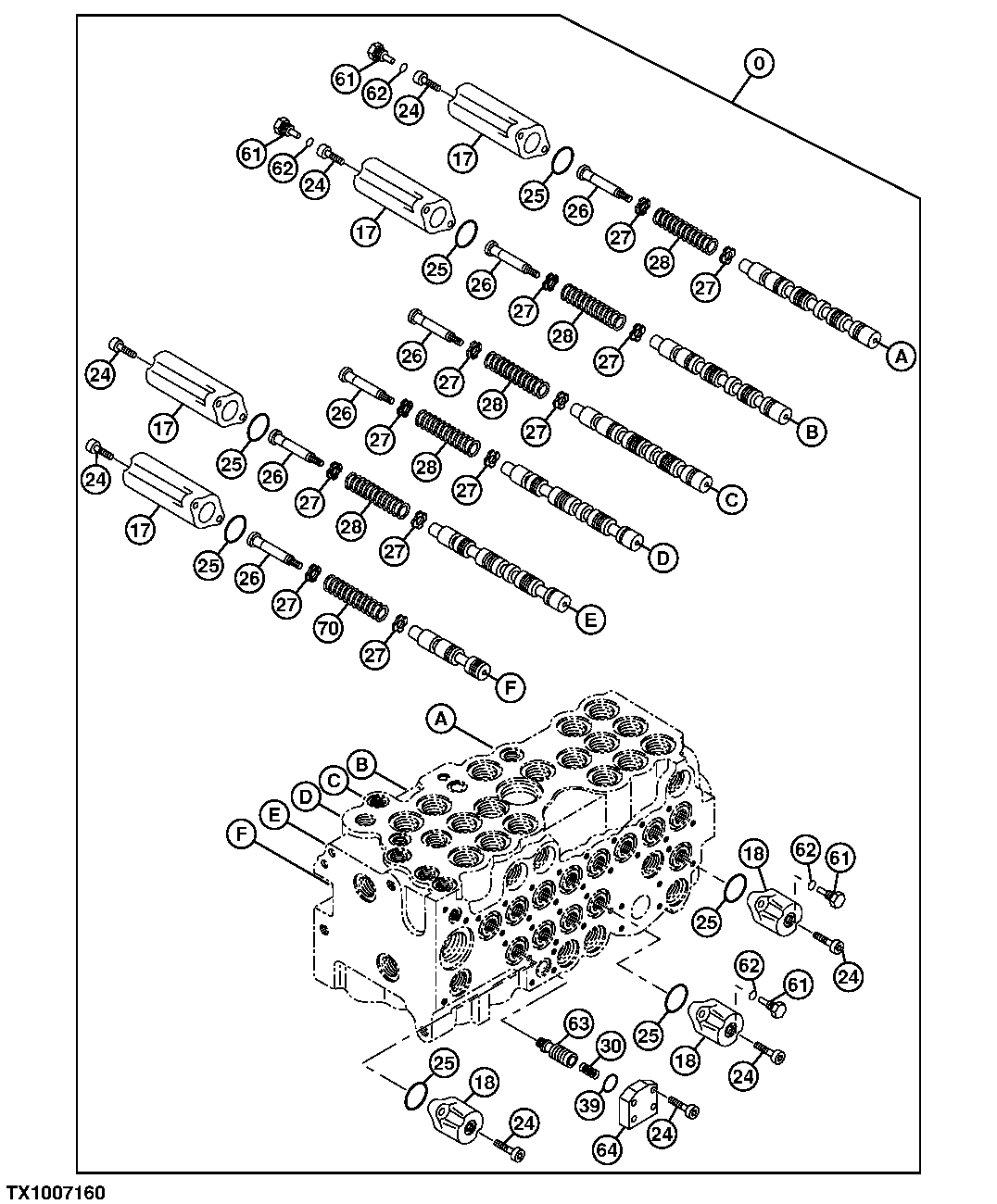

CONTROL VALVE (6-SPOOL SIDE)- CONTINUED

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4446245	1	Hyd Actuated Control Valve	(ADDITIONAL COMPONENTS LISTED ON PREVIOUS AND FOLLOWING PAGES)
17	-	4	Part 2	( 0828204 NLA), (SUB <service-part qty="1">0852701</service-part> (UNITS BUILT BEFORE JULY 7 2008))
17	0852701	4	Cap	(UNITS BUILT JULY 7 2008 AND AFTER)
18	-	4	Part 4	( 0828205 NLA), (SUB <service-part qty="1">1184611</service-part> (UNITS BUILT BEFORE JULY 7 2008))
18	1184611	4	Cap	(UNITS BUILT JULY 7 2008 AND AFTER)
24	-	18	Part 6	( AT200303 NLA)
24	19M7603	18	Screw	M6 X 20
24	12M7006	18	Lock Washer	6 mm
24	24M7105	18	Washer	6 X 12 X 1.600 mm
25	CH17653	7	Packing	(SUB FOR 970486)
26	0714403	6	Holder	-
27	0332904	12	Retainer	-
28	0332905	5	Spring	-
30	0668007	1	Spring	-
39	CH12329	1	Packing	(SUB FOR 4506420)
61	0825203	4	Pipe Plug	-
62	M800650	4	Packing	(SUB FOR 957366)
63	0828201	1	Poppet	-
64	0828202	1	Plate	-
70	0828203	1	Spring	-

CONTROL VALVE (6-SPOOL SIDE)- CONTINUED
