AUXILIARY HYDRAULIC LINE KIT (ARM LINES)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	38H1215	4	Adapter Fitting	-
3	AT197375	2	Ball Cock Valve	-
5	U12547	2	O-Ring	-
8	AT302490	2	Hydraulic Hose	(FOR USE WITH 2.12M ARM) (FOR 1.62M ARM, ALSO ORDER (2) <service-part >AT303616</service-part>) Fabricate
8	AT303616	2	Hydraulic Hose	(NOT INCLUDED IN KIT) (FOR USE WITH 1.62M ARM ONLY) Fabricate
12	4190126	4	Clamp	-
13	19M7362	4	Cap Screw	M12 X 55
13	24M7043	4	Washer	12 X 25 X 3 mm
14	9735916	4	Channel	-
15	38H1418	2	Fitting	-
16	T77858	4	O-Ring	-
39	U12547	2	O-Ring	-
40	R27267	2	Fitting	(3/4", 37°)
40	T34433	2	ADAPTER FITTING	(1", 37°)
40	38H1215	2	Adapter Fitting	(ALSO ORDER <service-part qty="1">T77858</service-part>)(3/4" ORFS)
40	38H1179	2	Adapter Fitting	(ALSO ORDER <service-part qty="1">T76938</service-part>)(1" ORFS)
40	AT83306	2	Adapter Fitting	(1" SAE, MALE)
41	R29936	2	O-Ring	-
42	AT186111	1	Quick Coupler	(1" FEMALE) (SCREW TOGETHER COUPLER)
42	-	1	Part 20	( AT189410 NLA)
43	AT186112	1	Quick Coupler	(1" MALE) (SCREW TOGETHER COUPLER)
43	-	1	Part 22	( AT189409 NLA)
44	AT186113	1	Cap	-
45	AT186114	1	Plug	-
46	X1JS78-20-16	2	Hose Fitting	HOSE END - STRAIGHT - 1 1/4" X 1"
46	X1J978-20-16	2	Elbow Fitting	HOSE END - 90° - 1 1/4" X 1"
47	AT117365	2	Hydr. Quick Coupler Plug	MALE QUICK COUPLER (-12) 1 1/16" SAE O-RING
47	AT120498	2	Coupling	MALE QUICK COUPLER (-16) 1 5/16" SAE O-RING
48	AT117364	2	Hydr. Quick Coupler Socket	FEMALE QUICK COUPLER (-12) 1 1/16" SAE O-RING
48	AT120499	2	Coupling	FEMALE QUICK COUPLER (-16) 1 5/16" SAE O-RING
90	-	1	Part 31	Auxiliary Hydraulic Line Kit Includes All Components Necessary To Add Auxiliary Lines Additional Components On Separate Pages, (WHOLE GOODS) (AT335141 NLA)

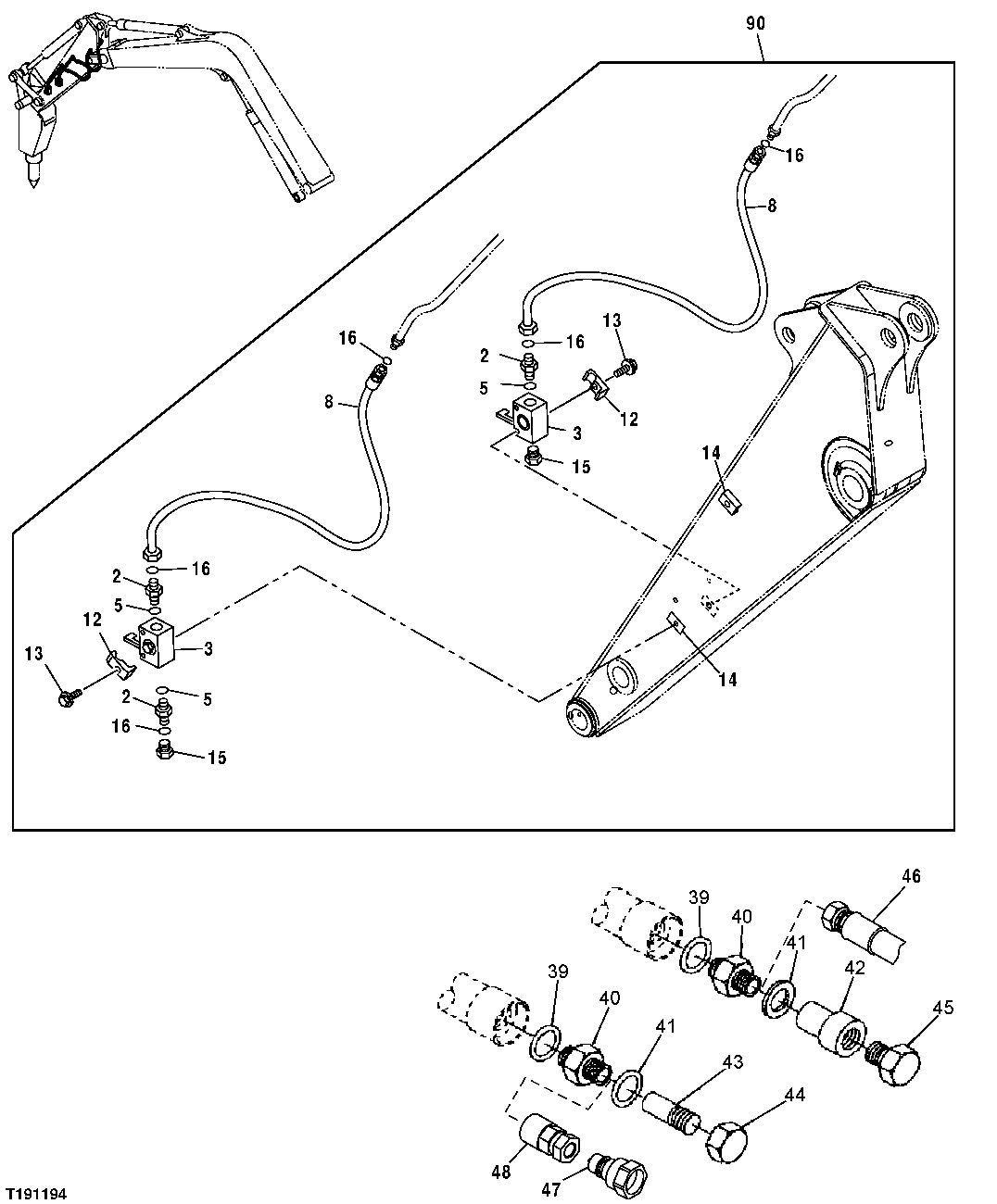

AUXILIARY HYDRAULIC LINE KIT (ARM LINES)
