AIR CONDITIONER COMPRESSOR, CONDENSOR, & RECEIVER-DRYER

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	4448179	1	Receiver-Dryer	INCLUDES HIGH/LOW PRESSURE SWITCH
2	4456130	1	Compressor	-
3	4339373	1	Clamp	-
4	19M7881	4	Screw	M8 X 20, SUB FOR J900820 OR 19M7139; J260820 NLA
4	24M7055	4	Washer	8.400 X 16 X 1.600 mm, SUB FOR A590108
6	J780800	4	Bolt	-
7	-	4	Part 9	8 mm, 12M7065 NLA
8	24M7055	4	Washer	8.400 X 16 X 1.600 mm, SUB FOR A590108
10	4612876	1	V-Belt	-
12	4355515	1	Bracket	-
18	19M7288	2	Cap Screw	M8 X 30, SUB FOR J900830
19	24M7055	2	Washer	8.400 X 16 X 1.600 mm, SUB FOR A590108
20	12M7065	2	Lock Washer	8 mm, SUB FOR A590908
21	14M7273	2	Nut	M8, SUB FOR J950008
22	24M7028	2	Washer	10.500 X 20 X 2 mm, SUB FOR A590110
23	4445865	1	Vapor Condenser	-
25	4445000	1	Hydraulic Hose	-
26	19M7298	1	Cap Screw	M8 X 35, SUB FOR J900835)( J260835 NLA
26	24M7055	1	Washer	8.400 X 16 X 1.600 mm, SUB FOR A590108
27	19M7874	2	Cap Screw	M6 X 30, SUB FOR J900630; J260630 NLA
27	24M7054	2	Washer	6.400 X 12 X 1.600 mm, SUB FOR A590106
29	4471426	1	Hydraulic Hose	-
30	19M7298	3	Cap Screw	M8 X 35, SUB FOR J900835; J260835 NLA
30	24M7055	3	Washer	8.400 X 16 X 1.600 mm, SUB FOR A590108
32	H77698	3	Tie Band	SUB FOR 4055312
34	R50454	2	Clamp	SUB FOR 4192034
35	19M7938	1	Cap Screw	M10 X 20, SUB FOR J901020; J271020 NLA
35	24M7346	1	Washer	11 X 20 X 2 mm, SUB FOR J222010
36	8089389	1	Bracket	-
37	4709907	1	Switch	High/Low Pressure
2A	4623639	1	Compressor	SUB FOR 4623639
2B	4623638	1	Clutch	-

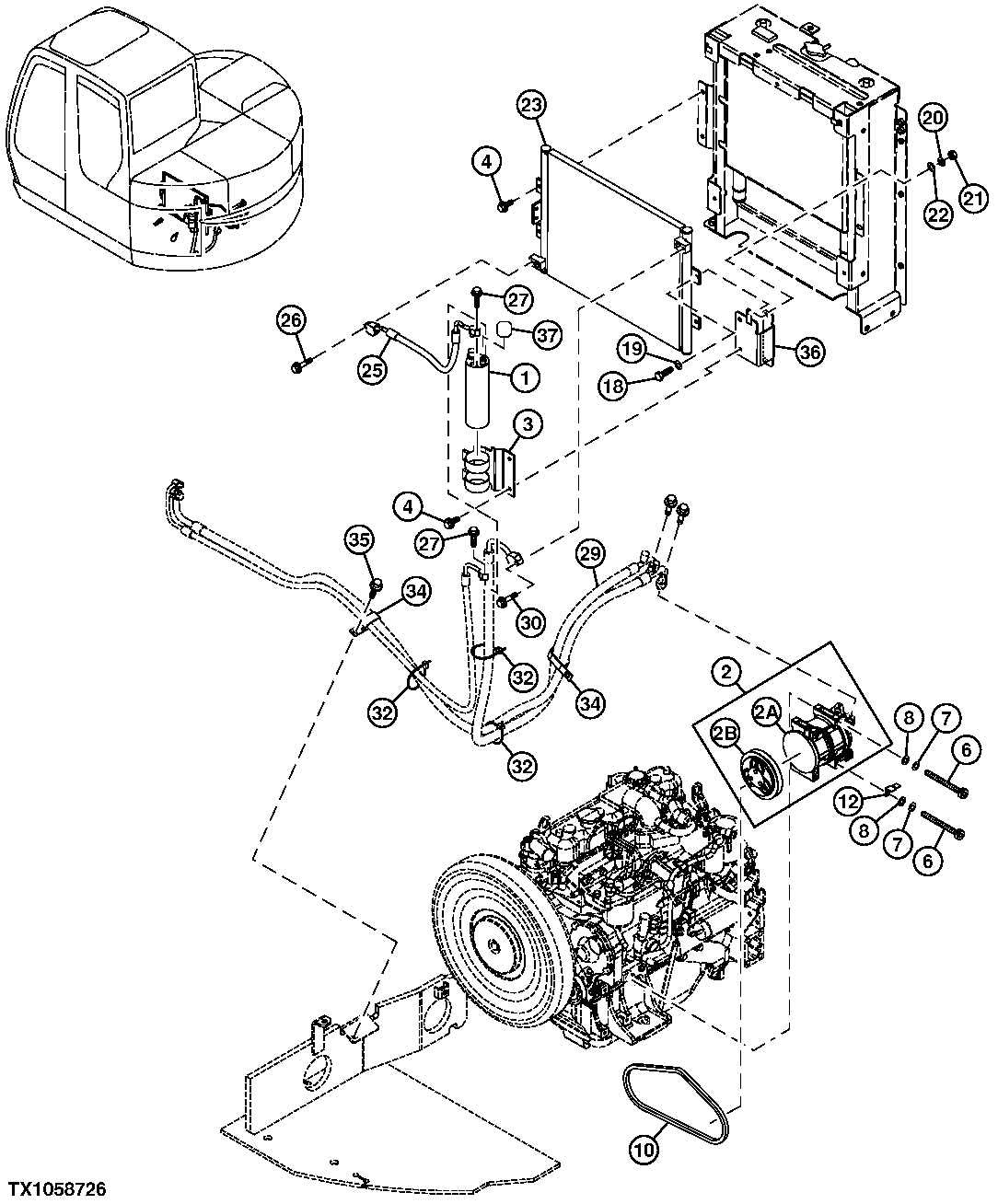

AIR CONDITIONER COMPRESSOR, CONDENSOR, & RECEIVER-DRYER
