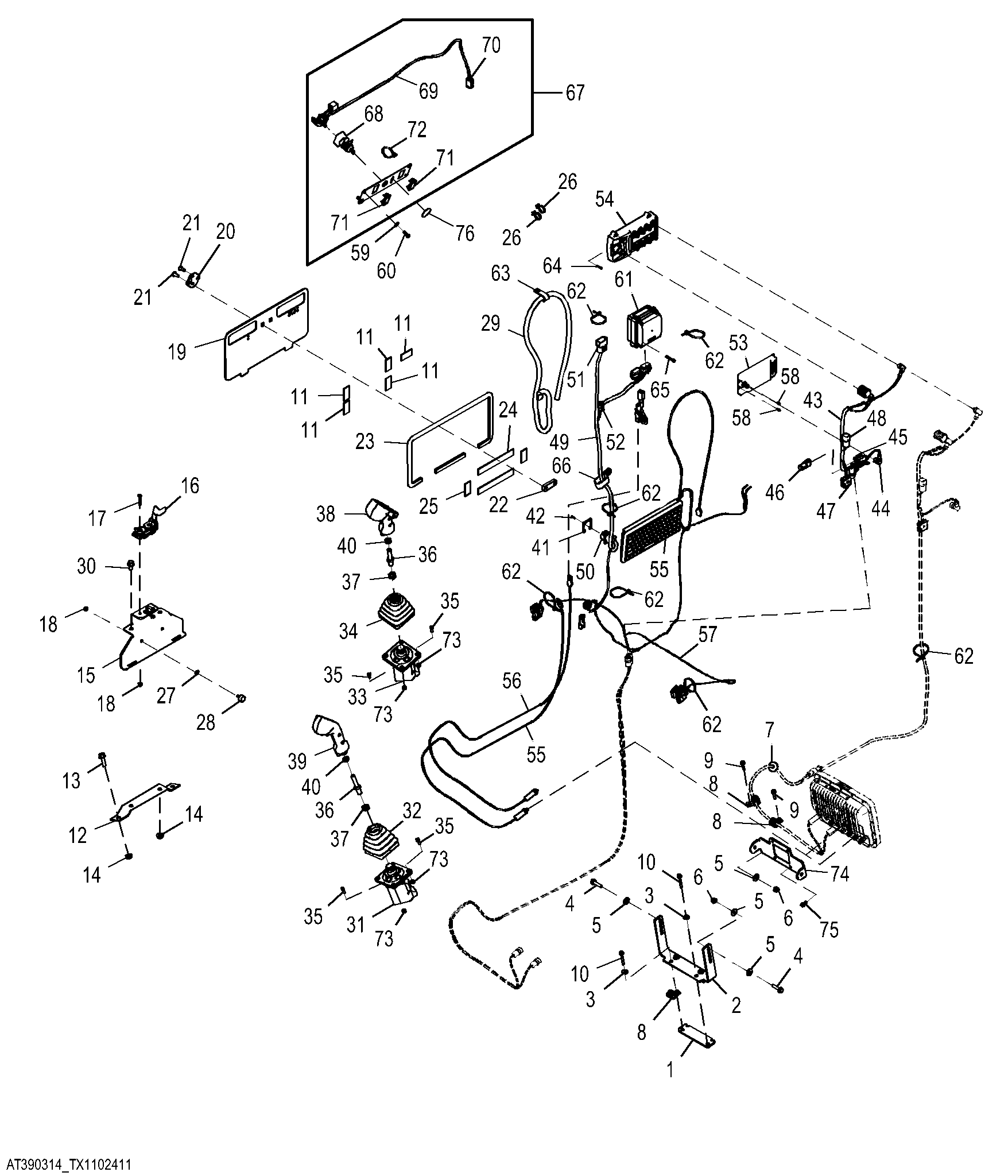

Timberrite™ (T30) System - Computer Mounting Hardware

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T231317	1	Bracket	-
2	T231316	1	Bracket	-
3	T134530	4	Washer	-
4	19M7897	2	Screw	M8 X 35
5	24M7298	4	Washer	8.400 X 25 X 2 mm
6	14M7396	2	Lock Nut	M8
7	T65643	1	Grommet	SUB FOR T164567
8	T76252	3	Clamp	-
9	19M7796	2	Screw	M6 X 30
10	19M8092	4	Screw	M6 X 50
11	-	5	Part 11	CTL 30 mm, MF T180494
12	T255930	1	Bracket	-
13	19M7835	2	Screw	M10 X 35
14	M142955	4	Lock Nut	-
15	T250356	1	Bracket	-
16	AT364072	1	Latch	-
17	21M7289	2	Screw	M6 X 40
18	14M7303	4	Flange Nut	M6
19	T250352	1	Plate	-
20	AT356910	1	Striker	-
21	19M7573	2	Screw	M8 X 20
22	T250355	1	Plate	-
23	-	1	Part 23	CTL 1006 mm, MF T58056
24	-	2	Part 24	CTL 100 mm, MF T180494
25	-	2	Part 25	CTL 30 mm, MF T180494
26	R44302	2	Tie Band	-
27	24H1287	2	Washer	9/32" X 5/8" X 0.065"
28	H158596	2	Bumper	-
29	-	1	Part 29	CTL 4572 mm, MF T344595
30	19M7784	2	Screw	M10 X 20
31	AT348334	1	Hydr./Pilot Control Valve	-
32	F433669	1	Boot	-
33	AT348338	1	Hydr./Pilot Control Valve	-
34	F433669	1	Boot	-
35	19M8553	8	Screw	M6 X 16
36	F295311	2	Adapter Fitting	-
37	14M7157	2	Nut	M14
38	AT348570	1	Control Lever	Components Listed On Separate Page
39	AT348569	1	Control Lever	Components Listed On Separate Page, SUB FOR AT365135
40	14M7415	2	Nut	M12
41	L155075	1	Plate	-
42	37M7095	2	Screw	-
43	AT390590	1	Wiring Harness	Control Panel Harness
44	57M12957	4	Elec. Connector Housing	-
45	57M7627	1	Electrical Connector Assy	-
46	57M8131	1	Electronic Terminator	-
47	57M7634	1	Electrical Connector Assy	-
48	57M7629	1	Elec. Connector Housing	-
49	AT390651	1	Wiring Harness	Cab Harness
50	57M7476	1	Elec. Connector Housing	-
51	57M7633	1	Electrical Connector Assy	-
52	57M7627	1	Electrical Connector Assy	-
53	F630900	1	Module	-
54	F066798	1	Module	-
55	F064443	1	Computer Accessory	-
56	F671441	1	Wiring Harness	-
57	AT434114	1	Wiring Harness	Chair Harness, SUB FOR AT390865
58	37M7082	4	Screw	M3 X 10
59	24H1287	4	Washer	9/32" X 5/8" X 0.065"
60	21M7267	4	Screw	M6 X 20
61	AT391284	1	Fuse Box	-
62	R44302	7	Tie Band	-
63	AH96317	1	Clip	-
64	37M7356	4	Screw	-
65	CE19678	4	Cap Screw	-
66	811819300	1	Clamp	-
67	AT448097	1	Harness Kit	-
68	AT429568	1	Rotary Switch	-
69	AT407505	1	Wiring Harness	Key Switch Harness
70	57M7630	1	Electrical Connector Assy	-
71	M115279	2	Plug	-
72	R44302	1	Tie Band	-
73	14H786	8	Nut	1/4"
74	T356580	1	Bracket	-
75	19M7775	4	Screw	M6 X 16
76	T186793	1	Label	Gray Circle
