Открытый узел

MEASURING WHEELS HYDRAULIC PRESSING ( OPTIONAL EQUIPMENT ), 00FW00133... [D07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

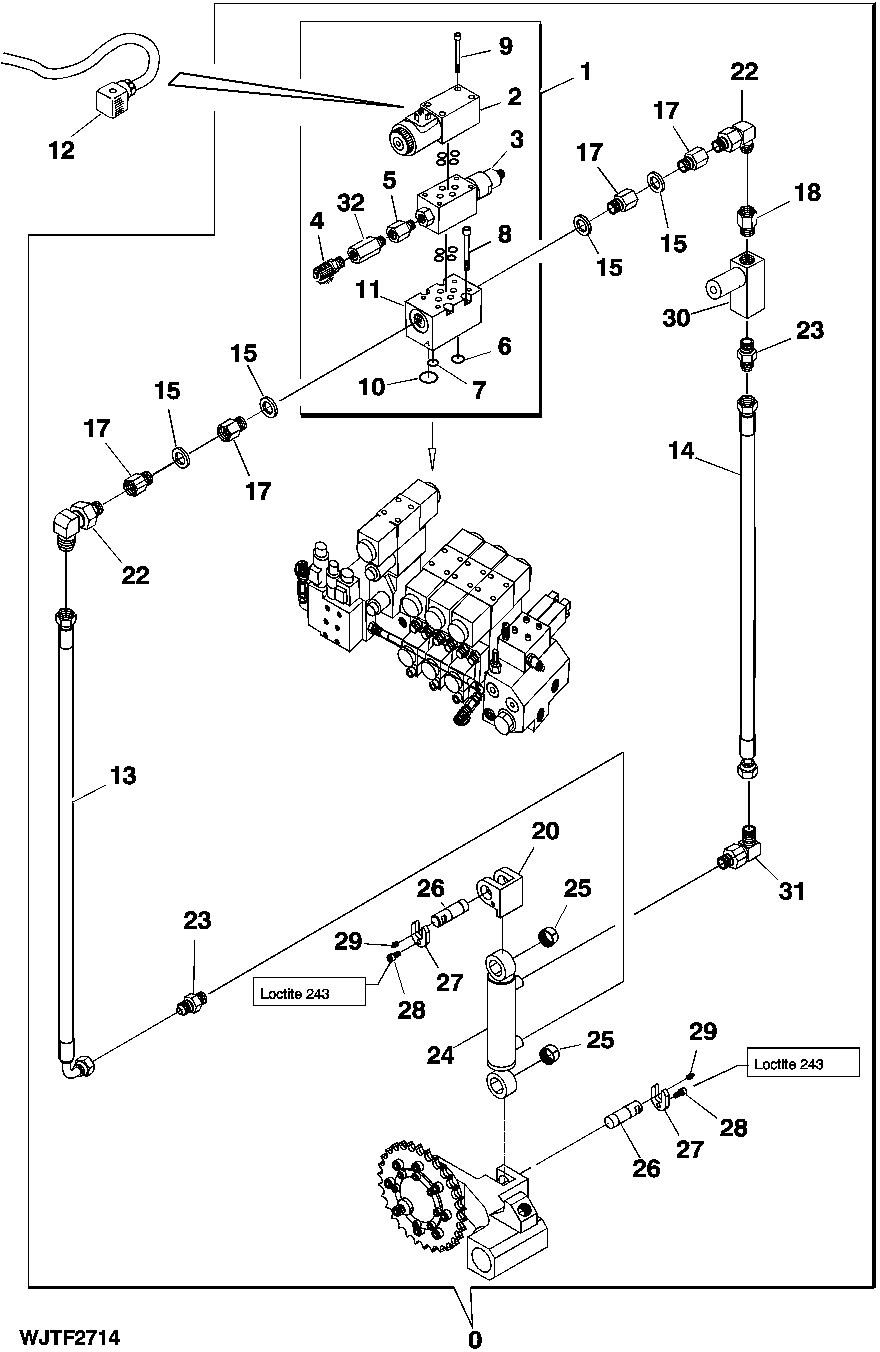

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	F066729	1	MEASURING WHEEL	INCL. ITEM 1-11, 13-31
1	F034546	1	BLOCK SECTION ASSY	INCLUDING ITEM 2...11
2	F072158	1	Solenoid Valve	-
2	F054657	1	SOLENOID	-
2	F071970	1	Coil Kit	-
2	F056643	1	NUT	-
2	F071971	1	Nut	-
2	F024379	1	SOLENOID VALVE	-
3	F005562	1	RELIEF VALVE	-
4	F004419	1	MEASURING NIPPLE	-
5	F011299	1	NIPPLE	-
6	F018771	1	O-RING	-
7	F003285	1	O-RING	-
8	F016303	4	SCREW	-
9	F008751	4	SCREW	-
10	F018768	1	O-RING	-
11	F023444	1	BLOCK	-
13	F046606	1	Hydraulic Hose	L=600 MM, (REPLACES F057065)
14	F046499	1	HOSE-ASSY	L=800 MM, (REPLACES F057074)
15	F005166	4	SEAL RING	-
17	F033375	4	CONNECTION	-
18	F023030	1	CONNECTION	-
20	F064030	1	Bracket	WELDING
22	F024402	2	Elbow Fitting	-
23	F005057	2	Fitting	-
24	F062163	1	HYDRAULIC CYLINDER	-
25	F062620	2	BEARING	-
26	F062609	2	SHAFT	-
27	F062160	2	LOCK PLATE	-
28	F047731	2	CAP SCREW	-
29	F003728	2	GREASE NIPPLE	-
30	F008675	1	CHECK VALVE	-
31	F024599	1	Elbow Fitting	-
32	F071771	1	Fitting	-
..	F023446	1	SEAL KIT	-
12A	F062610	1	CABLE	L=800 MM, TJ3000 MK1, SIAMESED
12B	F062611	1	CABLE	L=710 MM, MK2/ LOTTA, SIAMESED
12C	F062612	1	CABLE	L=460 MM, TM10, SIAMESED
12D	F065257	1	WIRING HARNESS	L=480 MM, MK2/ TM300
12E	F065258	1	WIRING HARNESS	L=460 MM, TM10

MEASURING WHEELS HYDRAULIC PRESSING ( OPTIONAL EQUIPMENT ), 00FW00133... [D07]
