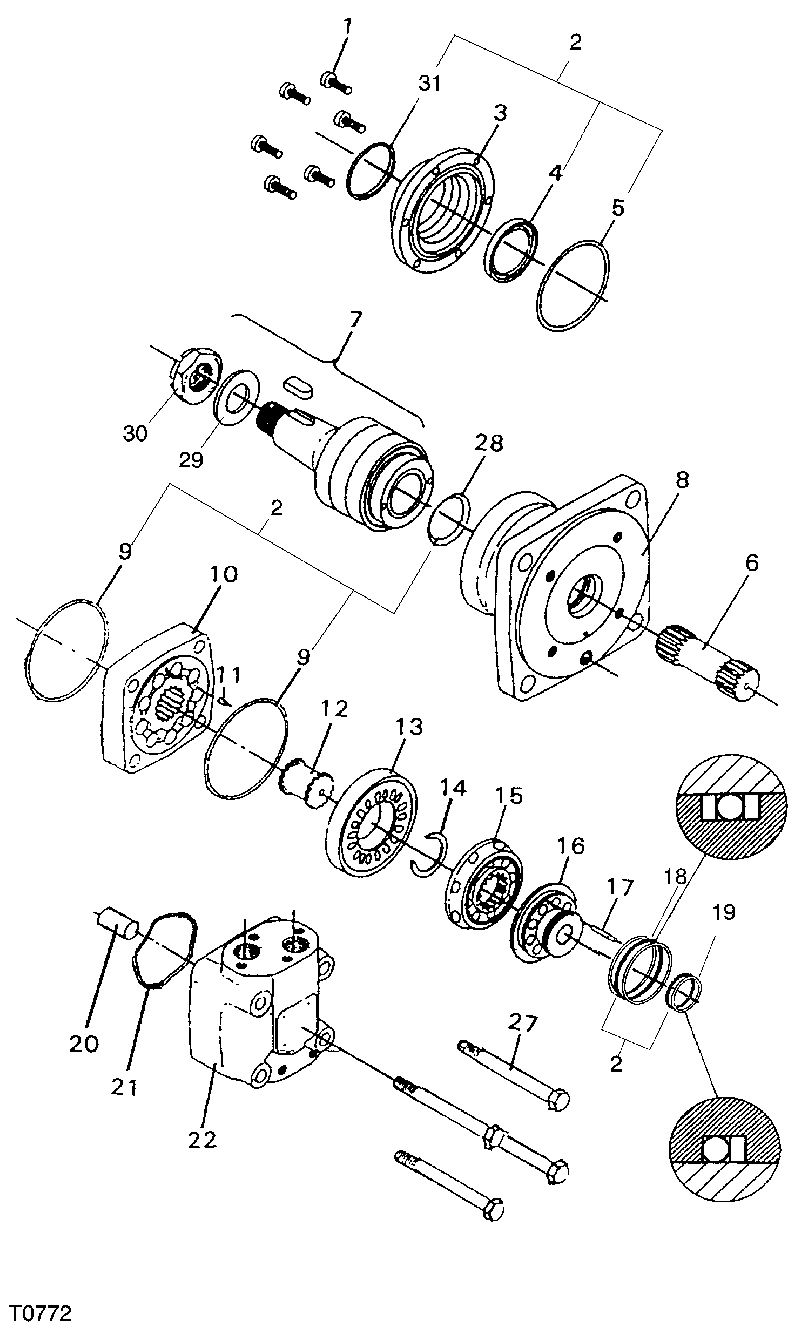

HYDRAULIC MOTOR, FEED ROLLERS DANFOSS OMVW 630, 800 [D15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	F069034	1	HYDRAULIC MOTOR	OMVW 630 CC
0	F034495	1	HYDRAULIC MOTOR	OMVW 630 CC
0	F069035	1	HYDRAULIC MOTOR	OMVW 800 CC
0	F057659	1	HYDRAULIC MOTOR	OMVW 800 CC
1	F003411	6	SCREW	-
1	F066116	6	Screw	-
2	F024795	1	SEAL KIT	INCL. ITEM 4, 5, 9, 18, 19, 28, 31, (REPLACES F032059, F059201)
2	F069037	1	SEAL KIT	INCL. ITEM 4, 5, 9, 18, 19, 28, 31
3	F024791	1	CAP	-
4	F035130	1	SEAL	-
4	F069042	1	Seal	-
5	F030646	1	O-RING	-
6	F062351	1	DRIVE SHAFT	630 CC
6	F066112	1	SHAFT	800 CC
7	F024792	1	SHAFT ASSY	INCL. ITEM 29, 30, 32
8	F024794	1	BEARING COVER	-
9	F030646	2	O-RING	-
10	F035131	1	GEAR	630 CC
10	F066113	1	GEAR CASE	800 CC
11	F035132	1	GUIDING PIN	-
12	F035133	1	GUIDE	-
13	F035134	1	FLAT PIECE	-
14	F035135	1	RING	-
15	F035136	1	VALVE PLATE	-
16	F035137	1	FLAT PIECE	-
16	F049667	1	PLATE	-
16	F066114	1	PLATE	800 CC
17	F049666	1	GUIDING PIN	(REPLACES F035138), 5; L=14 MM
18	F035139	1	O-RING	-
18	F035140	2	SUPPORT RING	-
19	F035141	1	O-RING	-
19	F035142	1	SUPPORT RING	-
20	F035143	1	SPACER	-
21	F049668	2	SPRING WASHER	-
22	F052838	1	VALVE HOUSING	MANUFACTURED BEFORE WEEK 27. 1997
22	F035145	1	VALVE HOUSING	MANUFACTURED AFTER WEEK 27. 1997
27	F035150	4	SCREW	630 CC, L=160 MM
27	F066115	4	SCREW	800 CC, L=180 MM
28	F012682	1	SEAL	-
29	F024743	1	WASHER	-
30	F024740	1	CASTLE NUT	-
31	F035129	1	SEAL	-
32	F024739	1	WEDGE	-

HYDRAULIC MOTOR, FEED ROLLERS DANFOSS OMVW 630, 800 [D15]
