Большое обновление пильных узлов

Смотреть

Тип техники

Бренд

Машина

Большое обновление пильных узлов

Смотреть

Открытый узел

Multipurpose Bucket and Pins Field Kit

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT464291	1	Multi-Purpose Bucket	WHOLE GOODS
2	AT403734	1	Multi-Purpose Bucket	CA Components on Seperate Page
3	T72414	3	Bushing	-
4	AT333780	4	Pin	-
5	T176064	7	Bushing	-
6	19M7489	7	Cap Screw	M16 X 45
7	AT469982	2	Pin	-
8	JD7759	6	Lubrication Fitting	-
9	T226524	4	Shim	TK = 1.016 mm
10	T226525	4	Shim	TK = 1.575 mm
11	T230543	4	Shim	TK = 3.175 mm
12	AT341091	4	Seal	-
13	AT353853	1	Pin Fastener	-
14	T242247	1	Plate	-
15	24M7097	3	Washer	17 X 28 X 2.500 mm
16	19M8295	3	Cap Screw	M16 X 55
17	T223721	4	Shim	TK = 3.175 mm
18	T224915	4	Shim	TK = 1.016 mm
19	AT330664	2	Ring	-
20	24M7027	2	Washer	5.300 X 10 X 1 mm
21	19M9304	1	Cap Screw	M5 X 90
22	14M7572	1	Lock Nut	M5
23	14M7400	3	Lock Nut	M10
24	19M7805	3	Screw	M10 X 45
25	19M7807	4	Screw	M10 X 60
26	28H3383	3	Bushing	0.493" X 0.675" X 3/4"
27	T142128	4	Clamp	-
28	U46753	12	Hose Clamp	-
29	19M7804	3	Screw	M10 X 40
30	24H1263	2	Washer	1-1/4" X 2" X 0.060"
31	28H1522	3	Spacer	0.493" X 0.675" X 11/16"
32	38H5004	1	Adapter Fitting	-
33	T77932	1	O-Ring	-
34	51M7045	1	O-Ring	19.300 X 2.200 mm
35	38H5242	1	Tee Fitting	-
36	T77858	3	O-Ring	-
37	AT462579	1	Hydraulic Hose	-
38	T76938	1	O-Ring	-
39	AT462580	1	Hydraulic Hose	-
40	AT462581	1	Hydraulic Hose	-
41	AT462582	1	Hydraulic Hose	-
42	AT462583	1	Hydraulic Hose	-
43	T78707	2	Nut	-
44	AHC17848	2	Hydraulic Cylinder	Components on Seperate Page
45	38H5385	1	Adapter Fitting	-
46	T77932	1	O-Ring	-
47	AT464461	1	Line	-
48	AT464462	1	Line	-
49	AT462584	1	Hydraulic Hose	-
50	T76938	1	O-Ring	-
51	AT462584	1	Hydraulic Hose	-
52	AT462585	1	Hydraulic Hose	-
53	T76938	1	O-Ring	-
54	38H5018	1	Elbow Fitting	-
55	51M7045	1	O-Ring	19.300 X 2.200 mm
56	T77932	1	O-Ring	-
57	AT397114	1	Guard	-
58	AT397113	1	Guard	-
59	24M7028	8	Washer	10.500 X 20 X 2 mm
60	19M7550	8	Cap Screw	M10 X 35
61	T76938	1	O-Ring	-

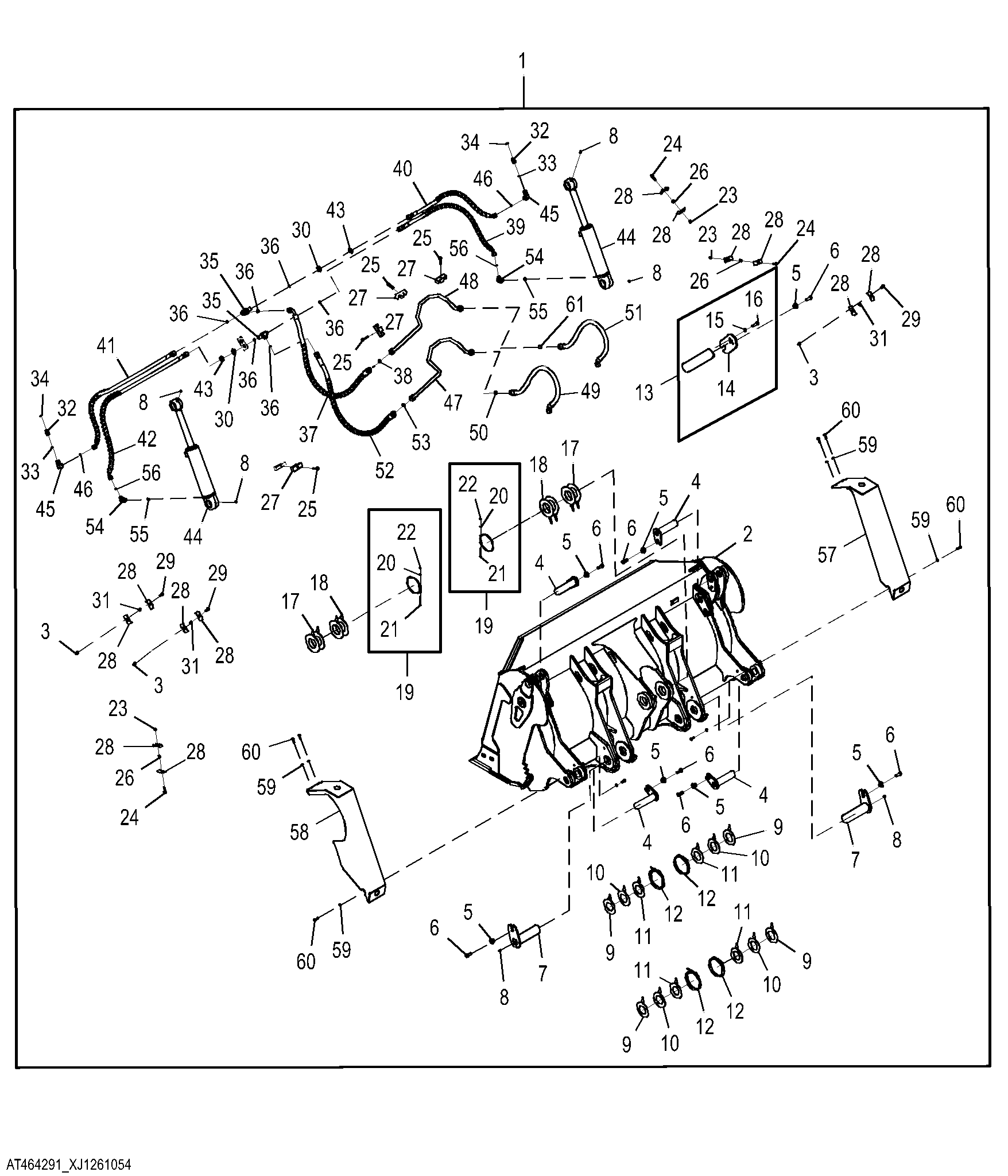

Multipurpose Bucket and Pins Field Kit

Нет текстового описания
