Открытый узел

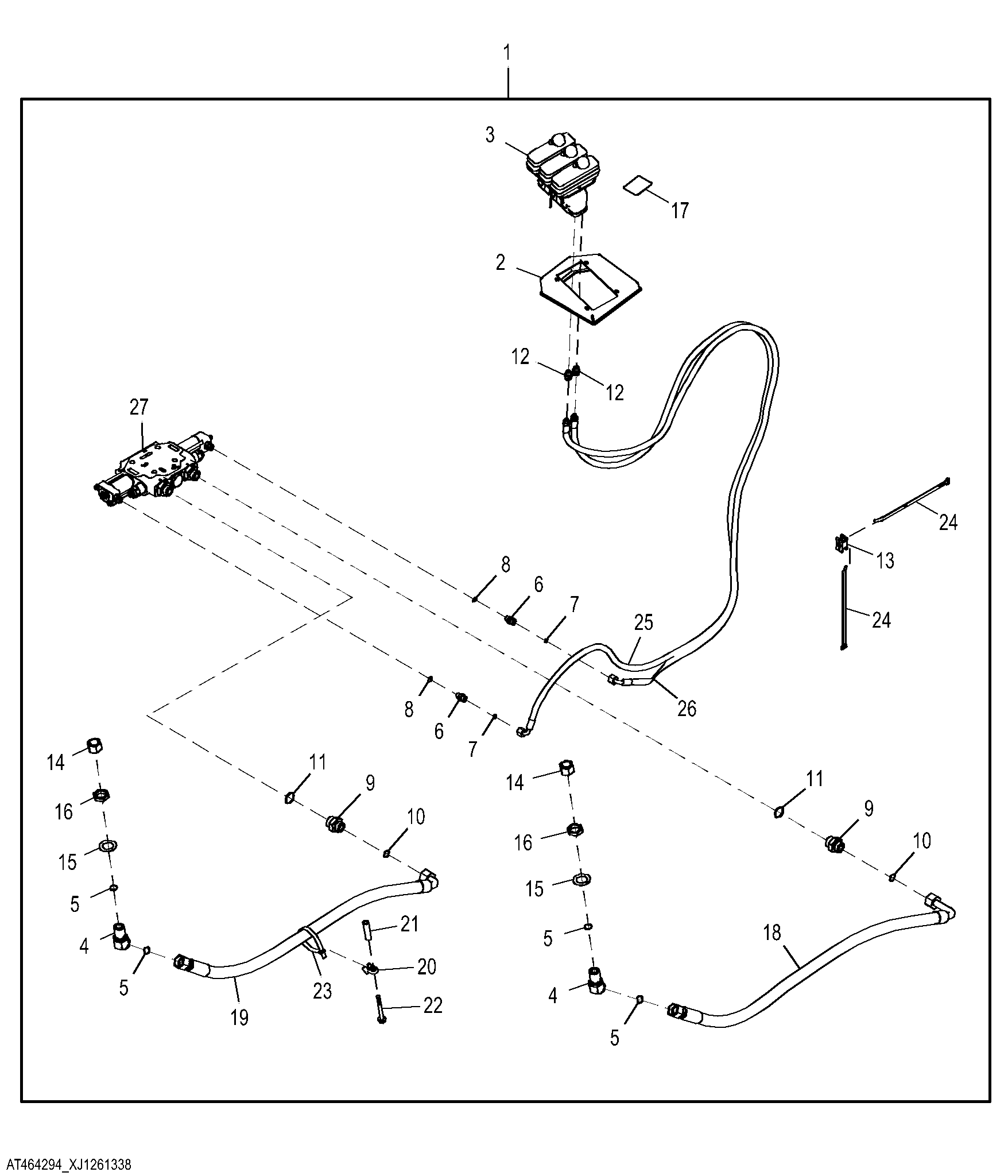

Front Auxiliary Hydraulic Kit, 3 Lever

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT464294	1	Valve Kit	WHOLE GOODS
2	AT357442	1	Plate	-
3	AT359448	1	Hydr./Pilot Control Valve	Components on Separate Page
4	38H5395	1	Adapter Fitting	-
5	T77858	2	O-Ring	-
6	38H3160	1	Adapter Fitting	-
7	T77613	1	O-Ring	-
8	R26448	1	O-Ring	-
9	38H3194	1	Adapter Fitting	-
10	T77858	1	O-Ring	-
11	R29936	1	O-Ring	-
12	62H1001	2	Adapter Fitting	-
12	AT193365	1	Seal Kit	-
13	AN209168	1	Swivel	-
14	38H5456	2	Fitting	-
15	24H1263	2	Washer	1-1/4" X 2" X 0.060"
16	38H5094	2	Nut	1-3/16"
17	T289465	1	Label	-
18	AT462656	1	Hydraulic Hose	To Solenoid Hydraulic Valve
19	AT462657	1	Hydraulic Hose	To Solenoid Hydraulic Valve
20	N380408	1	Clamp	-
21	T238043	1	Bushing	SUB FOR 28H3413
22	19M7811	1	Screw	M10 X 90
23	H224073	1	Tie Band	-
24	H224073	2	Tie Band	-
25	AT468763	1	Hydraulic Hose	Solenoid Hydraulic Valve to Pilot Control Valve, ALSO ORDER 62M1010
25	62M1010	1	Fitting	-
26	AT468762	1	Hydraulic Hose	Solenoid Hydraulic Valve to Pilot Control Valve, ALSO ORDER 62M1010
26	62M1010	1	Fitting	-
27	AT220174	1	Solenoid Hydraulic Valve	Components on Separate Page Adjustable Flow Fourth Function
27	AT210683	1	Stud	-
27	AT210951	1	Stud	-

Front Auxiliary Hydraulic Kit, 3 Lever
