Dual Axis Pilot Control With Front Auxiliary Hydraulic

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT375057	1	Plate	-
2	AT352262	1	Hydr./Pilot Control Valve	Components Listed On Separate Pages
3	AT360753	1	Handle	-
4	LW9591352	1	Control Lever	-
5	LW7381634	1	Clip	-
6	21M7198	1	Screw	M5 X 8
7	LW9289201	1	Cab Wiring Harness	-
8	LW10469932	1	Handle	-
9	AT218439	2	Socket Head Screw	-
10	LW10469918	1	Cover	-
11	LW9968581	1	Push Switch	-
12	62H1001	5	Adapter Fitting	SUB FOR AT187666; INCLUDES R26448
12	AT193365	1	Seal Kit	-
13	62H1054	1	Adapter Fitting	-
14	R26448	1	O-Ring	-
15	AT330179	1	Solenoid Hydraulic Valve	Includes Cartridge
15	AT330180	1	Solenoid Hydraulic Valve	Cartridge Only
15	AT423341	2	Solenoid Valve Coil	SUB FOR AT333811
15	F433465	1	Seal Kit	-
15	T225291	1	Nut	-
16	38H1160	4	Adapter Fitting	-
17	T77613	4	O-Ring	-
18	R26448	4	O-Ring	-
19	38H1016	2	Tee Fitting	-
20	T77613	4	O-Ring	-
21	R26448	2	O-Ring	-
22	AT351086	1	Adapter Fitting	-
23	N133783	1	Adapter Fitting	-
24	R26375	1	O-Ring	-
25	38H1060	1	Fitting	-
26	R26448	1	O-Ring	-
27	T77613	3	O-Ring	-
28	38H1004	1	Elbow Fitting	-
29	R26448	1	O-Ring	-
30	T77613	1	O-Ring	-
31	AT195957	1	Hydraulic Accumulator	-
32	T251905	1	Label	Pilot Control Plumbing Connections
33	T251938	1	Label	Joystick Control w/ MP Bucket
34	19M7862	4	Screw	M6 X 20
35	19M7834	2	Screw	M6 X 45
36	19M7810	2	Screw	M10 X 80
37	14M7303	8	Flange Nut	M6
38	AT400483	1	Flow Control Hyd. Valve	Components Listed On Separate Pages
39	38H1023	1	Tee Fitting	-
40	R26448	1	O-Ring	-
41	T77613	2	O-Ring	-

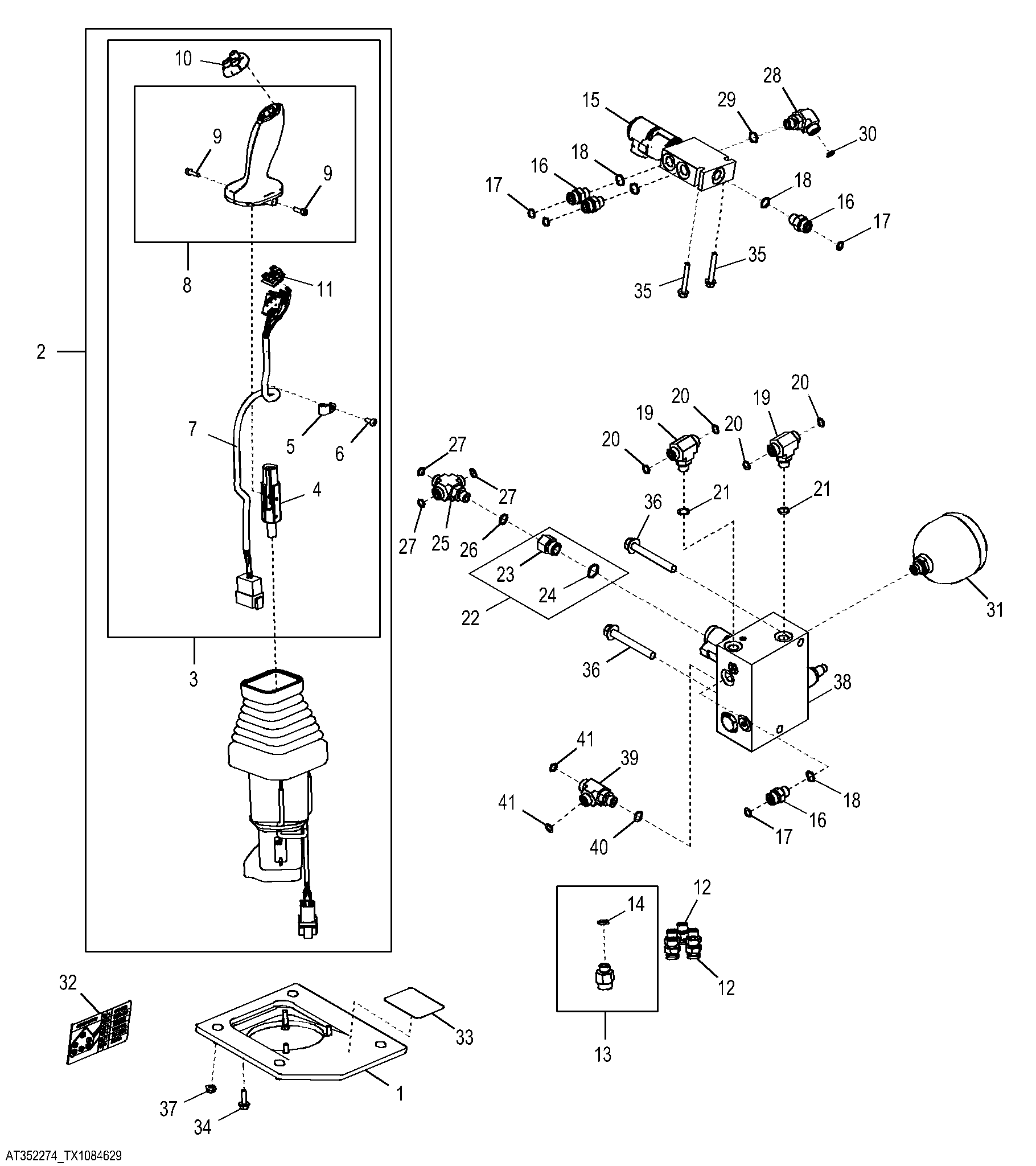

Dual Axis Pilot Control With Front Auxiliary Hydraulic

Нет текстового описания
