Dual Axis Front Auxiliary Hydraulics (Field Kit)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT464293	1	Valve Kit	Component on Separate Page
1	AT367837	1	Valve Kit	WHOLE GOODS, NLA, ORDER AT464293
2	AT408239	1	Hydraulic Hose	Fabricate, SUB FOR AT351614
3	AT408240	1	Hydraulic Hose	Fabricate, SUB FOR AT351615
4	AT380119	1	Hydraulic Hose	Fabricate
5	AT380122	1	Hydraulic Hose	Fabricate
6	AT352297	1	Hydraulic Hose	Fabricate
7	AT352296	1	Hydraulic Hose	Fabricate
8	AT423341	2	Solenoid Valve Coil	SUB FOR AT333811
8	T225291	1	Nut	-
8	F433465	1	Seal Kit	-
8	AT330180	1	Solenoid Hydraulic Valve	-
8	AT330179	1	Solenoid Hydraulic Valve	-
9	24H1263	2	Washer	1-1/4" X 2" X 0.060"
10	T78707	2	Nut	-
11	38H1490	1	Elbow Fitting	-
12	T77858	2	O-Ring	-
13	19M7834	2	Screw	M6 X 45
14	38H1160	1	Adapter Fitting	-
15	T77613	1	O-Ring	-
16	R26448	1	O-Ring	-
17	38H1194	1	Adapter Fitting	-
18	T77858	1	O-Ring	-
19	R29936	1	O-Ring	-
20	AN209168	1	Swivel	-
21	38H1004	1	Elbow Fitting	-
22	R26448	1	O-Ring	-
23	T77613	1	O-Ring	-
24	38H1016	1	Tee Fitting	-
25	T77613	2	O-Ring	-
26	R26448	1	O-Ring	-
27	28H3413	1	Bushing	0.423" X 0.675" X 2-1/2"
28	19M7811	1	Screw	M10 X 90
29	N380408	1	Clamp	-
30	H224073	3	Tie Band	-
31	AT220174	2	Solenoid Hydraulic Valve	Adjustable Flow Fourth Function

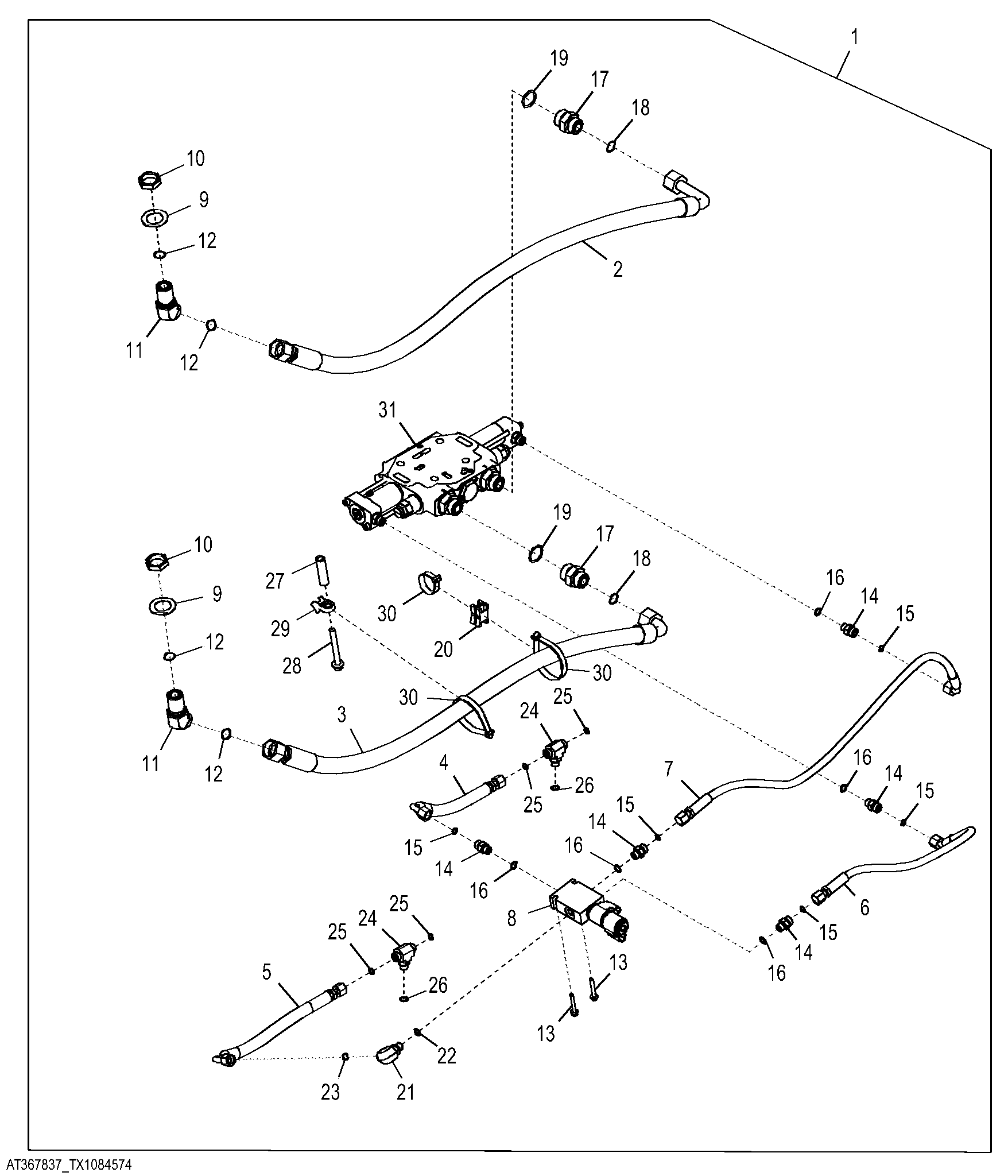

Dual Axis Front Auxiliary Hydraulics (Field Kit)
