Dual Axis Front Auxiliary Hydraulics, Field Kit

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT464293	1	Valve Kit	WHOLE GOODS
2	AT462656	1	Hydraulic Hose	To Solenoid Hydraulic Valve
3	AT462657	1	Hydraulic Hose	To Solenoid Hydraulic Valve
4	24H1263	2	Washer	1-1/4" X 2" X 0.060"
5	38H5094	2	Nut	1-3/16"
6	38H5395	1	Adapter Fitting	-
7	T77858	2	O-Ring	-
8	AT330180	1	Solenoid Hydraulic Valve	-
8	F433465	1	Seal Kit	-
8	T225291	1	Nut	-
8	AT330179	1	Solenoid Hydraulic Valve	Angle Control Includes Valve Body and Coils
9	19M7834	2	Screw	M6 X 45
10	38H3160	1	Adapter Fitting	-
11	T77613	1	O-Ring	-
12	R26448	1	O-Ring	-
13	38H3194	1	Adapter Fitting	-
14	T77858	1	O-Ring	-
15	R29936	1	O-Ring	-
16	AN209168	1	Swivel	-
17	38H3004	1	Adapter Fitting	-
18	R26448	1	O-Ring	-
19	T77613	1	O-Ring	-
20	38H3016	1	Tee Fitting	-
21	T77613	2	O-Ring	-
22	R26448	1	O-Ring	-
23	N380408	1	Clamp	-
24	T238043	1	Bushing	-
25	19M7811	1	Screw	M10 X 90
26	H224073	1	Tie Band	-
27	H224073	2	Tie Band	-
28	AT462230	1	Hydraulic Hose	To Solenoid Hydraulic Valve
29	AT462229	1	Hydraulic Hose	To Solenoid Hydraulic Valve
30	AT462254	1	Hydraulic Hose	-
31	AT462217	1	Hydraulic Hose	-
32	AT220174	1	Solenoid Hydraulic Valve	Adjustable Flow Fourth Function Components on Separate Page
32	AT210683	4	Stud	Stud Assembly for 4-Spool Control Valve
32	AT210951	4	Stud	Stud Assembly for 3-Spool Control Valve

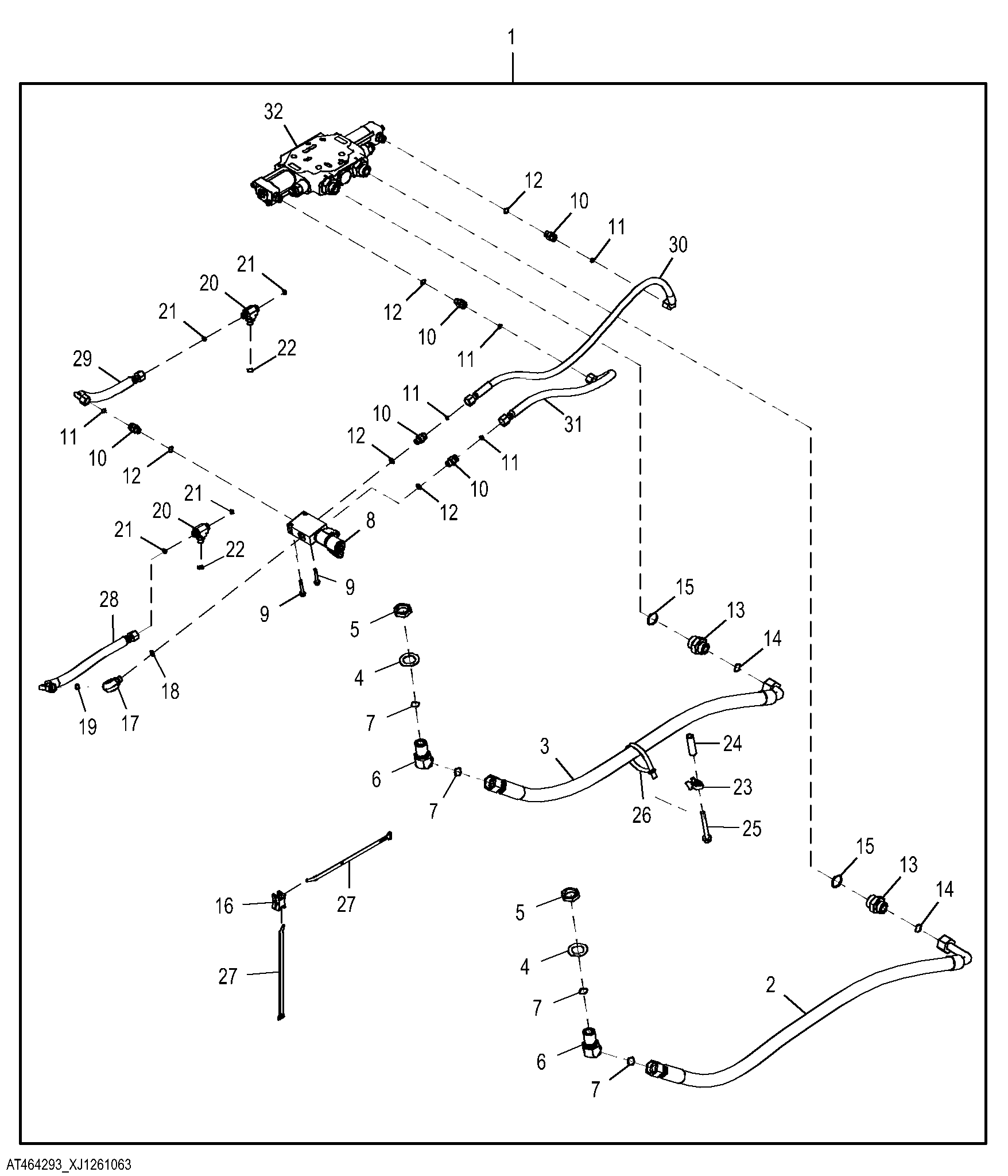

Dual Axis Front Auxiliary Hydraulics, Field Kit
