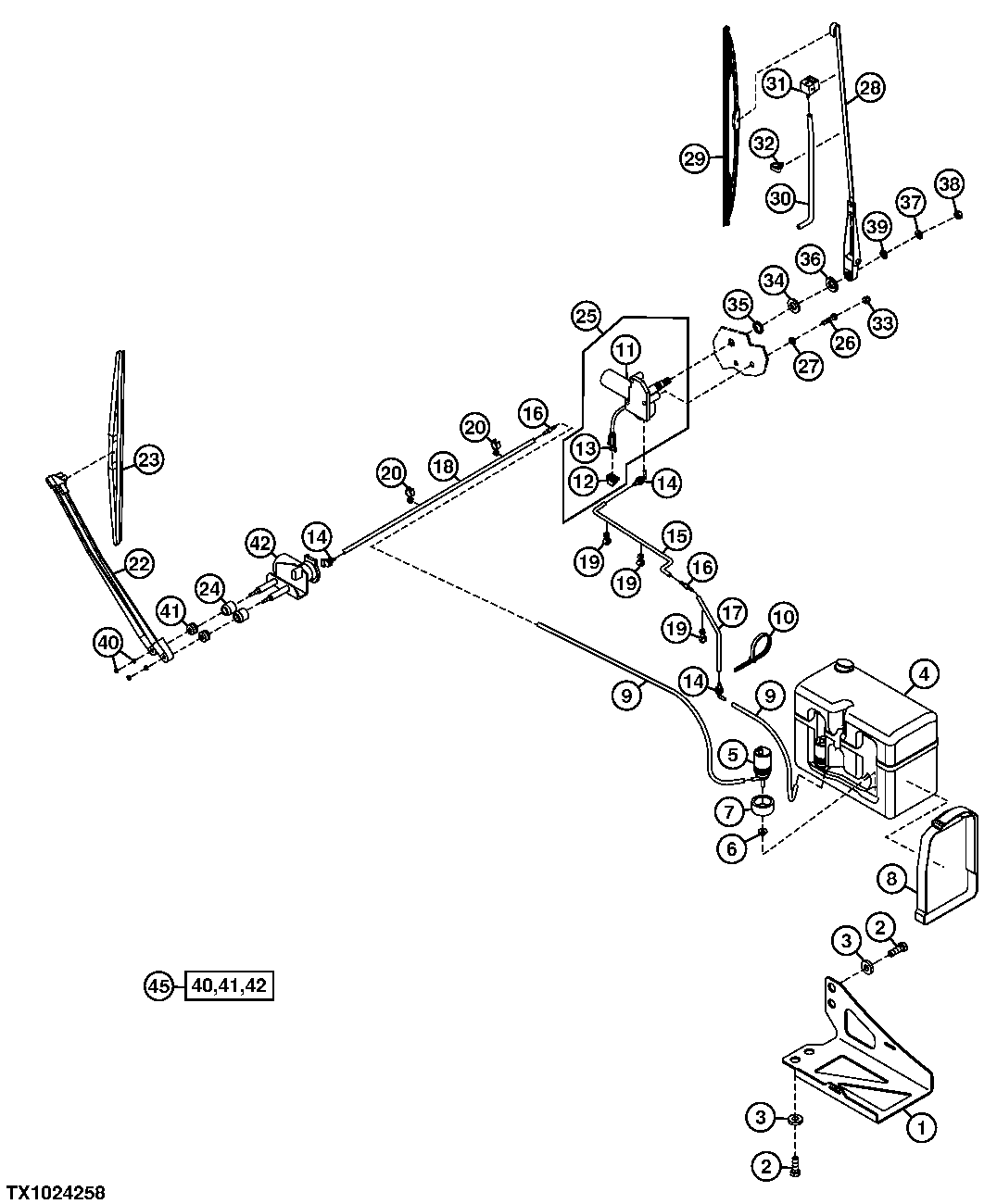

Window Washer Reservoir, Wipers, Hoses, and Fittings

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	LW9413502	1	Bracket	-
2	19M7744	4	Cap Screw	M12 X 35
3	24H1272	4	Washer	9/16" X 1-1/4" X 1/4"
4	LW10036977	1	Reservoir	-
5	LW591055408	1	Pump	-
6	LW591055508	1	Bushing	-
7	LW10036974	1	Adapter	-
8	AT309041	1	Strap With Buckle	-
9	-	1	Part 9	2.4 m, (MAKE FROM LW10306362 ) (SUB FOR AT274989 ) (CTL)
10	R44302	1	Tie Band	-
11	AT274374	1	Wiper Motor	-
12	AT311981	4	Elec. Connector Housing	-
13	AT274383	4	Plug	-
14	AT274659	3	Elbow Fitting	-
15	-	1	Part 15	0.65 m, (MAKE FROM AT218560 )
16	LW11622888	2	Valve	SUB FOR AT218545
17	-	1	Part 17	0.1 m, (MAKE FROM AT218560 ) (CTL)
19	LW10331735	3	Clip	-
20	LW10331737	3	Clip	-
22	LW10331733	1	Wiper Arm	-
23	AT275191	1	Wiper Blade	-
24	LW9412647	1	Bushing	-
25	AT275854	2	Wiper Motor	Complete
26	19M7077	1	Cap Screw	M6 X 20
27	LW10289802	2	Washer	(SUB FOR 24M7088 )
28	AT274938	2	Wiper Arm	-
29	AT274939	1	Wiper Blade	-
30	-	1	Part 28	0.5 m, (MAKE FROM LW9812377 ) (SUB FOR AT274989 ) (CTL)
31	AT275012	1	Jet	-
32	AT275184	1	Clamp	-
33	AT275175	2	Cap	-
34	24M7053	1	Washer	17 X 30 X 3 mm
35	AT275193	1	Seal	-
36	AT265098	1	Nut	-
37	AT280467	1	Spacer	-
38	AT280466	1	Nut	-
39	24M7028	1	Washer	10.500 X 20 X 2 mm
40	-	2	Part 38	-
41	-	2	Part 39	-
42	-	1	Part 40	-
45	LW10331788	1	Wiper Motor	-

Window Washer Reservoir, Wipers, Hoses, and Fittings

Нет текстового описания
