Открытый узел

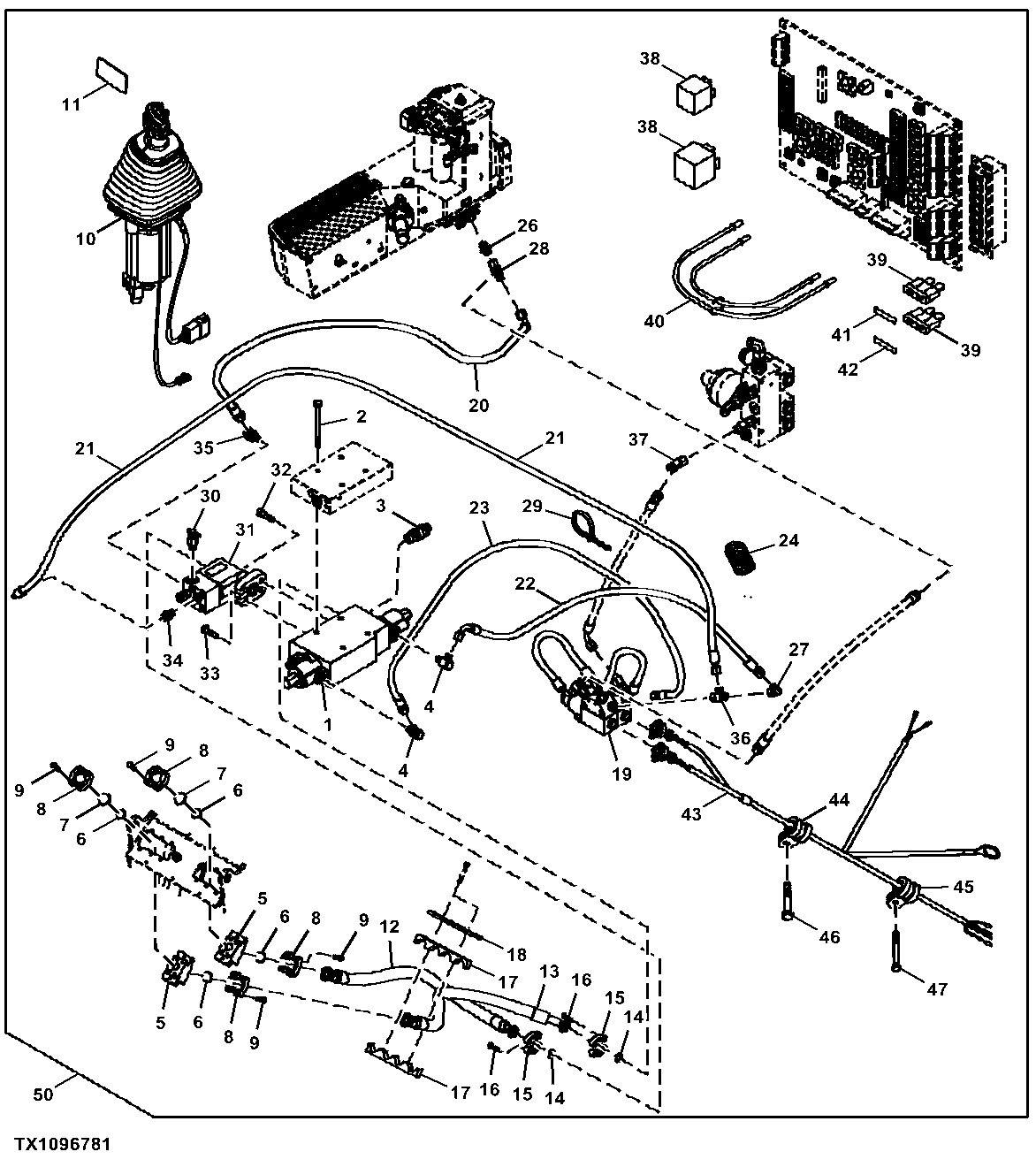

Solenoid Valves and Front Auxiliary Pilot Hoses

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	LW10218504	1	Valve	-
2	AT274281	4	Screw	-
3	LW10354953	2	Pressure Relief Valve	-
4	AT218921	2	Elbow Fitting	-
5	LW9403716	2	Junction Block	-
6	LW10490781	4	O-Ring	SUB FOR LW10290519
7	AT277868	2	Plug	-
8	LW10286360	8	Flange	-
9	19M7493	16	Cap Screw	M12 X 40
10	LW9597426	1	Multi-Functional Controller	Components On Another Page
11	AT278569	1	Label	-
12	LW10334018	1	Hydraulic Hose	Fabricate
13	LW10215860	1	Hydraulic Hose	Fabricate
14	LW10490784	2	O-Ring	SUB FOR LW10290520
15	LW10286359	4	Flange Fitting	-
16	19M7550	8	Cap Screw	M10 X 35
17	LW10115075	2	Hose Clamp	-
18	LW10115074	1	Plate	-
19	AT218853	1	Fitting	-
20	XEW10LOMDCF	1	Adapter Fitting	SUB FOR AT218871
20	51M7106	1	O-Ring	7.500 X 1.500 mm
21	XEL10LCF	1	Fitting	SUB FOR LW247242302
21	51M7106	1	O-Ring	7.500 X 1.500 mm
22	R44302	5	Tie Band	-
23	AT278424	1	Quick Coupler	-
24	AT278461	1	Hyd Actuated Control Valve	-
25	LW9413194	2	Wiring Harness	-
26	19M7550	2	Cap Screw	M10 X 35
27	PMH3827	1	Fitting	-
27	XGE10LREDCF	1	Fitting	SUB FOR AT218837
28	AT278475	1	Elbow Fitting	-
29	XEL10LCF	1	Fitting	SUB FOR LW247242302
29	51M7106	1	O-Ring	7.500 X 1.500 mm
30	XEL10LCF	1	Fitting	SUB FOR LW247242302
30	51M7106	1	O-Ring	7.500 X 1.500 mm
31	-	1	Part 36	Components On Another Page
32	LW7402479	1	Hydraulic Hose	Fabricate
33	AT278694	1	Hydraulic Hose	Fabricate
33	51M7106	2	O-Ring	7.500 X 1.500 mm
34	AT310504	1	Hydraulic Hose	-
35	LW5604477	1	Hydraulic Hose	Fabricate
36	AT306238	1	Hose Guard	0.2 m, (CTL)
37	-	1	Part 43	Components On Another Page
38	AT274439	2	Relay	-
39	57M7124	2	Fuse	-
40	LW9413191	1	Wiring Harness	-
41	LW9413192	1	Label	-
42	LW9413193	1	Label	-
43	LW9413194	1	Wiring Harness	-
44	T14264	1	Clamp	-
45	AT261231	1	Clamp	-
46	19M7164	1	Cap Screw	M8 X 50
47	LW10323492	1	Cap Screw	-
50	AT334115	1	Field Installation Kit	Whole Goods, NLA, FURNISH COMPONENTS

Solenoid Valves and Front Auxiliary Pilot Hoses

Нет текстового описания
