Solenoid Valves and Front Auxiliary Pilot Hoses

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	19M9090	1	Cap Screw	M6 X 100
3	24M7088	1	Washer	6.600 X 12 X 1.600 mm
4	14M7272	1	Nut	M6
5	AT218837	6	Fitting	-
6	XET10LOMDCF	2	Adapter Fitting	SUB FOR AT218873 AND LW482430314
6	51M7106	1	O-Ring	7.500 X 1.500 mm
7	PMH3851	2	Fitting	SUB FOR AT218833
7	PMH3827	1	Fitting	-
8	AT278440	1	Hydraulic Hose	Fabricate
8	51M7106	2	O-Ring	7.500 X 1.500 mm
9	51M7106	2	O-Ring	7.500 X 1.500 mm
9	AT278416	2	Hydraulic Hose	Fabricate, INCLUDES (2) 51M7106
10	AT276920	1	Hydraulic Hose	INCLUDES (2) 51M7106
10	51M7106	2	O-Ring	7.500 X 1.500 mm
11	AT279877	2	Solenoid Valve	-
12	AT277590	1	Solenoid Valve	-
13	AT265596	1	Housing	-
14	19M9482	4	Screw	M5 X 50, SUB FOR AT265055
15	AT265373	1	Solenoid Valve Coil	-
16	AT265687	1	Cap	-
17	AT265383	1	O-Ring Kit	-
18	51M7106	2	O-Ring	7.500 X 1.500 mm
18	LW7402479	1	Hydraulic Hose	Fabricate, INCLUDES (2) 51M7106
19	AT278694	1	Hydraulic Hose	Fabricate, INCLUDES (2) 51M7106
19	51M7106	2	O-Ring	7.500 X 1.500 mm
20	AT310504	1	Hydraulic Hose	INCLUDES (2) 51M7106
20	51M7106	2	O-Ring	7.500 X 1.500 mm
21	LW5604477	1	Hydraulic Hose	Fabricate, INCLUDES (2) 51M7106
21	51M7106	2	O-Ring	7.500 X 1.500 mm
22	-	1	Part 30	CTL 0.8M, MAKE FROM LW10306202, SUB FOR AT306238
23	R44302	5	Tie Band	-
24	XEW10LOMDCF	1	Adapter Fitting	SUB FOR AT218871
24	51M7106	1	O-Ring	7.500 X 1.500 mm
25	XEL10LCF	3	Fitting	SUB FOR AT218872 AND LW247242302
25	51M7106	1	O-Ring	7.500 X 1.500 mm
26	AT218853	1	Fitting	-
27	XGE10LREDCF	1	Fitting	SUB FOR AT218837
27	PMH3827	1	Fitting	-
28	AT278475	1	Elbow Fitting	-
29	AT218921	2	Elbow Fitting	-

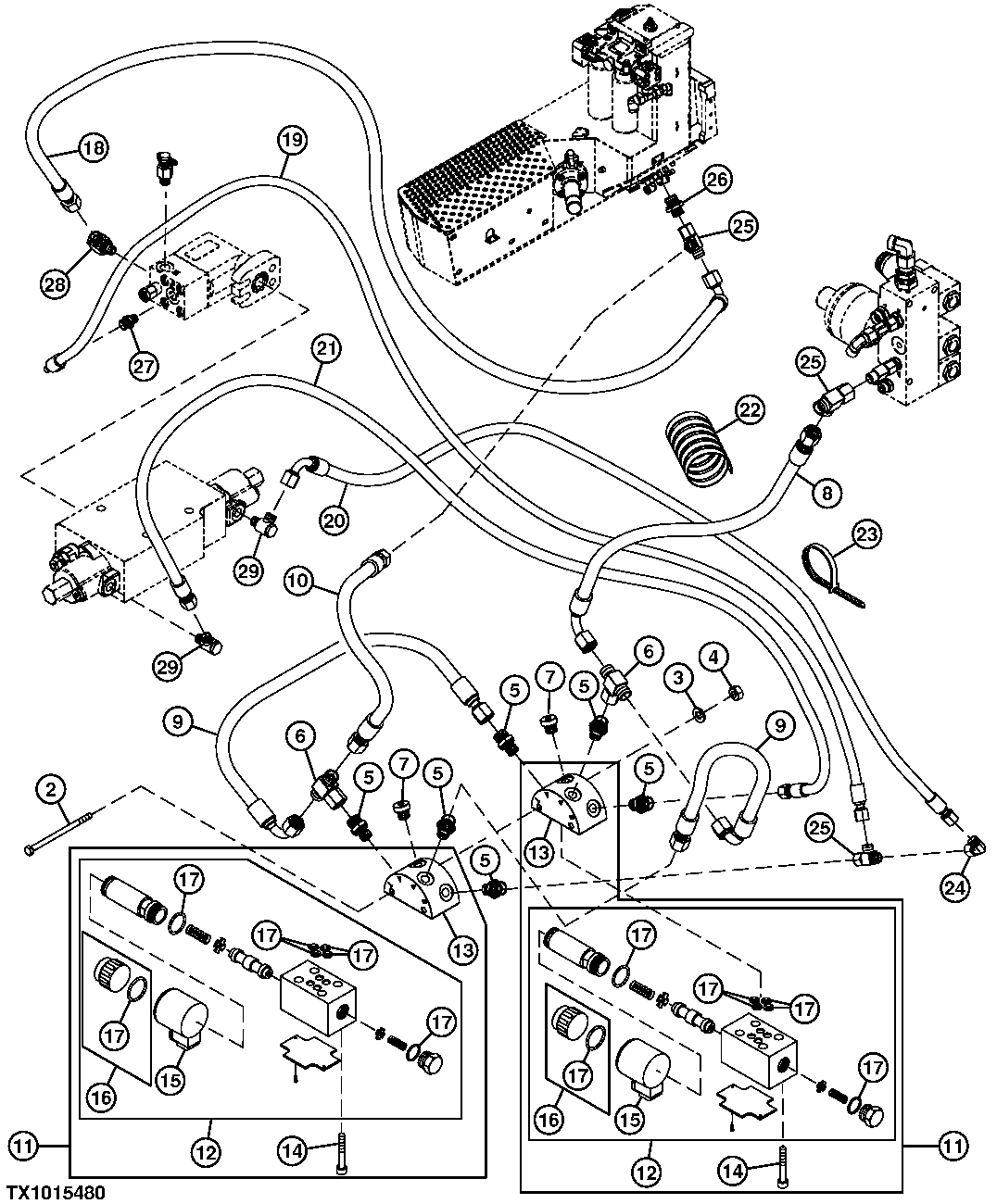

Solenoid Valves and Front Auxiliary Pilot Hoses

Нет текстового описания
