Открытый узел

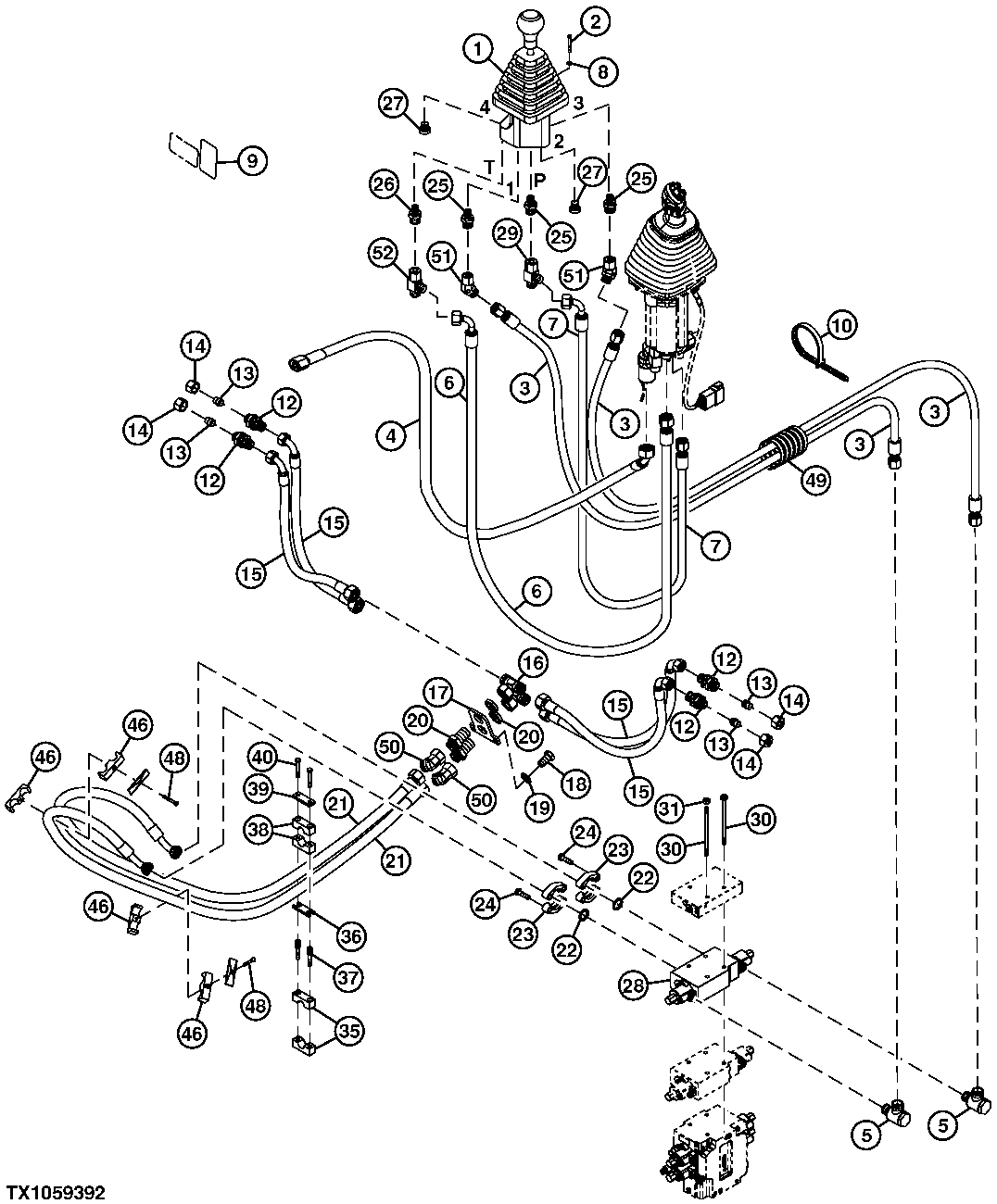

Ripper Hydraulic Control Lever and Hoses (009470 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	LW10412952	1	Hyd Actuated Control Valve	-
2	LW10424730	4	Socket Head Screw	-
2	LW10289802	4	Washer	-
3	LW10294035	2	Hydraulic Hose	Fabricate, INCLUDES (2) 51M7106
3	51M7106	2	O-Ring	7.500 X 1.500 mm
4	LW10294727	1	Hydraulic Hose	Fabricate, INCLUDES (2) 51M7107
4	LW10410336	1	Hydraulic Hose	Fabricate, INCLUDES (2) 51M7107
4	51M7107	2	O-Ring	9 X 1.500 mm
5	AT218921	2	Elbow Fitting	-
6	AT274775	1	Hydraulic Hose	INCLUDES (2) 51M7107
6	51M7107	2	O-Ring	9 X 1.500 mm
7	LW7005047	1	Hydraulic Hose	Fabricate, INCLUDES (2) 51M7106
7	51M7106	2	O-Ring	7.500 X 1.500 mm
9	AT278558	1	Label	-
10	R44302	5	Tie Band	-
12	XSV20SCF	4	Fitting	SUB FOR AT218424
13	XVKA20CF	4	Fitting	SUB FOR AT250298
13	51M7110	1	O-Ring	16.300 X 2.400 mm
14	XM20SCFX	4	Fitting	SUB FOR AT250299
15	LW10220812	4	Hydraulic Hose	INCLUDES 51M7111 AND 51M7110
15	51M7111	1	O-Ring	20.300 X 2.400 mm
15	51M7110	1	O-Ring	16.300 X 2.400 mm
16	LW7367774	2	Fitting	-
17	LW9413548	1	Bracket	-
18	19M7938	2	Cap Screw	M10 X 20
19	24M7466	2	Washer	10.500 X 20 X 2 mm, SUB FOR LW10289795 AND24M7028
20	XSV25SCF	2	Fitting	SUB FOR LW4900140
21	T59014	1	O-Ring	-
21	51M7111	1	O-Ring	20.300 X 2.400 mm
21	LW10424740	2	Hydraulic Hose	Fabricate, INCLUDES 51M7111 AND T59014
22	LW10490784	2	O-Ring	SUB FOR LW10290520
23	LW10286359	4	Flange Fitting	-
24	19M7550	8	Cap Screw	M10 X 35
25	XGE10LREDCF	3	Fitting	SUB FOR AT218837
25	PMH3827	1	Fitting	-
26	PMH3323	1	Fitting	SUB FOR AT274638
26	PMH3827	1	Fitting	-
27	PMH3851	2	Fitting	SUB FOR AT218833
27	PMH3827	1	Fitting	-
29	XEL10LCF	1	Fitting	SUB FOR AT218872 AND LW247242302
29	51M7106	1	O-Ring	7.500 X 1.500 mm
30	AT276830	4	Bolt	Use With Two Additional Functions
30	AT274281	4	Screw	Use With One Additional Function
31	14M7274	4	Nut	M10, Use With Two Additional Functions
35	LW10294486	2	Hose Clamp	-
36	LW7412143	1	Plate	-
37	LW7412140	2	Bolt	-
38	LW10294486	2	Hose Clamp	-
39	LW7401443	1	Plate	-
40	19M7328	2	Cap Screw	M10 X 70
46	AT279868	6	Half Clamp	-
48	19M7185	3	Cap Screw	M8 X 60
49	-	1	Part 53	0.2 m, MAKE FROM LW10306202 CTL, SUB FOR AT306238
50	LW10424770	2	Union Fitting	-
51	LW7027665	2	Fitting	-
52	AT274794	1	Tee Fitting	-
