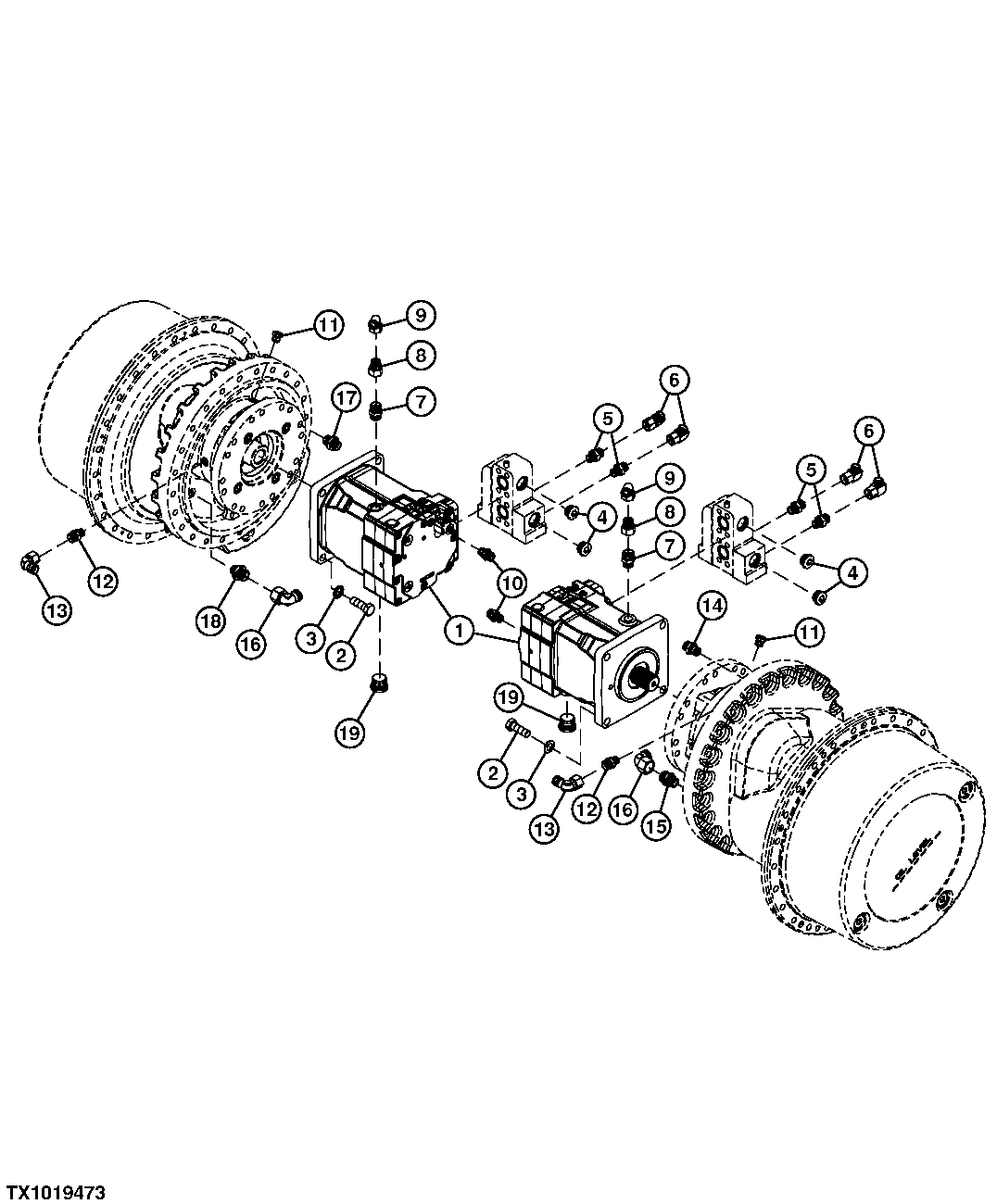

Hydrostatic Drive Motor and Fittings

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	PG200178	2	Hydraulic Motor Reman	REMAN FOR LW10287546
1	LW10429985	2	Hydraulic Motor	NLA, ORDER LW11003590
1	PG200792	2	Hydraulic Motor Reman	REMAN FOR LW10429985
1	LW11003590	2	Hydraulic Motor	-
1	PG203883	2	Hydraulic Motor Reman	REMAN FOR LW11003590
1	LW10287546	2	Hydraulic Motor	NLA, ORDER LW10429985
2	19M8224	8	Cap Screw	M20 X 60
3	24M7396	8	Washer	21 X 34 X 3 mm
4	LW10101206	4	Fitting Plug	-
5	XGE12SMEDCF	4	Elec. Connector Accessory	SUB FOR AT218464
5	PMH3829	1	Fitting	-
6	AT187604	4	Elbow Fitting	-
7	LW7414432	2	Fitting	-
8	PMH3844	2	Fitting	SUB FOR AT218900
8	51M7102	1	O-Ring	20 X 2 mm
9	51M7109	1	O-Ring	15 X 2 mm
9	XEW18LOMDCF	2	Adapter Fitting	SUB FOR AT274831 AND LW247108302
10	XGE10LMEDCF	2	Fitting	SUB FOR AT218623
10	PMH3827	1	Fitting	-
11	PMH3805	2	Fitting	SUB FOR AT218846
11	PMH3827	1	Fitting	-
12	AT277189	2	Fitting	-
13	AT274796	2	Elbow Fitting	-
14	PMH3828	1	Fitting	-
14	XGE12LMEDCF	1	Elec. Connector Accessory	SUB FOR AT274170
15	XGE15LMEDCF	1	Elec. Connector Accessory	SUB FOR AT218620
15	PMH3829	1	Fitting	-
16	XEW15LCF	2	Fitting	SUB FOR AT218893
16	51M7109	1	O-Ring	15 X 2 mm
17	PMH3588	1	Fitting	SUB FOR AT277154
17	PMH3829	1	Fitting	-
18	AT277292	1	Adapter Fitting	-
19	LW7027307	2	Fitting Plug	-

Hydrostatic Drive Motor and Fittings
