Hydraulic Oil Reservoir and Filter Elements

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

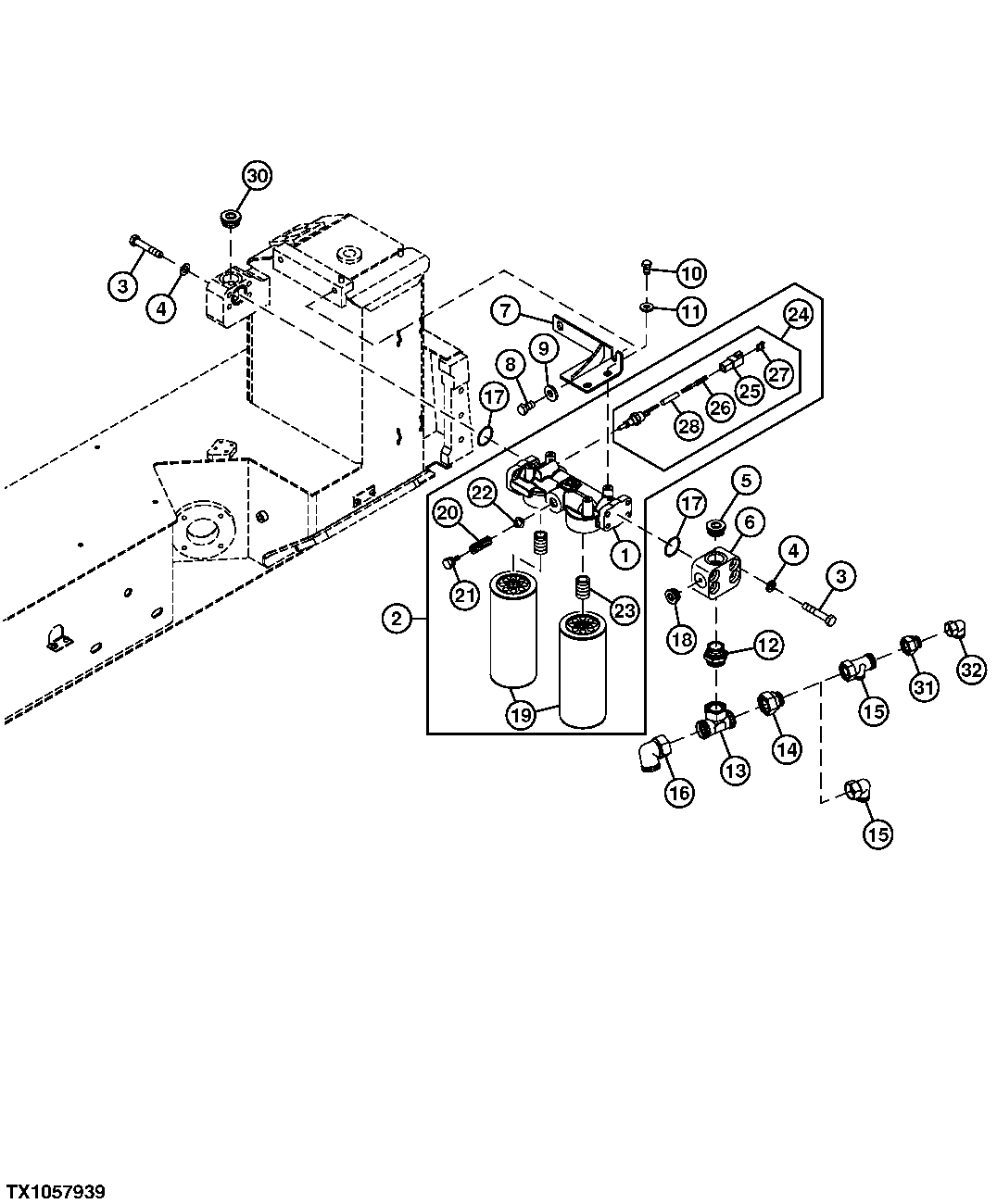

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	-
2	LW10217068	1	Filter	-
2	LW10428070	1	Filter	-
3	19M7214	8	Cap Screw	M12 X 70
4	24M7240	8	Washer	13 X 25 X 3 mm
5	LW10024974	2	Drain Plug	-
6	LW9404571	1	Junction Block	-
7	LW9415822	1	Bracket	-
8	19M7608	2	Cap Screw	M16 X 30
9	24H1367	2	Washer	21/32" X 1-1/4" X 1/4"
10	19M7166	2	Cap Screw	M10 X 20
11	24M7213	2	Washer	10.500 X 25 X 4 mm
12	XGE35LMEDCF	1	Fitting	SUB FOR AT218489
13	LW7407125	1	Fitting	-
14	PMH3850	1	Fitting	SUB FOR AT276187
14	51M7114	1	O-Ring	32 X 2.500 mm
15	AT218919	1	Elbow Fitting	-
15	XEL28LCF	1	Fitting	SUB FOR AT218885
15	51M7112	1	O-Ring	26 X 2 mm
16	XEW35LCF	1	Fitting	SUB FOR AT191811 AND LW482530914
17	B3690R	2	O-Ring	-
18	PMH3075	1	Fitting	SUB FOR AT274648
18	XED10X1X	1	Fitting	-
19	LW10217070	2	Filter Element	-
20	LW10354734	1	Spring	-
21	LW10354733	1	Cap Screw	-
22	LW10354732	1	Washer	-
23	LW10354735	2	Threaded Nipple	-
24	LW10450974	1	Pressure Switch	(SUB FOR LW9413283 )
25	AT265717	1	Elec. Connector Housing	-
26	AT274684	1	Elec. Connector Terminal	-
27	57M7621	1	Elec.Connect Locking Device	(SUB FOR AT303152)
28	-	1	Part 33	0.15 m, (MAKE FROM LW10306358 ) (SUB FOR LW7411229 ) (CTL)
30	PMH3277	1	Fitting	SUB FOR AT274654
30	XED42X2X	1	Fitting	-
31	PMH3847	1	Fitting	SUB FOR AT276361
31	51M7112	1	O-Ring	26 X 2 mm
32	XEW18LOMDCF	1	Adapter Fitting	SUB FOR AT274831 AND LW247108302
32	51M7109	1	O-Ring	15 X 2 mm
