Front and Rear Auxiliary Hydraulic Control, Hoses and Fittings

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	Components On Another Page
2	LW10424730	4	Socket Head Screw	-
3	LW10289802	4	Washer	-
4	LW10294213	2	Hydraulic Hose	Fabricate
5	AT218921	4	Elbow Fitting	-
6	AT274775	1	Hydraulic Hose	INCLUDES 51M7107
7	LW7005047	1	Hydraulic Hose	Fabricate
9	AT278558	1	Label	-
10	R44302	5	Tie Band	-
12	XSV20SCF	4	Fitting	SUB FOR AT218424
13	XVKA20CF	4	Fitting	SUB FOR AT250298
13	51M7110	1	O-Ring	16.300 X 2.400 mm
14	XM20SCFXX	4	PART MISSING IN WISE	SUB FOR AT250299
15	LW10220812	4	Hydraulic Hose	-
16	LW7367774	2	Fitting	-
17	LW9413548	1	Bracket	-
18	19M7166	2	Cap Screw	M10 X 20
19	24M7466	2	Washer	10.500 X 20 X 2 mm, SUB FOR LW10289795
20	XSV25SCF	2	Fitting	SUB FOR LW4900140
21	LW10424740	2	Hydraulic Hose	Fabricate, INCLUDES 51M7111 AND T59014
22	LW10490784	5	O-Ring	SUB FOR LW10290520
23	LW10286359	8	Flange Fitting	-
24	19M7550	16	Cap Screw	M10 X 35
25	LW10424770	2	Union Fitting	-
28	LW10218504	2	Valve	Components On Another Page
29	AT276830	4	Bolt	-
30	14M7274	4	Nut	M10
31	AT279868	6	Half Clamp	-
32	AT218631	3	Plate	-
33	19M7185	3	Cap Screw	M8 X 60
34	LW10354953	2	Pressure Relief Valve	-
40	-	1	Part 32	Components On Another Page
41	AT278569	1	Label	-
80	AT338235	1	Field Installation Kit	Whole Goods, NLA, FURNISH COMPONENTS

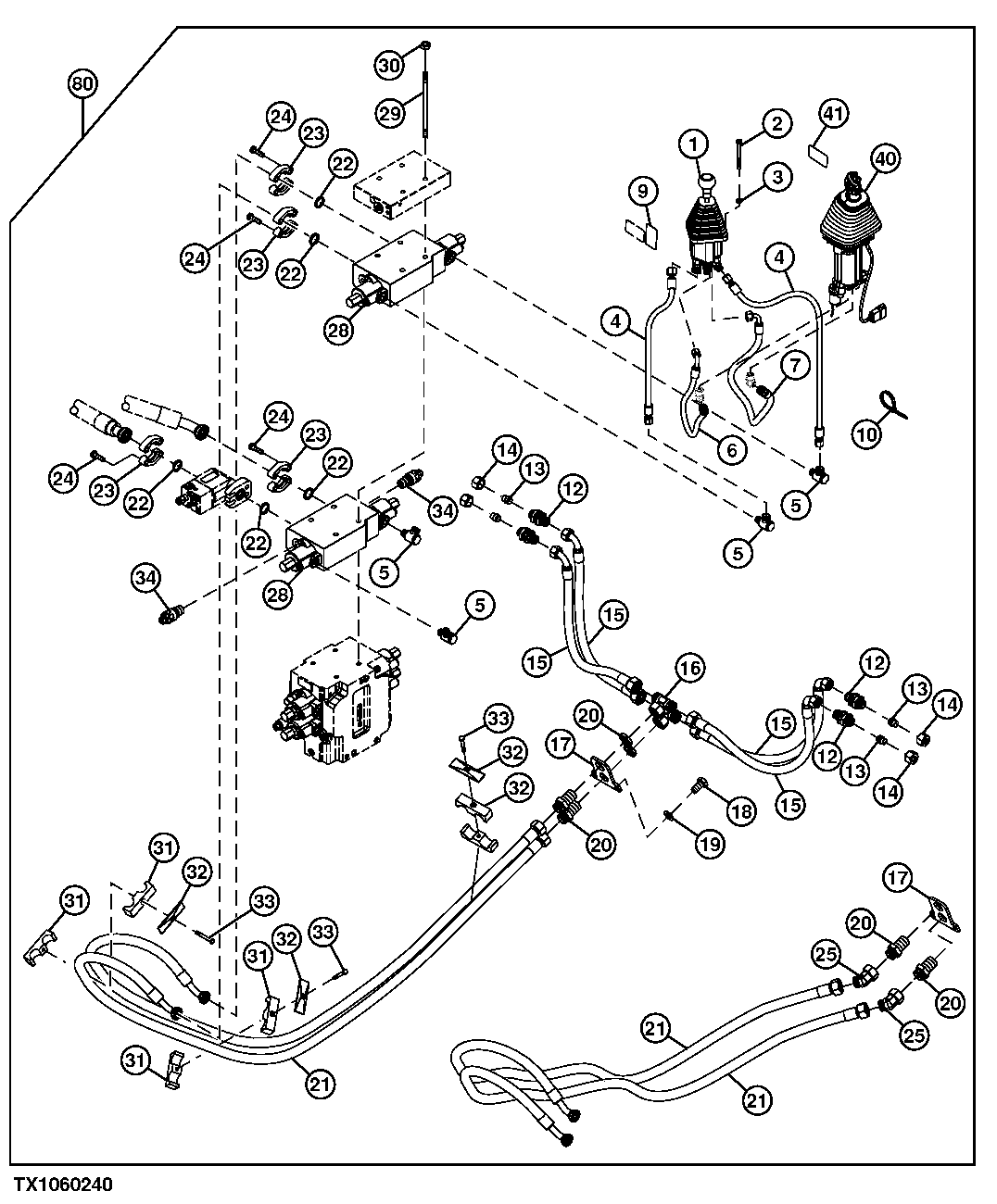

Front and Rear Auxiliary Hydraulic Control, Hoses and Fittings
