Front and Rear Auxiliary Hydraulic Control, Hoses and Fittings (009740 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
35	LW9403716	2	Junction Block	-
36	LW10490781	4	O-Ring	SUB FOR LW10290519
37	AT277868	2	Plug	-
38	AT325534	8	Flange	-
39	19M7493	16	Cap Screw	M12 X 40
42	LW10334018	1	Hydraulic Hose	Fabricate
43	LW10215860	1	Hydraulic Hose	Fabricate
44	LW10115075	2	Hose Clamp	-
45	LW10115074	1	Plate	-
46	AT218853	1	Fitting	-
47	XEW10LOMDCF	1	Adapter Fitting	SUB FOR AT218871
47	51M7106	1	O-Ring	7.500 X 1.500 mm
48	XEL10LCF	1	Fitting	SUB FOR LW247242302
48	51M7106	1	O-Ring	7.500 X 1.500 mm
49	AT278424	1	Quick Coupler	-
50	AT278461	1	Hyd Actuated Control Valve	-
51	19M8447	2	Screw	M10 X 35
52	19M7550	2	Cap Screw	M10 X 35
53	PMH3827	1	Fitting	-
53	XGE10LREDCF	1	Fitting	SUB FOR AT218837
54	AT278475	1	Elbow Fitting	-
55	XEL10LCF	1	Fitting	SUB FOR LW247242302
55	51M7106	1	O-Ring	7.500 X 1.500 mm
56	XEL10LCF	1	Fitting	SUB FOR LW247242302
56	51M7106	1	O-Ring	7.500 X 1.500 mm
57	-	1	Part 26	Components On Another Page
58	LW7402479	1	Hydraulic Hose	Fabricate
59	AT278694	1	Hydraulic Hose	Fabricate
59	51M7106	2	O-Ring	7.500 X 1.500 mm
60	AT310504	1	Hydraulic Hose	-
61	LW5604477	1	Hydraulic Hose	Fabricate
62	LW10306202	1	Hose Guard	0.2 m, (CTL)
63	-	1	Part 33	Components On Another Page
64	-	1	Part 34	Components On Another Page
80	AT338235	1	Field Installation Kit	Whole Goods, NLA, FURNISH COMPONENTS

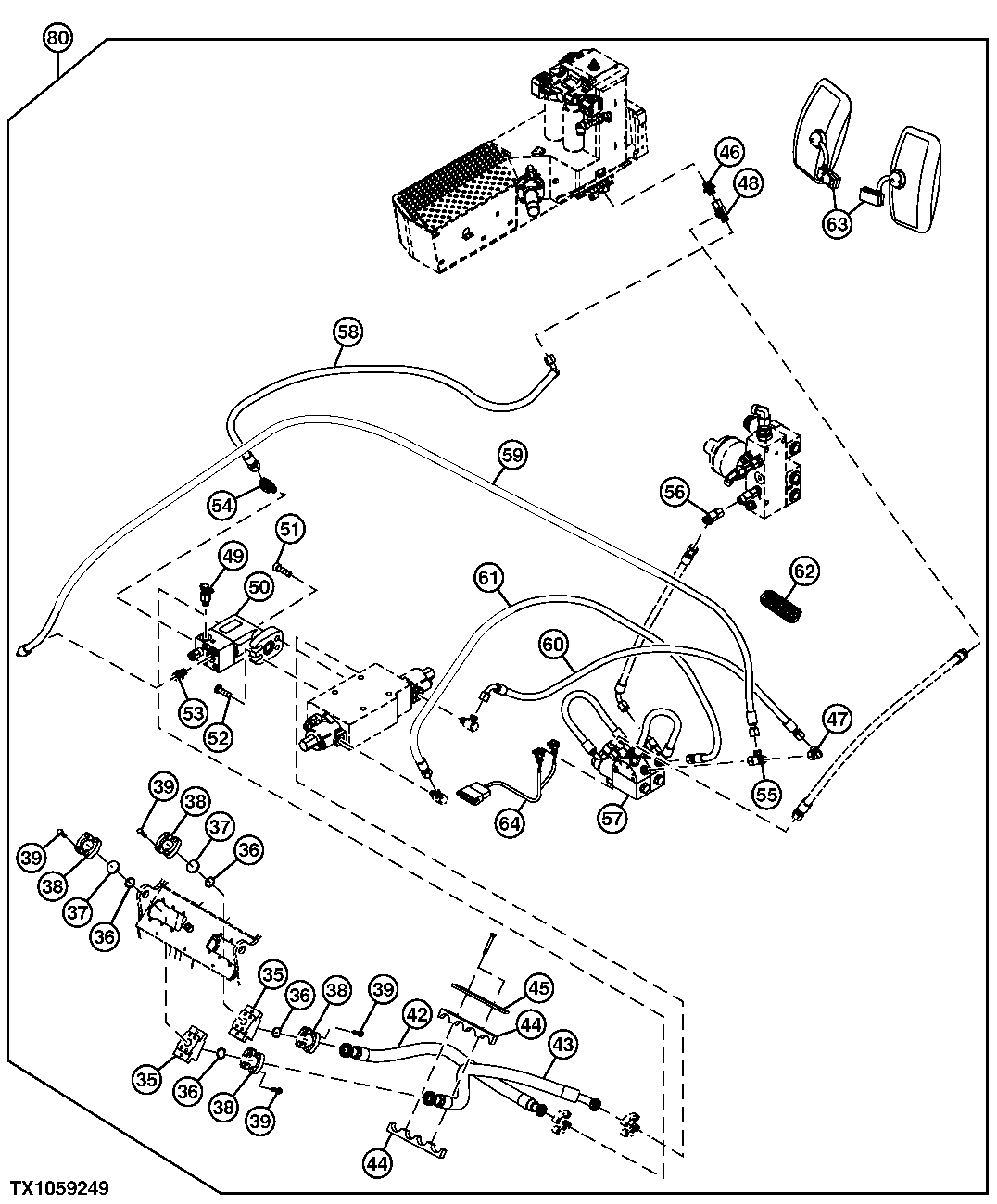

Front and Rear Auxiliary Hydraulic Control, Hoses and Fittings (009740 - )
