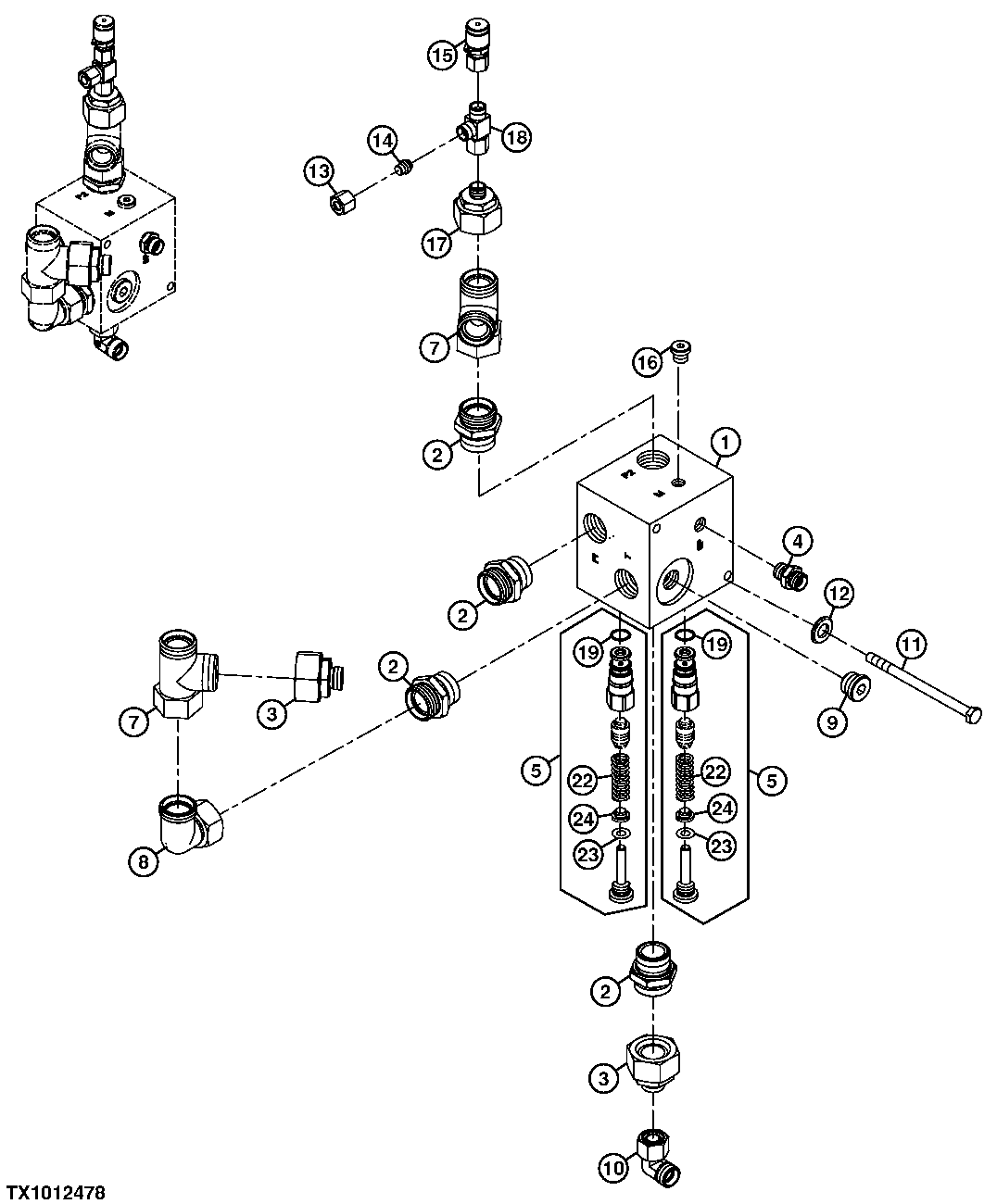

Charge Oil Pressure Regulating Manifold

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	LW9813669	1	Manifold	-
2	AT218622	4	Fitting	-
3	AT218909	2	Reducer	-
3	AT218909	1	Reducer	-
4	XGE12LMEDCF	1	Elec. Connector Accessory	SUB FOR AT274170
4	PMH3828	1	Fitting	-
5	AT277469	2	Orifice	-
7	XEL28LCF	2	Fitting	SUB FOR AT218885
7	XEL28LCF	1	Fitting	SUB FOR AT218885
7	51M7112	1	O-Ring	26 X 2 mm
8	XEW28LCF	1	Fitting	SUB FOR AT218919
8	51M7112	1	O-Ring	26 X 2 mm
9	PMH3083	1	Fitting	SUB FOR AT250332
9	PMH3830	1	Fitting	-
10	XEW15LCF	1	Fitting	SUB FOR AT261740 AND AT218893
10	51M7109	1	O-Ring	15 X 2 mm
11	AT274052	2	Screw	-
12	24M7055	2	Washer	8.400 X 16 X 1.600 mm
13	XM10LCFX	1	Fitting	SUB FOR AT261739
14	XET15LCF	1	Fitting	SUB FOR AT261740
14	51M7106	1	O-Ring	7.500 X 1.500 mm
15	LW7406864	1	Fitting	-
16	PMH3805	1	Fitting	SUB FOR AT218846
16	PMH3827	1	Fitting	-
17	PMH3846	1	Fitting	SUB FOR AT264912
17	51M7112	1	O-Ring	26 X 2 mm
18	XEL10LCF	1	Fitting	SUB FOR AT218872 AND LW247242302
18	51M7106	1	O-Ring	7.500 X 1.500 mm
19	LW7380577	1	O-Ring	SUB FOR AT277072
22	AT324041	1	Compression Spring	-
23	LW4980679	1	Shim	6 X 12 X 0.2 mm
23	AT323298	1	Shim	6 X 12 X 0.5 mm
24	LW10286583	1	Plate	SUB FOR AT323299

Charge Oil Pressure Regulating Manifold
