Bucket Cylinder, Oil Lines and Clamps

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT276587	2	Oil Line	-
2	LW10490781	2	O-Ring	SUB FOR LW10290519
3	19M7943	8	Cap Screw	M12 X 90
7	AT276586	1	Bracket	-
10	LW9589903	1	Hydraulic Cylinder	-
12	AT276589	2	Bracket	-
13	AT276588	2	U-Bolt	-
14	14M7166	4	Lock Nut	M8
15	AT276185	4	Clamp	-
16	LW7401443	2	Plate	-
17	19M7479	2	Cap Screw	M10 X 80
18	19M8183	2	Cap Screw	M10 X 90
20	AT276590	1	Plate	-
25	AT275211	2	Cap	-
31	LW9409208	1	Block Clamp	-
32	AT276568	1	Clamp	-
33	LW9402129	1	Strip	-
37	19M8485	4	Cap Screw	M16 X 90
38	24H1380	1	Washer	11/16" X 1-3/4" X 0.194"
39	19M7488	1	Cap Screw	M16 X 40
41	AT276481	2	Pin Fastener	-
44	AT264638	2	Cap Screw	-
45	24H1380	2	Washer	11/16" X 1-3/4" X 0.194"
60	LW10675478	2	Hydraulic Hose	Fabricate, (INCLUDES (2) T78313 ) (SUB FOR LW7414680 )
60	T78313	2	O-Ring	-
61	LW10490781	4	O-Ring	SUB FOR LW10290519
62	LW10286360	8	Flange	-
63	19M7493	16	Cap Screw	M12 X 40
64	LW9403847	1	Switch	-
65	LW9403849	1	Switch	-
66	AT265068	8	Socket Head Screw	-
67	AT266107	2	Elec. Connector Terminal	-
68	LW7368243	2	Wedge	-
69	LW9403848	1	Wiring Harness	-
70	AT266114	1	Switch	Bucket Positioner, NLA; ORDER LW9403847
71	AT316614	2	Adapter Fitting	-
72	-	1	Part 37	2.2 m, (MAKE FROM LW10306117 ) (SUB FOR AT316616 ) (CTL)
73	LW9403850	1	Wiring Harness	-
74	AT266114	1	Switch	NLA; ORDER LW9403849
75	AT316614	2	Adapter Fitting	-
76	-	1	Part 41	0.44 m, (MAKE FROM LW10306116 ) (SUB FOR AT316616) (CTL)

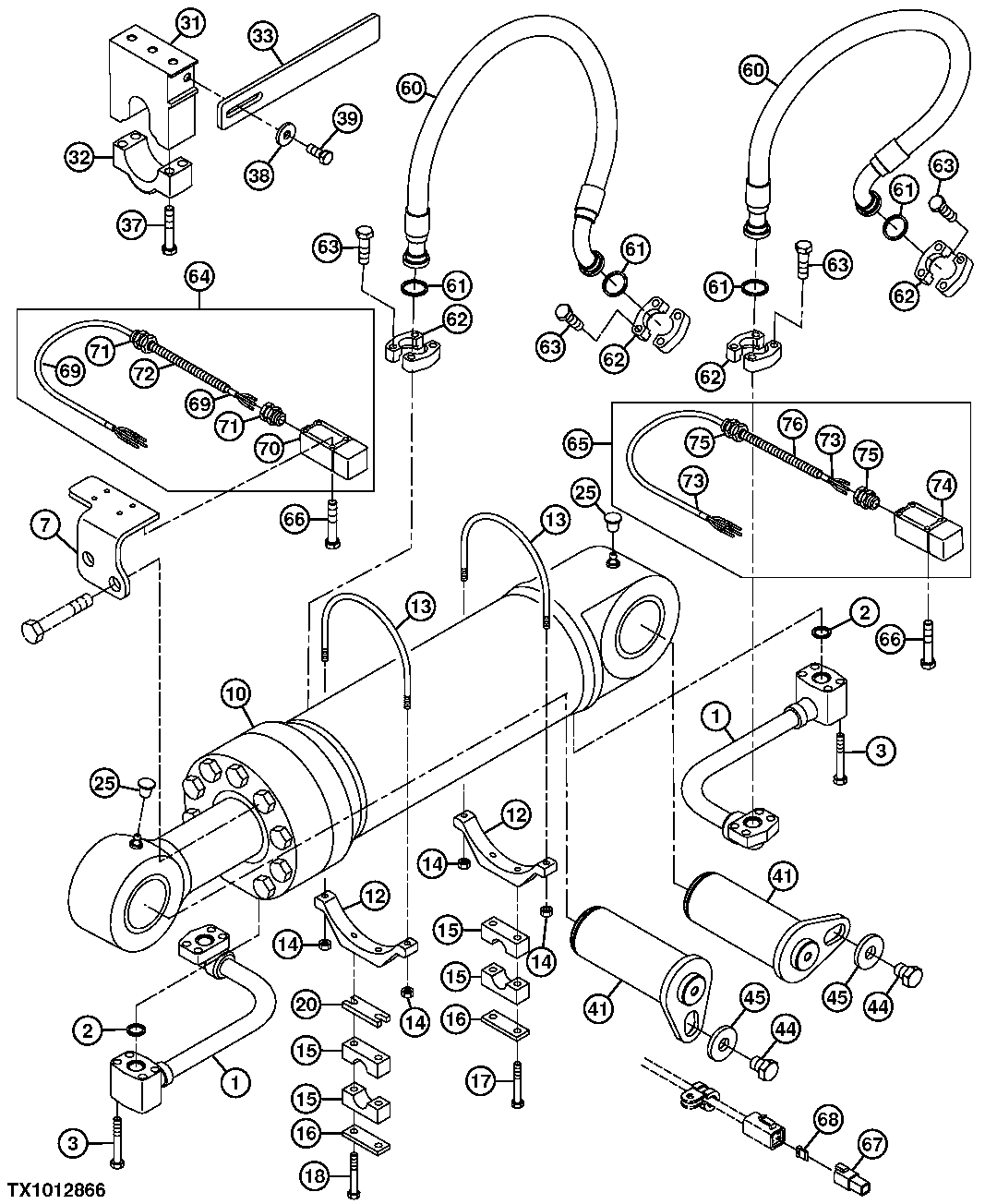

Bucket Cylinder, Oil Lines and Clamps
