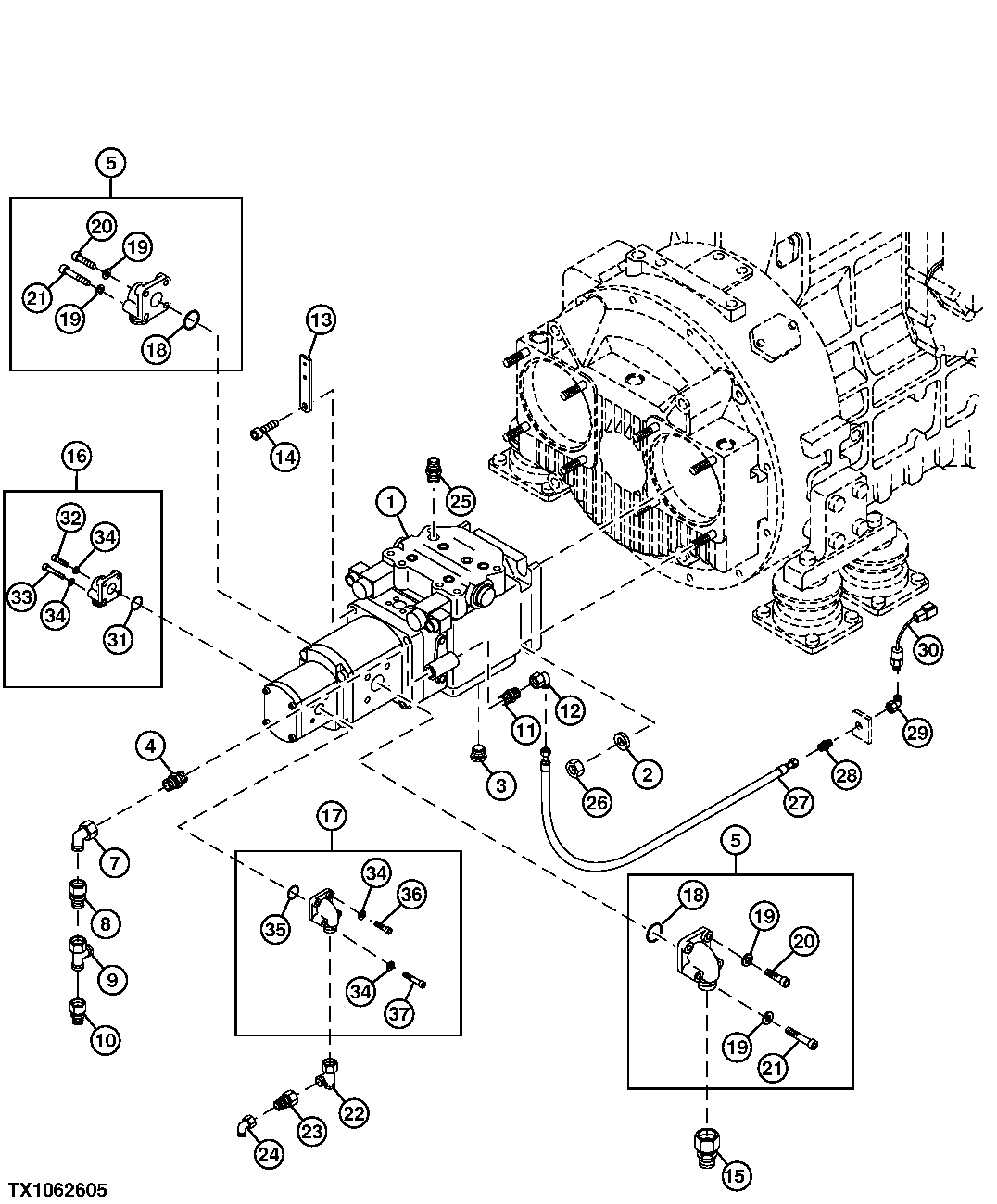

LH, Hydrostatic Pump with Transmission Charge Pump, Series II (006200 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	PG200169	1	Hydraulic Pump Reman	REMAN FOR AT321534, SUB FOR AT266126, LEFT
1	AT321534	1	Hydraulic Pump	NLA, ORDER PG200169
1	PG200170	1	Hydraulic Pump Reman	REMAN FOR AT321538, SUB FOR AT266125, RIGHT
1	AT321538	1	Hydraulic Pump	NLA, ORDER PG200170
2	AT275262	4	Washer	-
3	AT250332	1	Fitting Plug	SUB FOR AT250332
4	XEGE18LMEDCF	1	Fitting	SUB FOR AT276363
4	51M7109	1	O-Ring	15 X 2 mm
5	LW7026656	2	Coupling	SUB FOR AT274772
7	XEW18LOMDCF	1	Adapter Fitting	SUB FOR AT274831 AND LW247108302
7	51M7109	1	O-Ring	15 X 2 mm
8	PMH3847	1	Fitting	SUB FOR AT276361
8	51M7112	1	O-Ring	26 X 2 mm
9	XT28LCF	1	Fitting	SUB FOR AT276183
10	PMH3848	1	Fitting	SUB FOR AT218901
10	51M7112	1	O-Ring	26 X 2 mm
11	XGE10LMEDCF	1	Fitting	SUB FOR AT218623
12	XEW10LOMDCF	1	Adapter Fitting	SUB FOR AT218871
12	51M7106	1	O-Ring	7.500 X 1.500 mm
13	AT275652	2	Link	-
14	19M9233	2	Screw	M10 X 40
15	PMH3850	1	Fitting	SUB FOR AT276187
15	51M7114	1	O-Ring	32 X 2.500 mm
16	AT274812	1	Fitting	-
17	AT265376	1	Fitting	-
18	51M7114	2	O-Ring	32 X 2.500 mm, SUB FOR AT320754 AND AT274538
19	LW10289803	8	Washer	SUB FOR 24M7055, THIS APPLICATION
20	19M9738	4	Screw	M8 X 25, SUB FOR AT274141
21	19M8658	4	Screw	M8 X 60
22	XEL15LCF	1	Fitting	SUB FOR AT218875 AND LW472300414
22	51M7109	1	O-Ring	15 X 2 mm
23	PMH3838	1	Fitting	SUB FOR AT218902
23	51M7109	1	O-Ring	15 X 2 mm
24	XEW10LOMDCF	1	Adapter Fitting	SUB FOR AT218871
24	51M7106	1	O-Ring	7.500 X 1.500 mm
25	XGE18LMEDCF	1	Fitting	SUB FOR AT274522
26	14M7276	4	Nut	M16
27	AT266080	1	Hydraulic Hose	Fabricate, INCLUDES (2) 51M7106
28	XSV10LCF	1	Union Fitting	SUB FOR AT266081
29	AT265713	1	Elbow Fitting	-
30	AT275694	1	Pressure Switch	-
31	AT250327	1	O-Ring	-
32	19M7603	2	Screw	M6 X 20
33	19M8265	2	Screw	M6 X 50
34	LW10289802	8	Washer	-
35	AT250338	1	O-Ring	-
36	AT274207	2	Socket Head Screw	-
37	AT266572	2	Cap Screw	-
