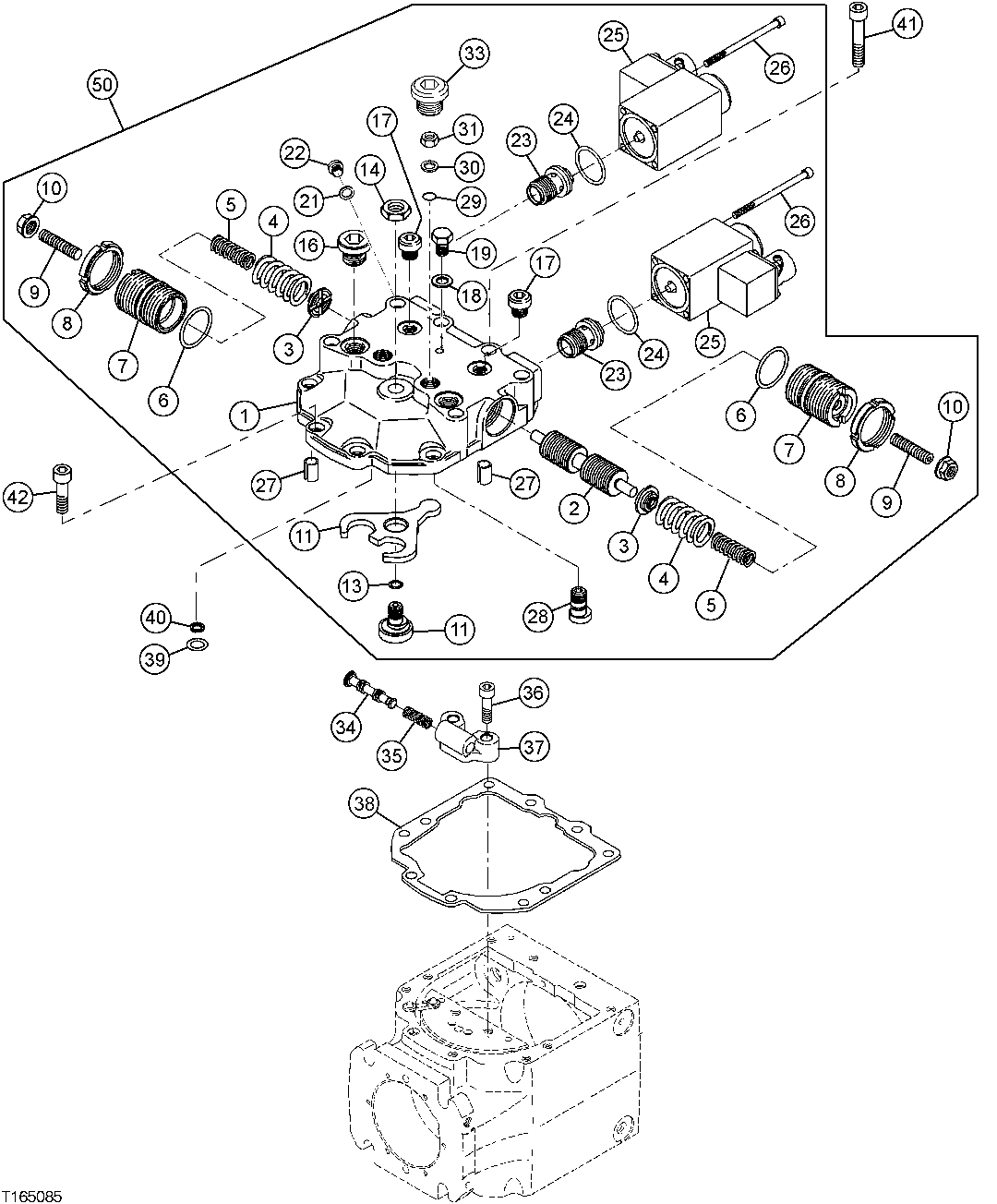

HYDROSTATIC DRIVE PUMP TOP COVER CONTROLS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 2	SUB FOR AT266147; SERVICE WITH ASSEMBLY AT266147; PROPORTIONAL SOLENOID
1	-	1	Part 1	SUB FOR AT266149; SERVICE WITH ASSEMBLY AT318311; PROPORTIONAL SOLENOID
2	AT266042	1	Piston	-
3	AT277214	1	Seat	-
3	AT277259	1	Seat	-
4	AT266043	2	Spring	-
5	AT266044	2	Spring	-
6	AT274540	2	O-Ring	-
7	AT266211	2	Adapter Fitting	-
8	AT277152	2	Nut	-
9	22M7170	2	Set Screw	M8 X 35, SUB FOR AT266046
10	AT218834	2	Nut	-
11	AT266047	1	Lever	SUB FOR AT266150
11	AT266048	1	Pin	-
11	AT308661	1	Lever	-
13	AT274539	1	O-Ring	-
14	14M7158	1	Nut	M16, SUB FOR AT274094
16	PMH3083	1	Fitting	SUB FOR AT250332
16	PMH3830	1	Fitting	-
17	AT265114	2	Plug	-
18	AT275977	1	Seal	-
19	19M7300	1	Cap Screw	M6 X 10
20	AT266205	2	Plug	-
21	AT276136	1	Seal	-
22	AT266206	1	Plug	-
23	AT276294	2	Valve	-
24	AT274541	2	O-Ring	-
25	AT274930	2	Solenoid	-
26	LW6002985	8	Electrical Connector Assy	SUB FOR AT274196
27	AT274047	2	Spring Pin	-
28	AT266207	2	Pin	-
29	AT266208	2	Snap Ring	-
30	LW10289803	2	Washer	SUB FOR 24M7055, THIS APPLICATION
31	14M7273	2	Nut	M8
33	AT266209	2	Plug	-
34	AT277042	1	Piston	-
35	AT266039	1	Spring	-
36	AT277215	2	Screw	-
37	AT266038	1	Housing	-
38	AT266148	1	Gasket	-
39	AT266034	1	O-Ring	-
40	AT316502	1	Washer	SUB FOR AT277188
40	AT316501	1	Washer	SUB FOR AT277188
41	19M9240	6	Screw	M10 X 50, SUB FOR AT266035
42	19M8881	4	Screw	M10 X 30, SUB FOR AT274252
50	AT266147	1	Cover	-

HYDROSTATIC DRIVE PUMP TOP COVER CONTROLS
