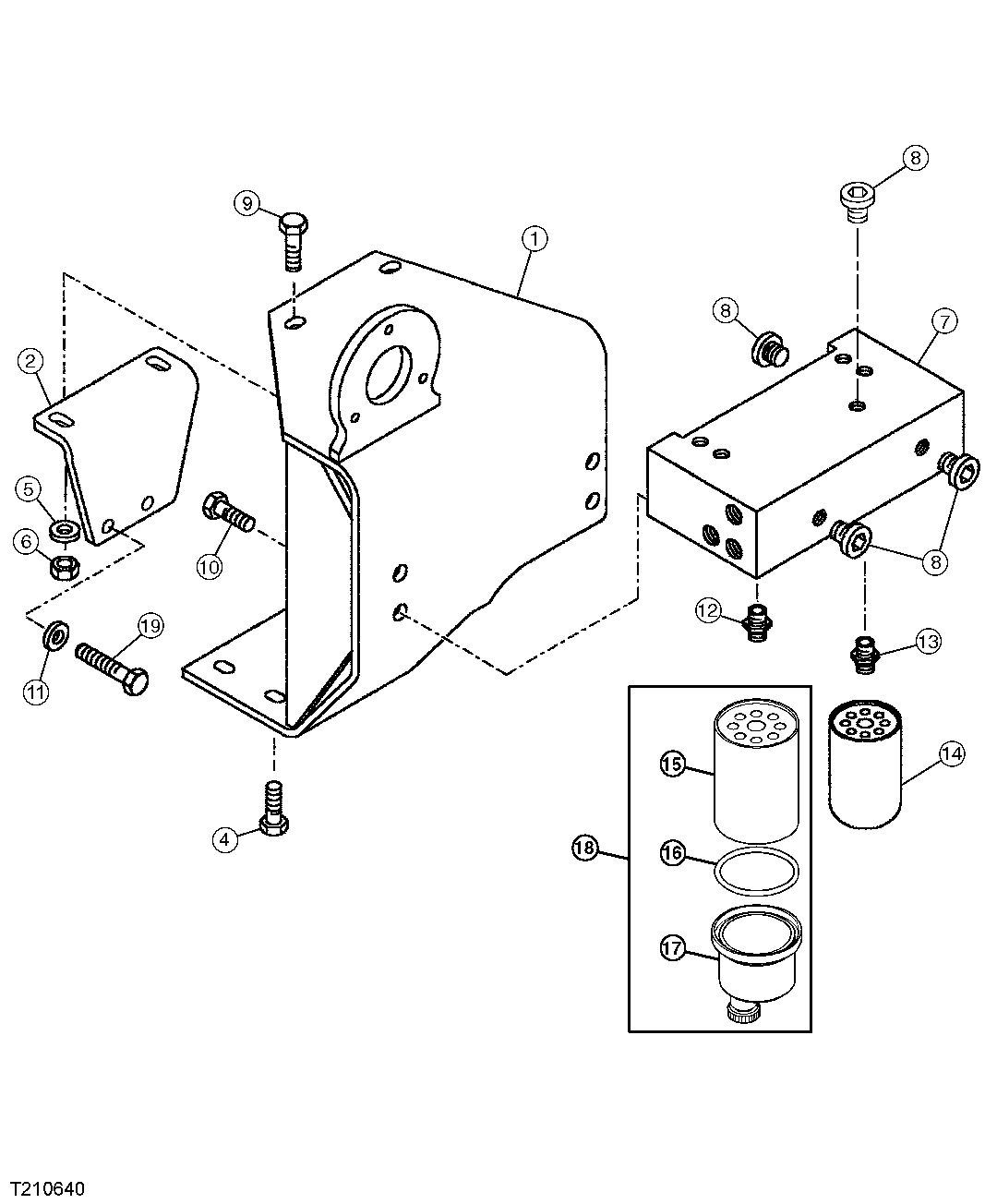

FUEL FILTER, FILTER BRACKET, FILTER HEADER AND FILTER ELEMENTS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT265303	1	Bracket	-
2	AT318314	1	Plate	SUB FOR AT279819
4	19M9261	4	Screw	M8 X 20
5	24H1621	2	Washer	11/32" X 1" X 0.220"
6	14M7273	2	Nut	M8
7	AT300264	1	Manifold	SUB FOR AT279821, FUEL FILTER HEAD
7	AT266653	1	Filter Head	-
8	PMH3803	3	Fitting	One On Each Side and One On Top, SUB FOR AT274719
8	PMH3803	3	Fitting	One On Back and 2 On Front Side, SUB FOR AT274719
8	XED10X1VITX	1	Seal	-
9	19M9569	2	Screw	M8 X 25
10	19M7786	4	Screw	M10 X 30
11	12M5442	2	Washer	8.400 X 15 X 0.800 mm
12	AT279822	1	Adapter Fitting	-
12	AT279823	1	Adapter Fitting	-
13	AT279823	1	Adapter Fitting	-
14	AT279824	1	Fuel Filter	SECONDARY
14	AT279824	2	Fuel Filter	-
15	AT279826	1	Filter Element	-
16	-	1	Part 20	INCLUDED WITH AT279826
17	AT279827	1	Base	WATER SEPARATOR
17	AT279828	1	O-Ring	FOR BOTTOM CAP, NOT ILLUSTRATED
18	AT279825	1	Fuel Filter	PRIMARY
19	19M7165	2	Cap Screw	M8 X 55, SUB FOR AT279820

FUEL FILTER, FILTER BRACKET, FILTER HEADER AND FILTER ELEMENTS
