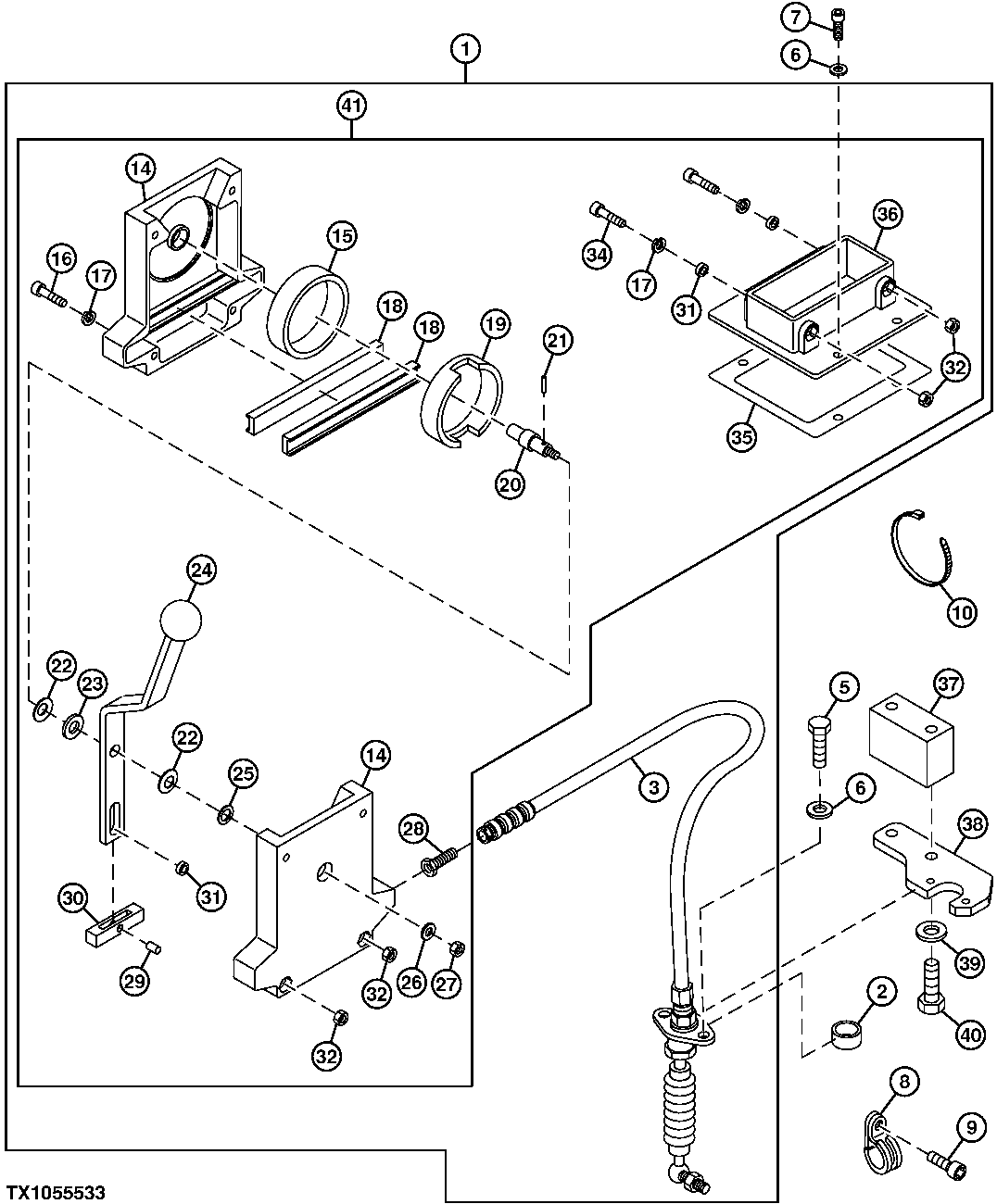

Engine Speed Control Cable, Housing And Control Lever

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT279841	1	Push Pull Cable	-
2	AT275260	1	Sleeve	-
3	AT279840	1	Cable	COMPONENTS ON ANOTHER PAGE
5	19M8425	2	Cap Screw	M6 X 16, SUB FOR 19M7560
6	LW10289802	6	Washer	This Application, SUB FOR 24M7088
7	19M7077	4	Cap Screw	M6 X 20
8	AT274717	1	Clamp	SUB FOR AT276145
9	AT274267	1	Socket Head Screw	-
10	T111126	4	Clamp	-
14	AT276231	2	Engine Controller	SUB FOR AT276232 AND AT265196
15	AT265192	1	Bushing	-
16	AT276020	2	Socket Head Screw	-
17	AT275991	4	Spring Washer	-
18	AT276233	2	Guide	-
19	AT276235	1	Bushing	-
20	AT265193	1	Pin	-
21	AT265194	1	Spring Pin	-
22	AT276027	2	Spring	-
23	24M7466	1	Washer	10.500 X 20 X 2 mm, This Application, SUB FOR LW10289795
24	AT265197	1	Control Lever	-
25	AT265195	1	Shim	-
26	LW10289802	1	Washer	This Application, SUB FOR 24M7088
27	14M7528	1	Lock Nut	M6
28	AT276242	1	Fitting	-
29	AT276025	1	Pin	-
30	AT276234	1	Bracket	-
31	AT276241	1	Spacer	-
32	14M7272	4	Nut	M6
34	AT276022	2	Socket Head Screw	-
35	AT276240	1	Gasket	-
36	AT276239	1	Frame	-
37	AT279842	1	Manifold	-
38	AT309784	1	Bracket	-
39	LW10289803	2	Washer	SUB FOR 24M7055, THIS APPLICATION
40	19M7663	2	Cap Screw	M8 X 70
41	-	1	Part 36	-

Engine Speed Control Cable, Housing And Control Lever

Нет текстового описания
